HOTEL T-post
DFVBD-M-T (GTIN 4250912314436)
HOTEL T-post
Description

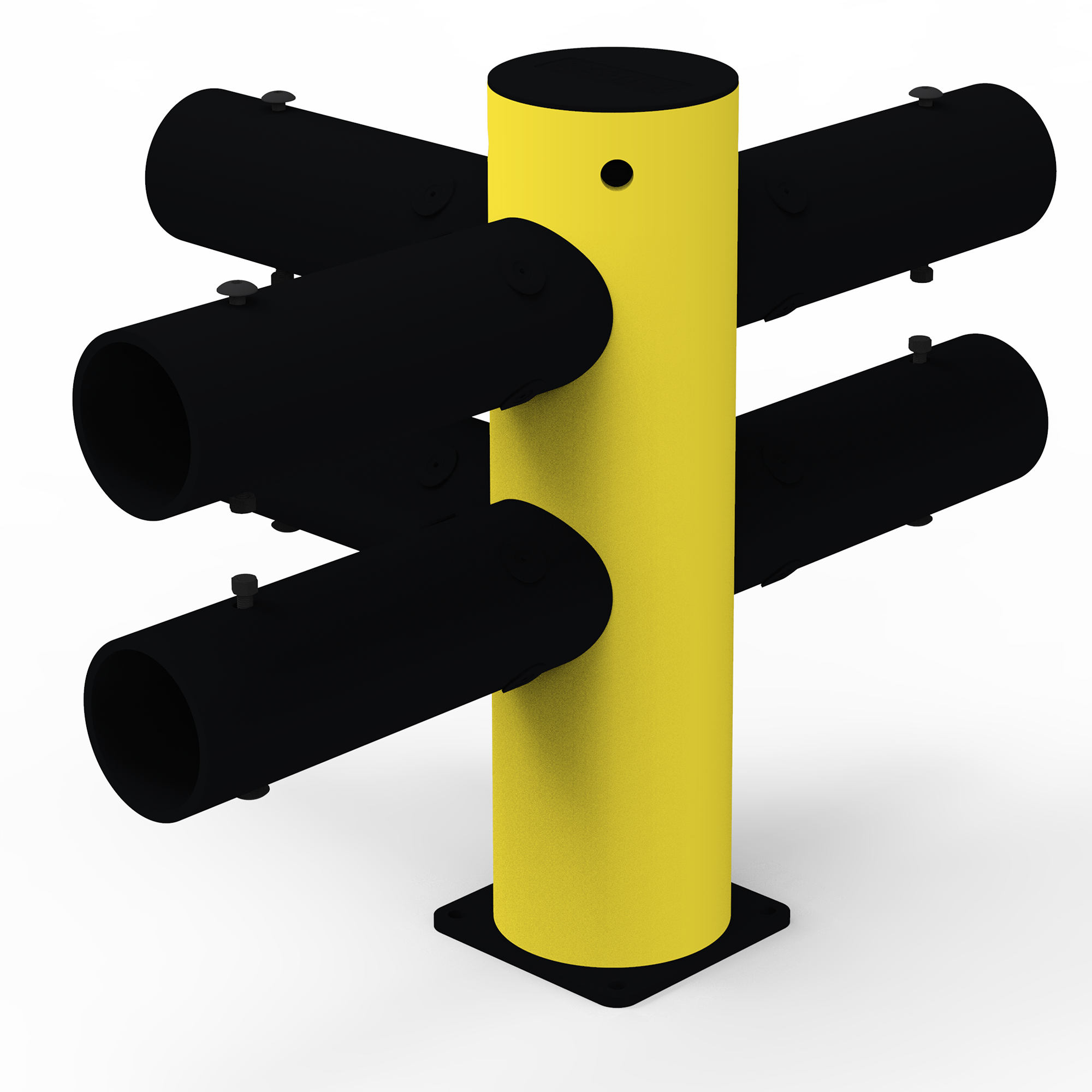

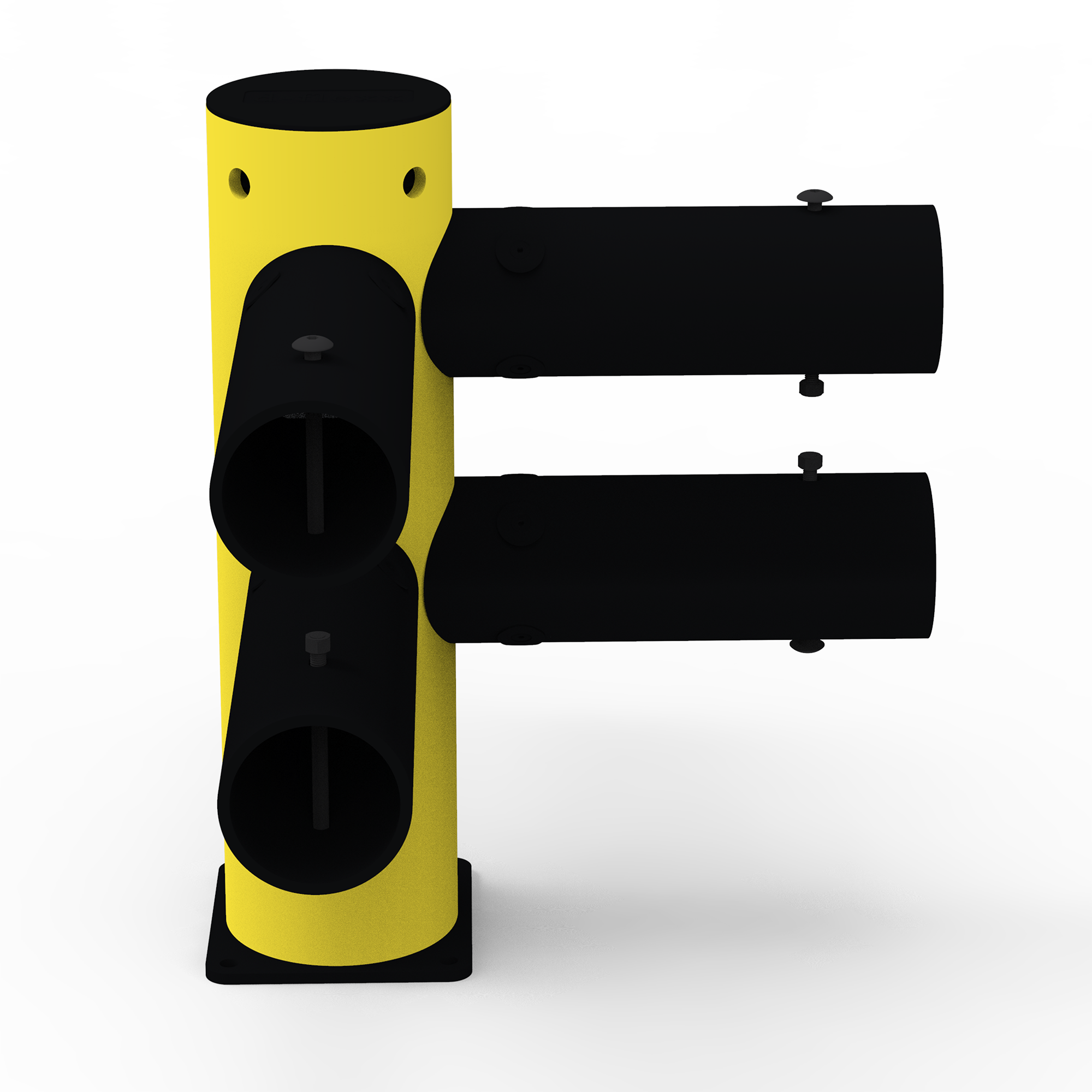

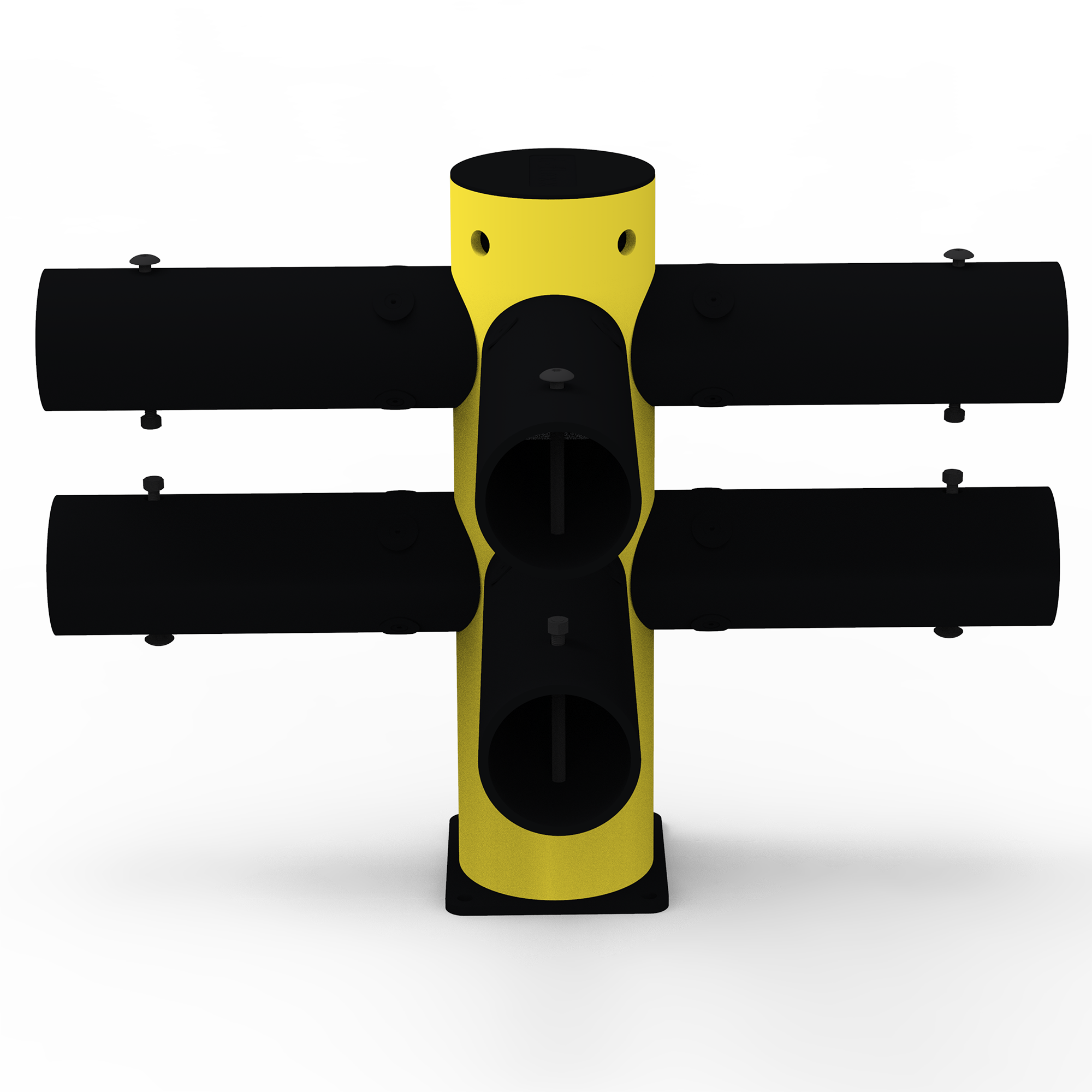

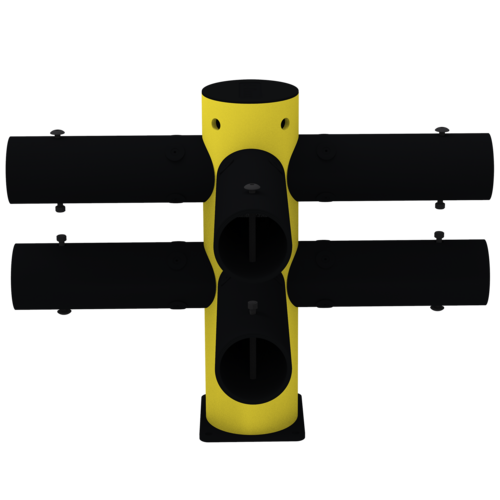

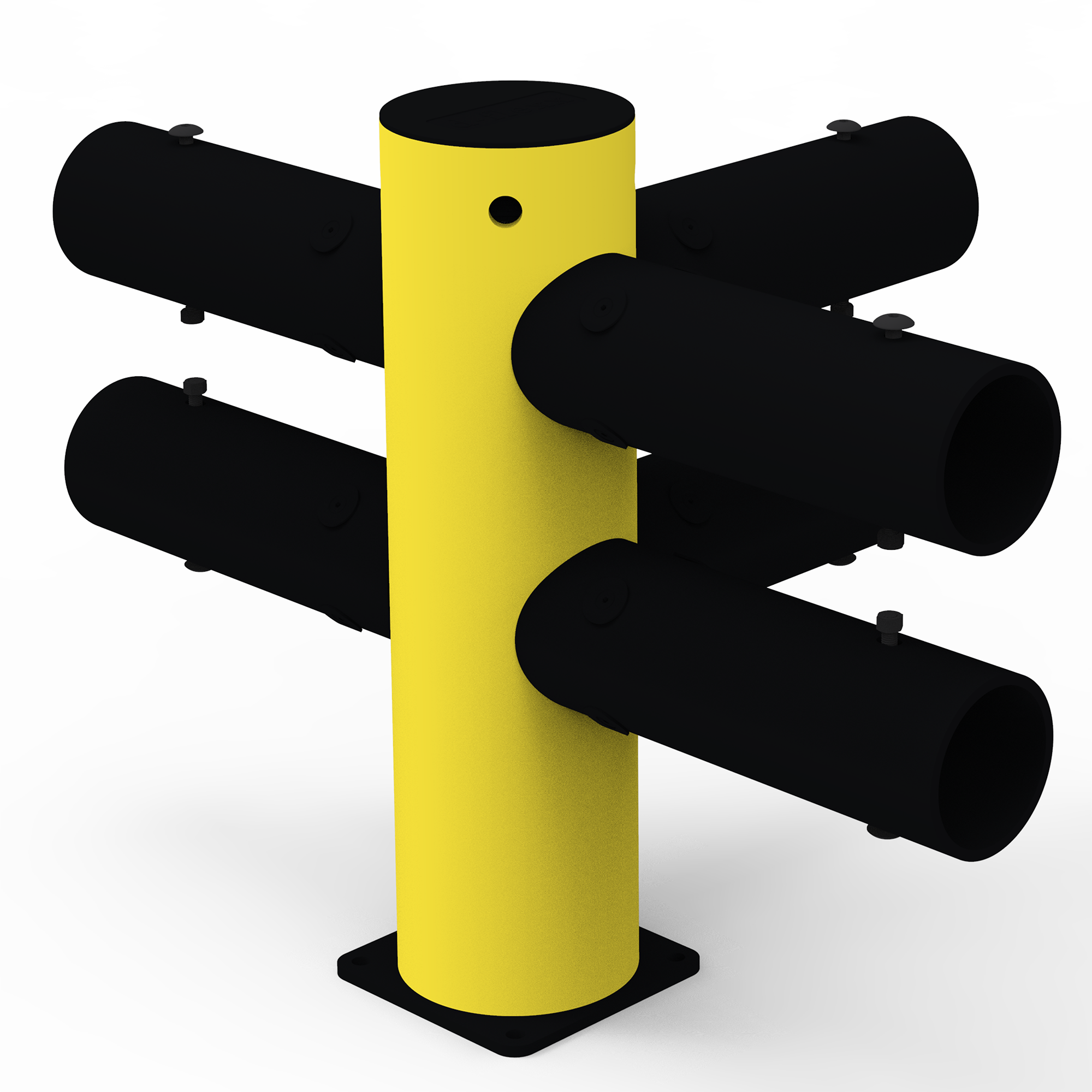

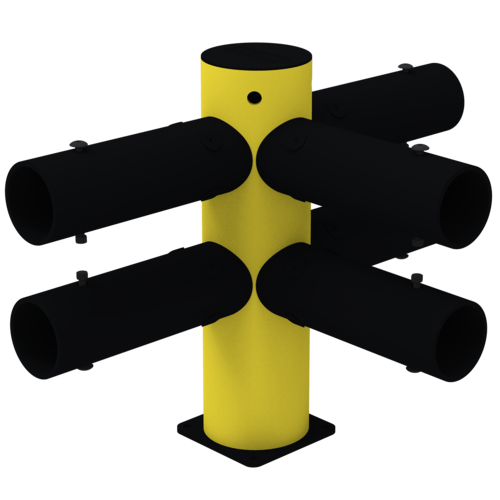

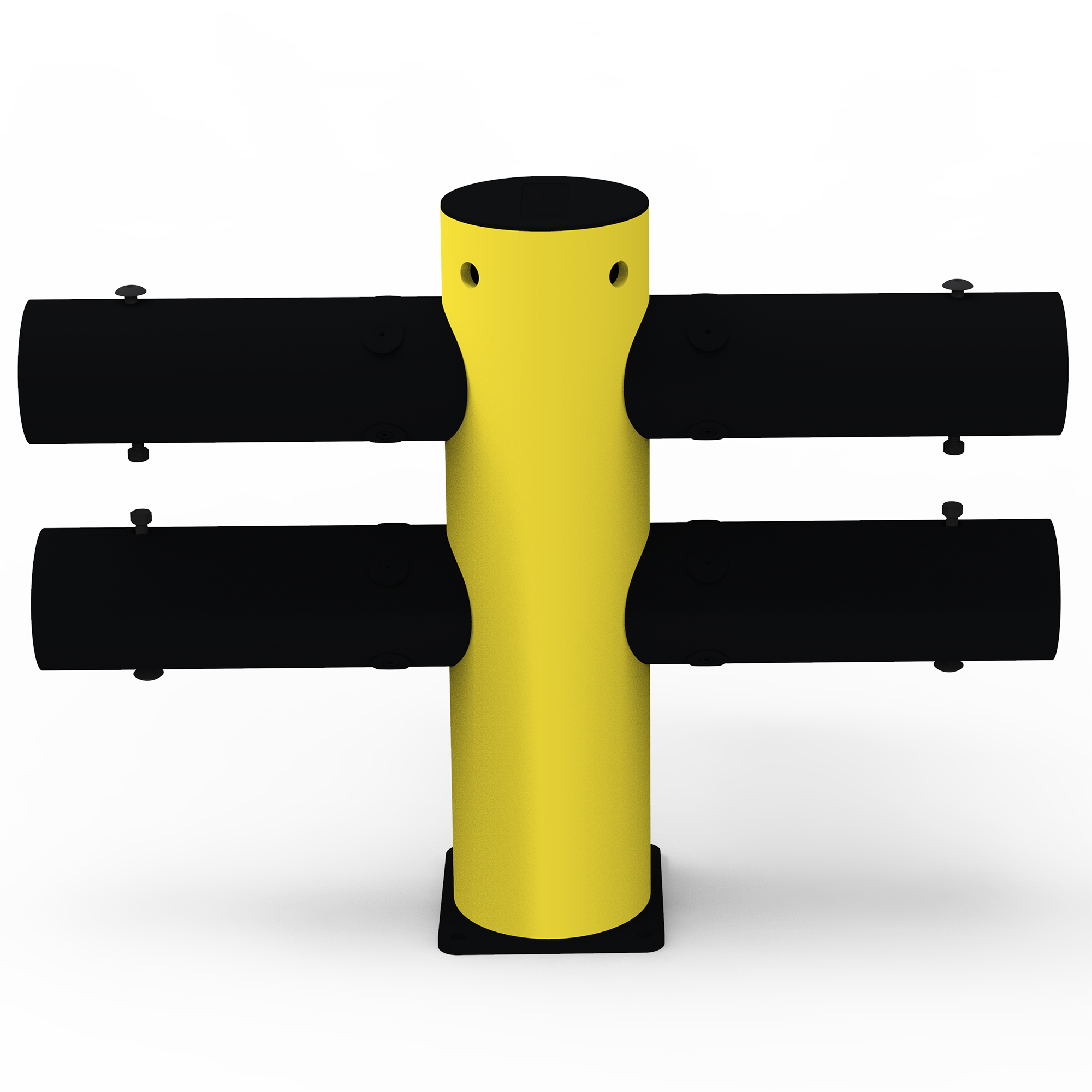

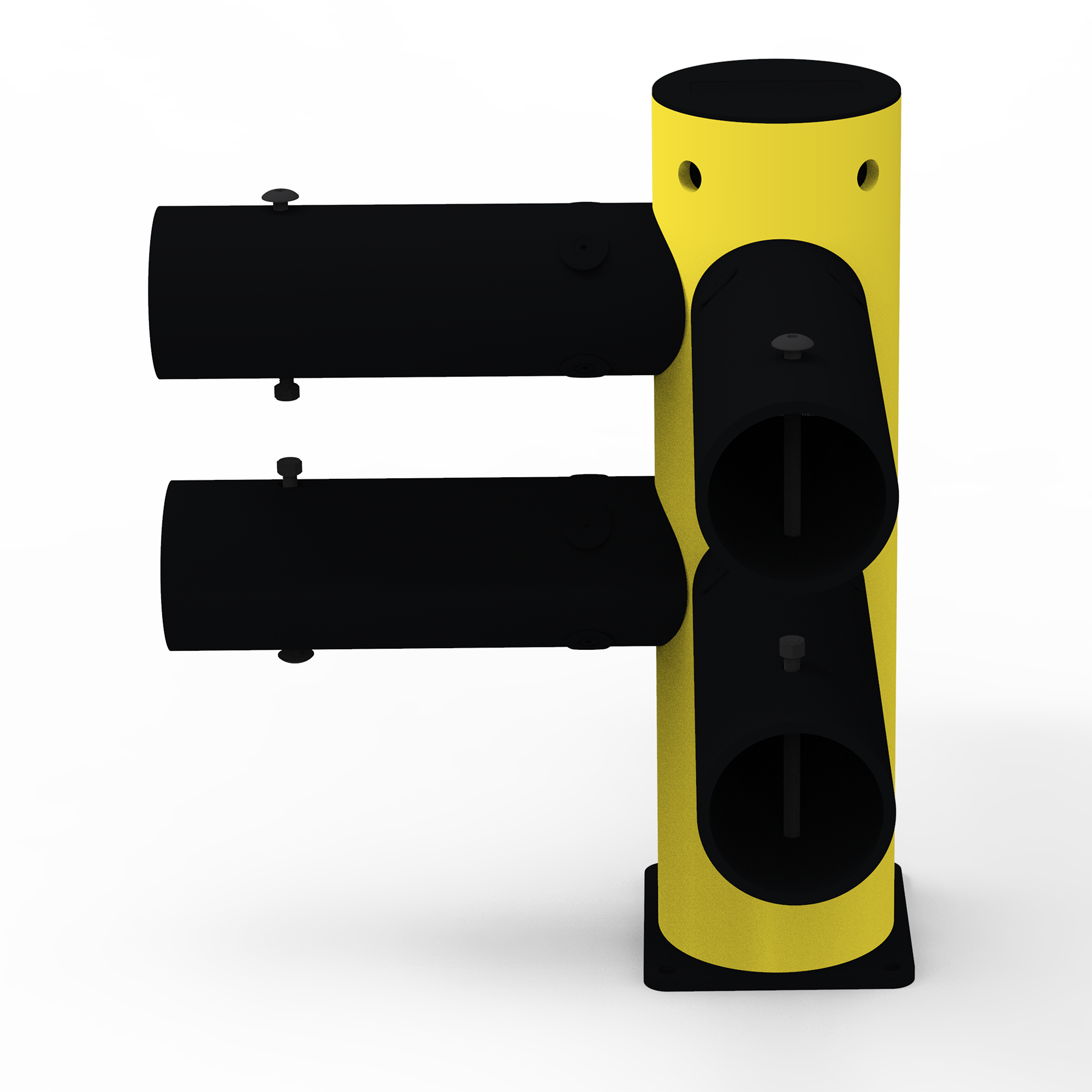

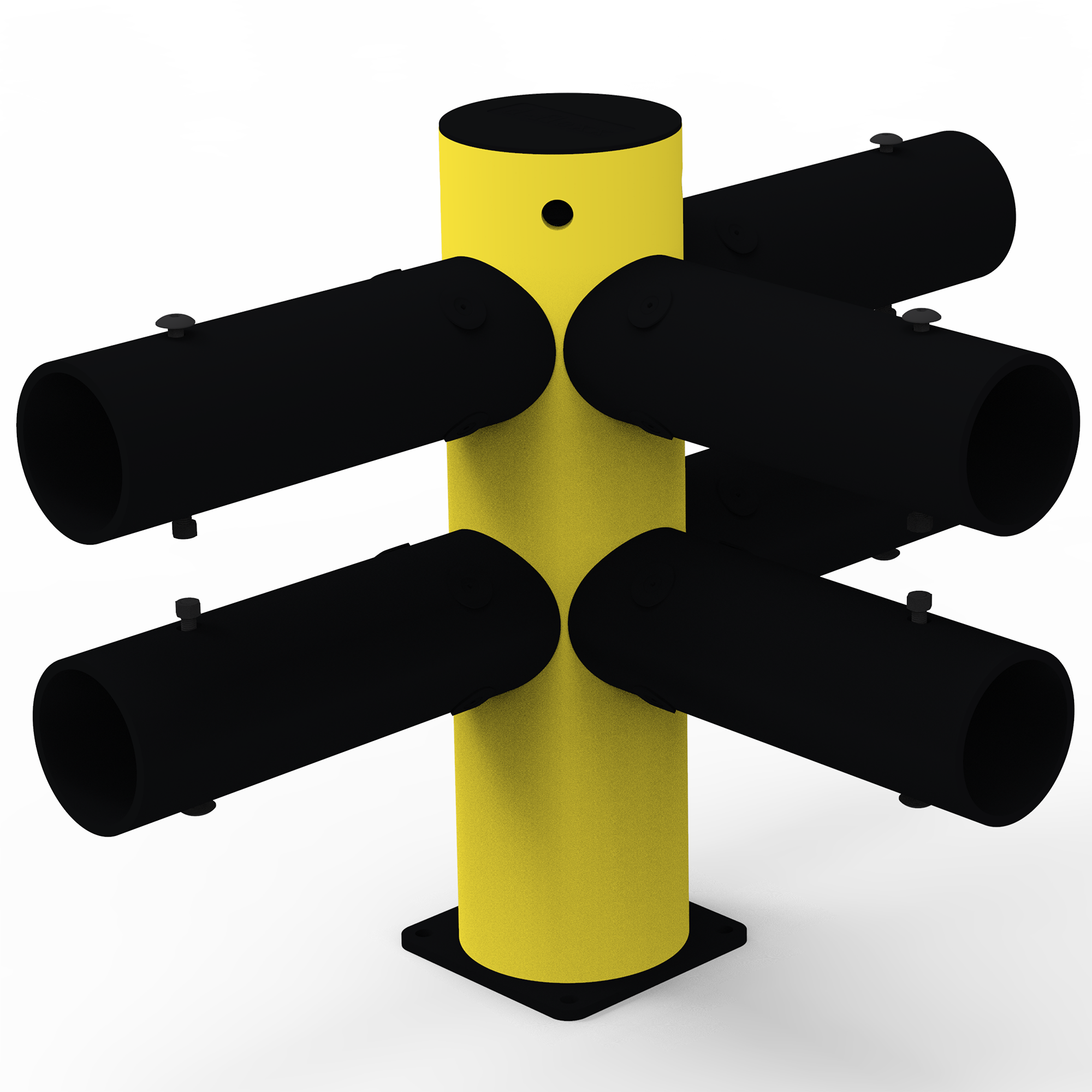

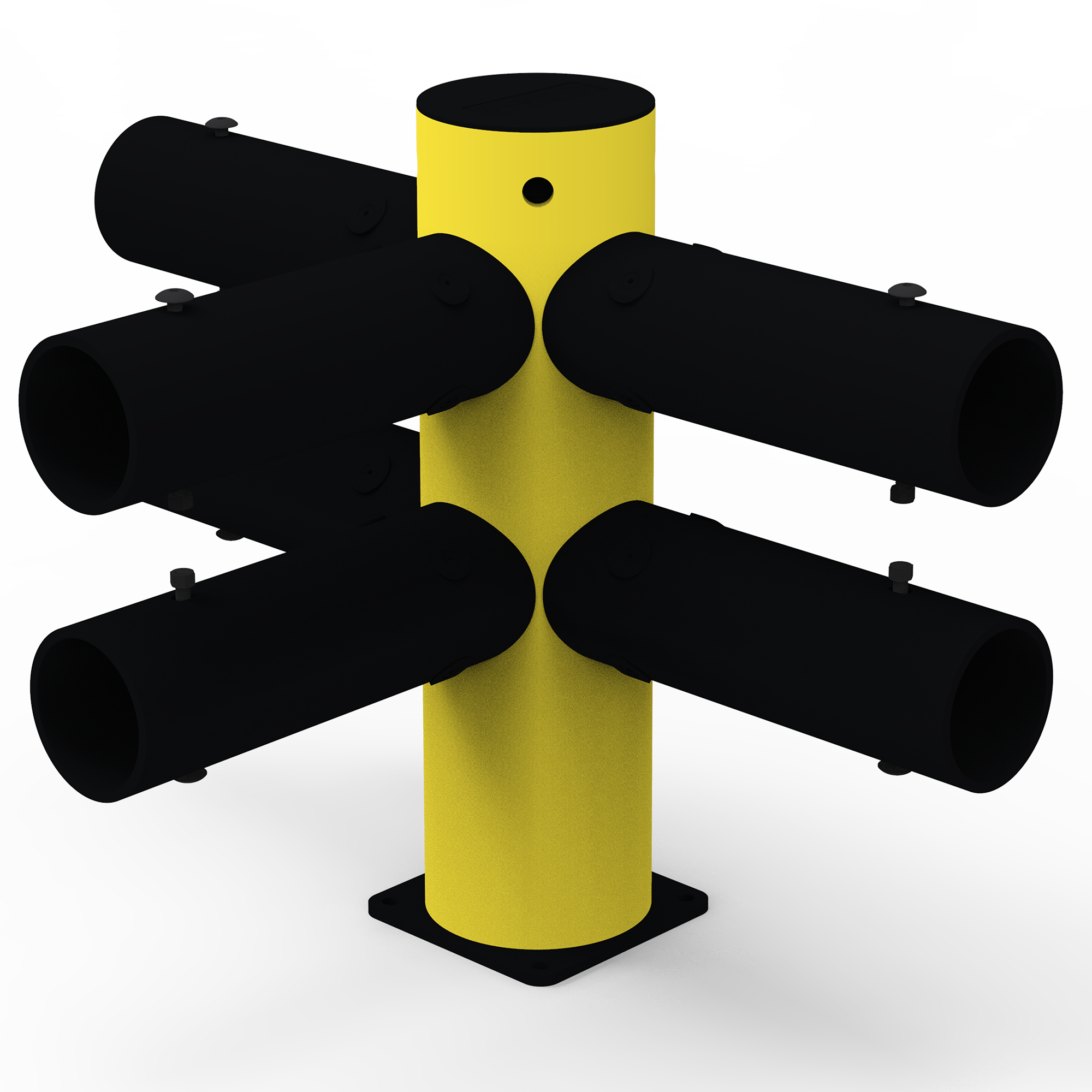

d-flexx traffic barrier double HOTEL modular T-post, made of special synthetic material, including fixing material
| Material | Polyethylene |
|---|---|
| Colour | Yellow - black |
| Width (mm) | 1000 |
| Height (mm) | 740 |
| Depth/Length (mm) | 613 |
| Width without foot plate (mm) | 1000 |
| Depth without foot plate (mm) | 611 |
| Area of application | Indoor and outdoor use |
| Mounting | Bolting |
| Delivery is | Disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M12 x 80 mm |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | Black |
| Tested to withstand force (Joule) | IMPACT ZONE 1: 90° 4.000 J |
| Vehicle weight equivalent (kg) | 11.590 kg |
| Vehicle equivalent speed (km/h) | 3,0 km/h |
| Chemical Resistance | High-ISO/TR 10358 |
| Temperature Range | -40° bis +50° |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | D-flexx |
| Tested according to | PAS 13: 2017 chap. 7/7.8 |
