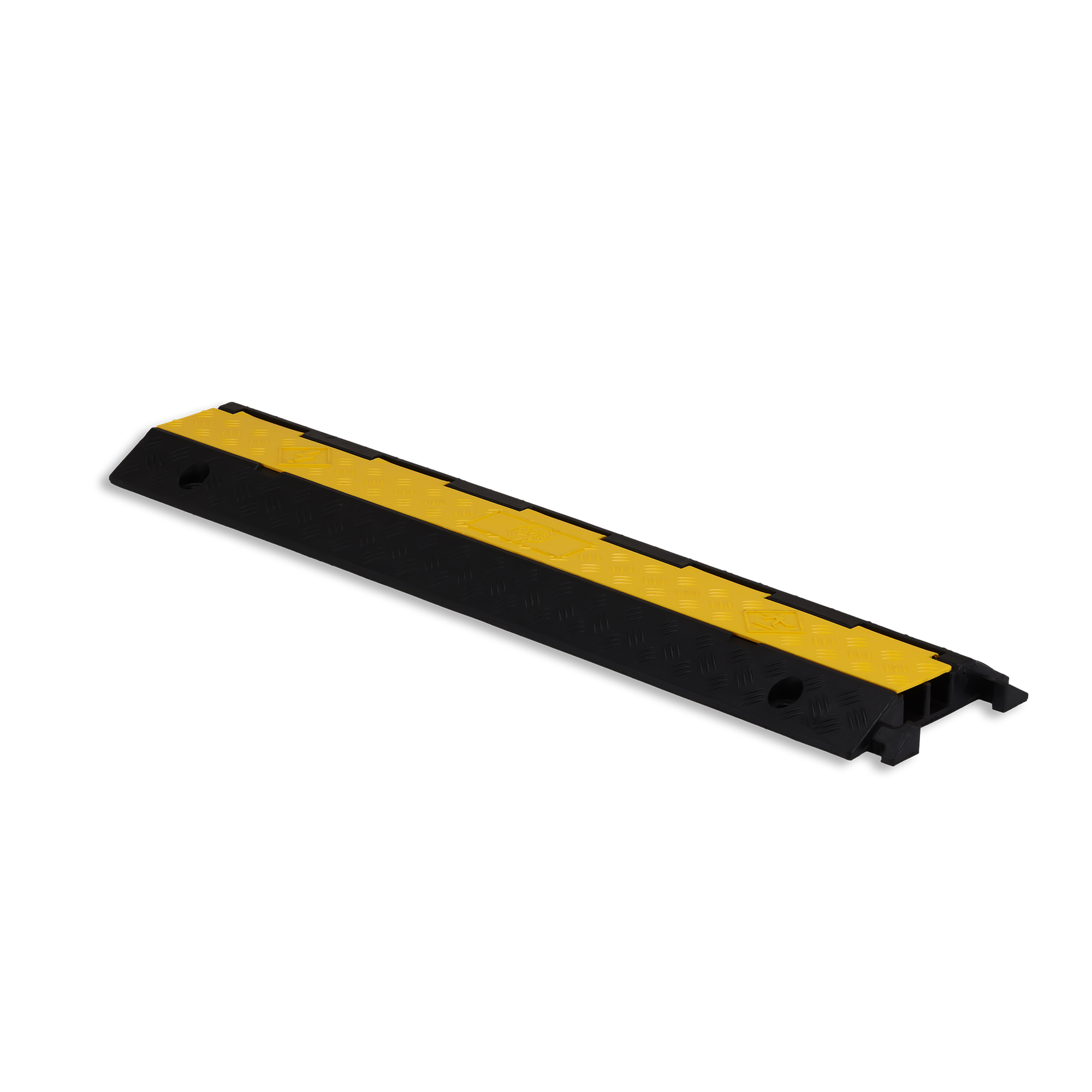

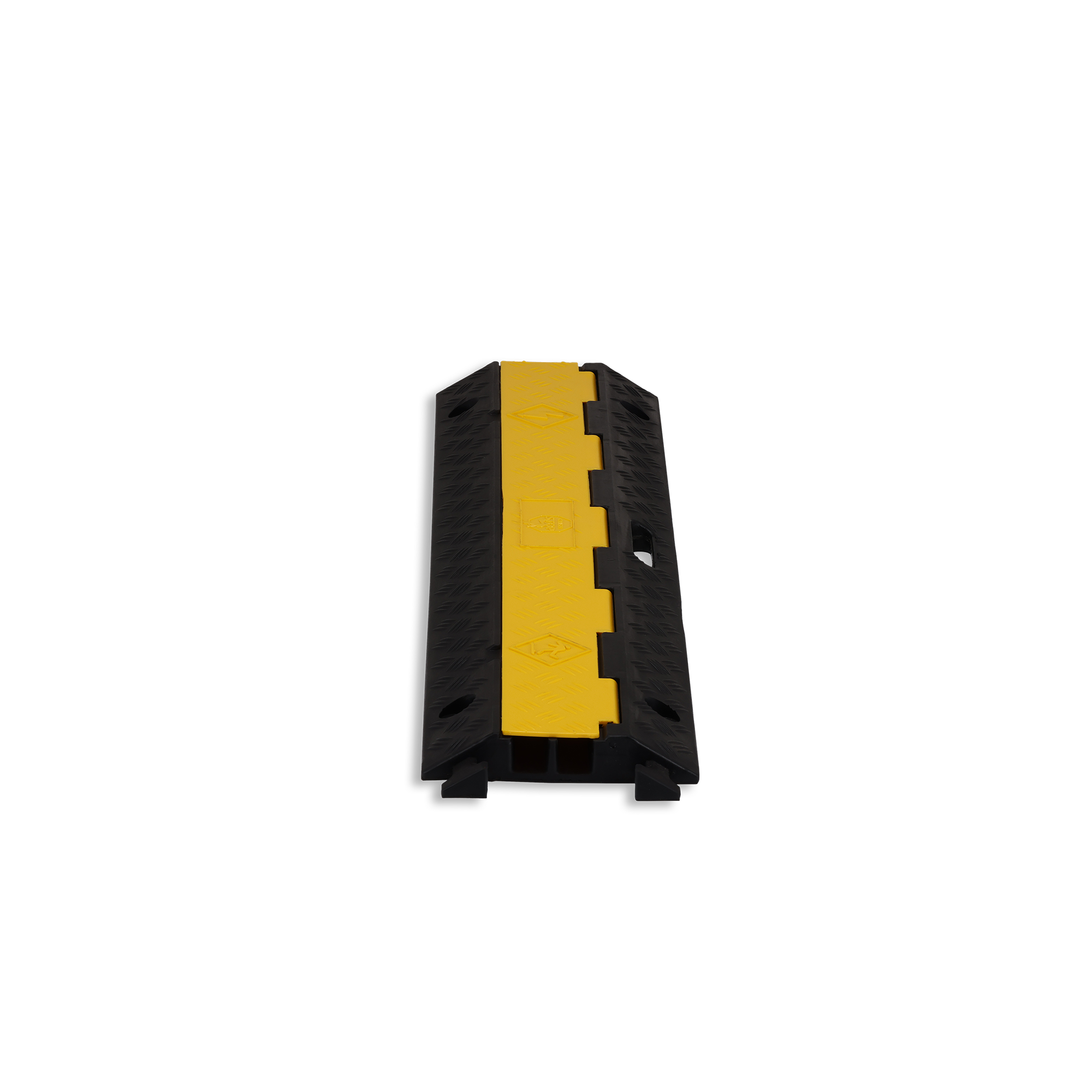

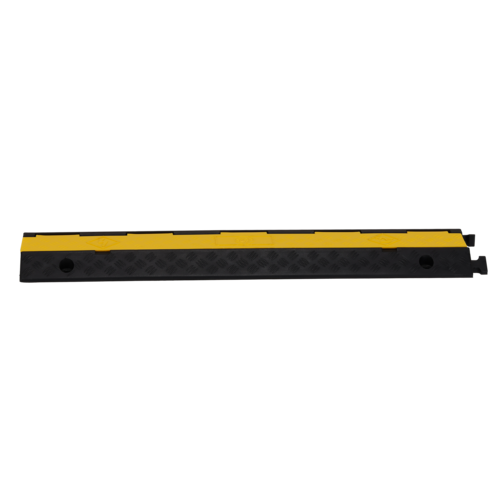

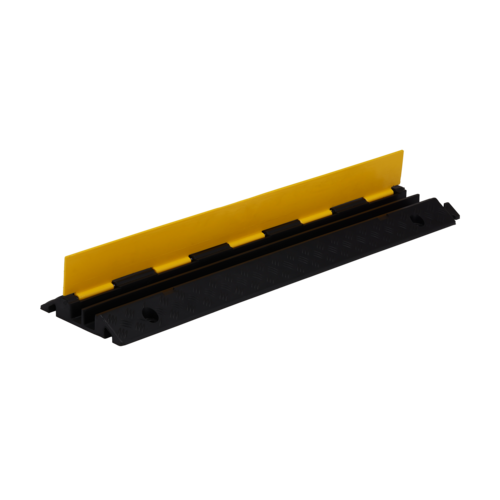

Cable protector with cover, 2 passages

200D2K (GTIN 4250912310940)

Cable protector with cover, 2 passages

Description

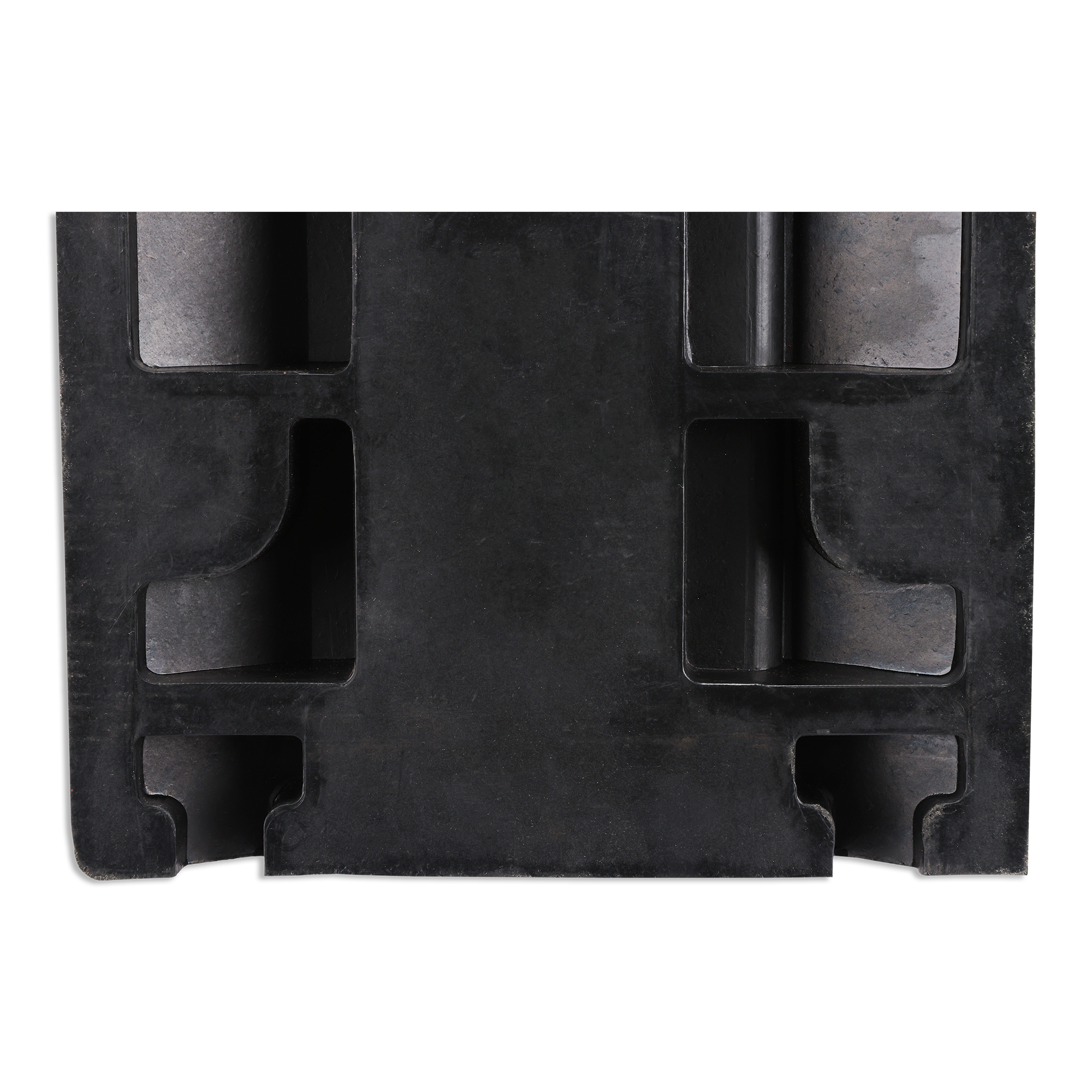

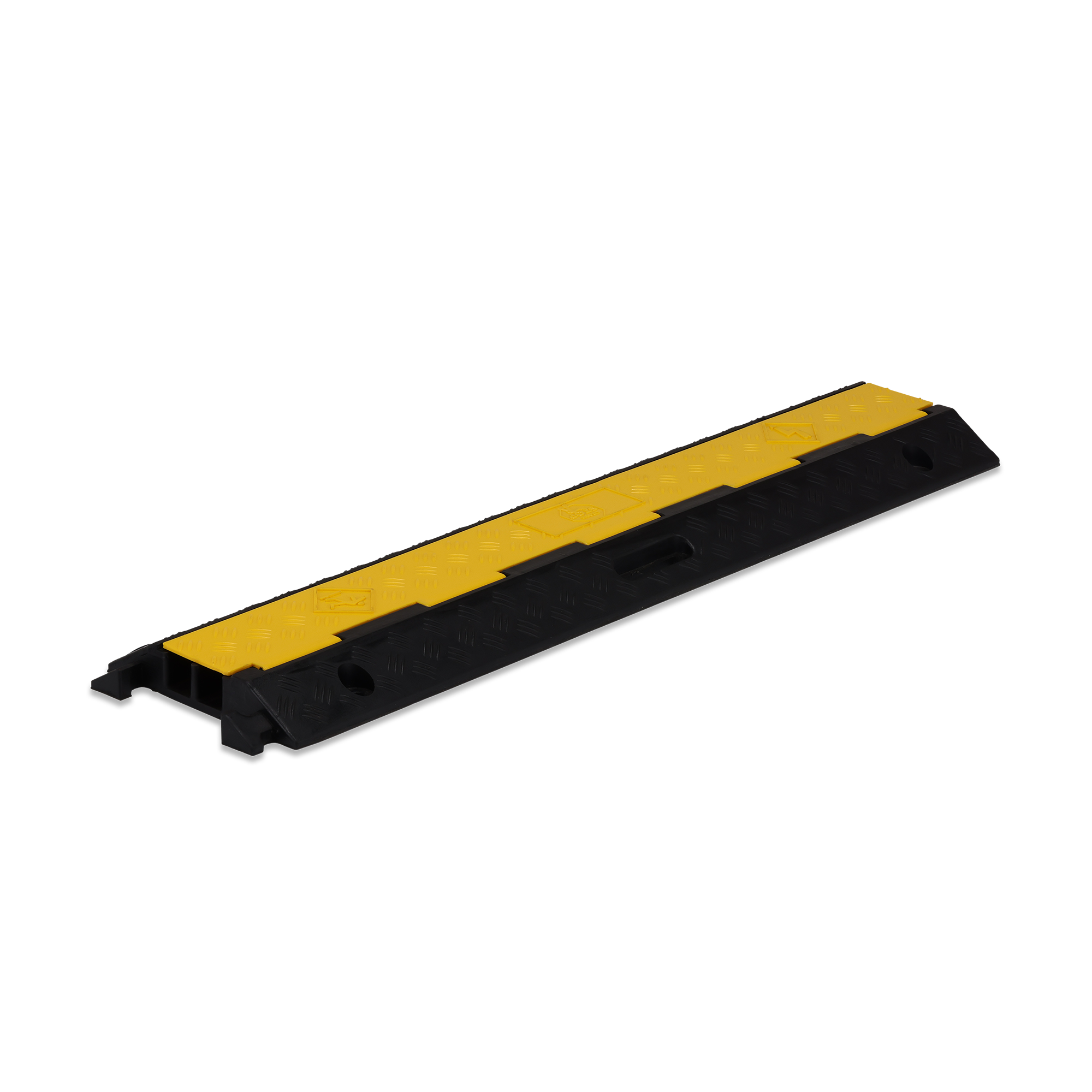

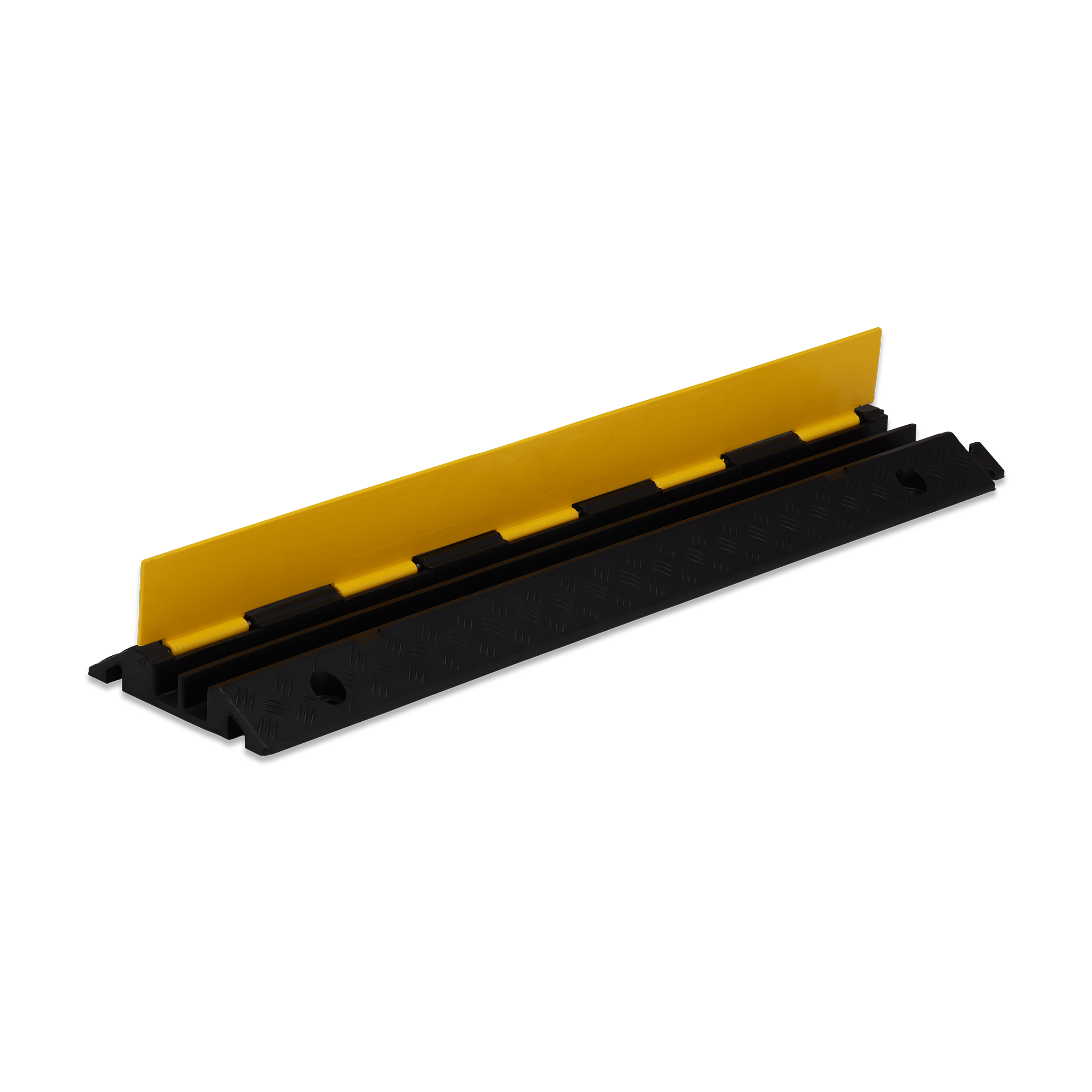

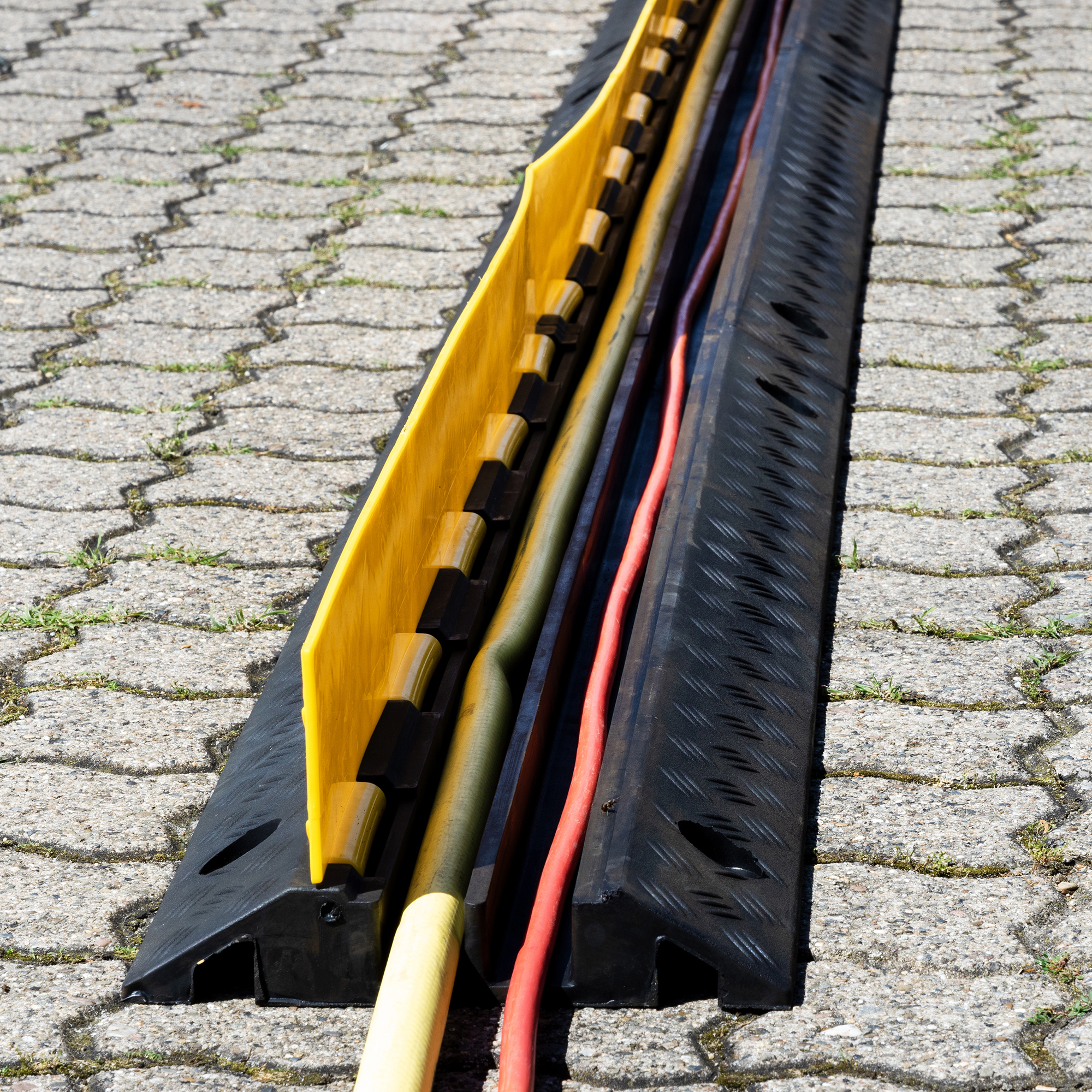

Modular CrashStop cable protector - 2 cable ducts, 30 x 30 mm each - Black recycled rubber with stable, yellow PE cover - Ribbed and non-slip surface - Carrying handle for easy handling - suitable for truck traffic (Up to Axle load 4t) - Connecting pins make it easy to combine the individual pieces - W x D/L x H: 1015 x 240 x 45 mm - Net width in combination 980 mm - Weight 6.2 kg

Width (mm) 240
Height (mm) 45
Depth/Length (mm) 1015
Net weight (kg) 6,2
Gross weight (kg) 6,2
Material Rubber, recycling
Colour Yellow - black
Area of application Indoor and outdoor use
Mounting location Paved ground
Mounting
  • Freestanding
  • bolting
Delivery is Pre-assembled
Number of mounting holes 4

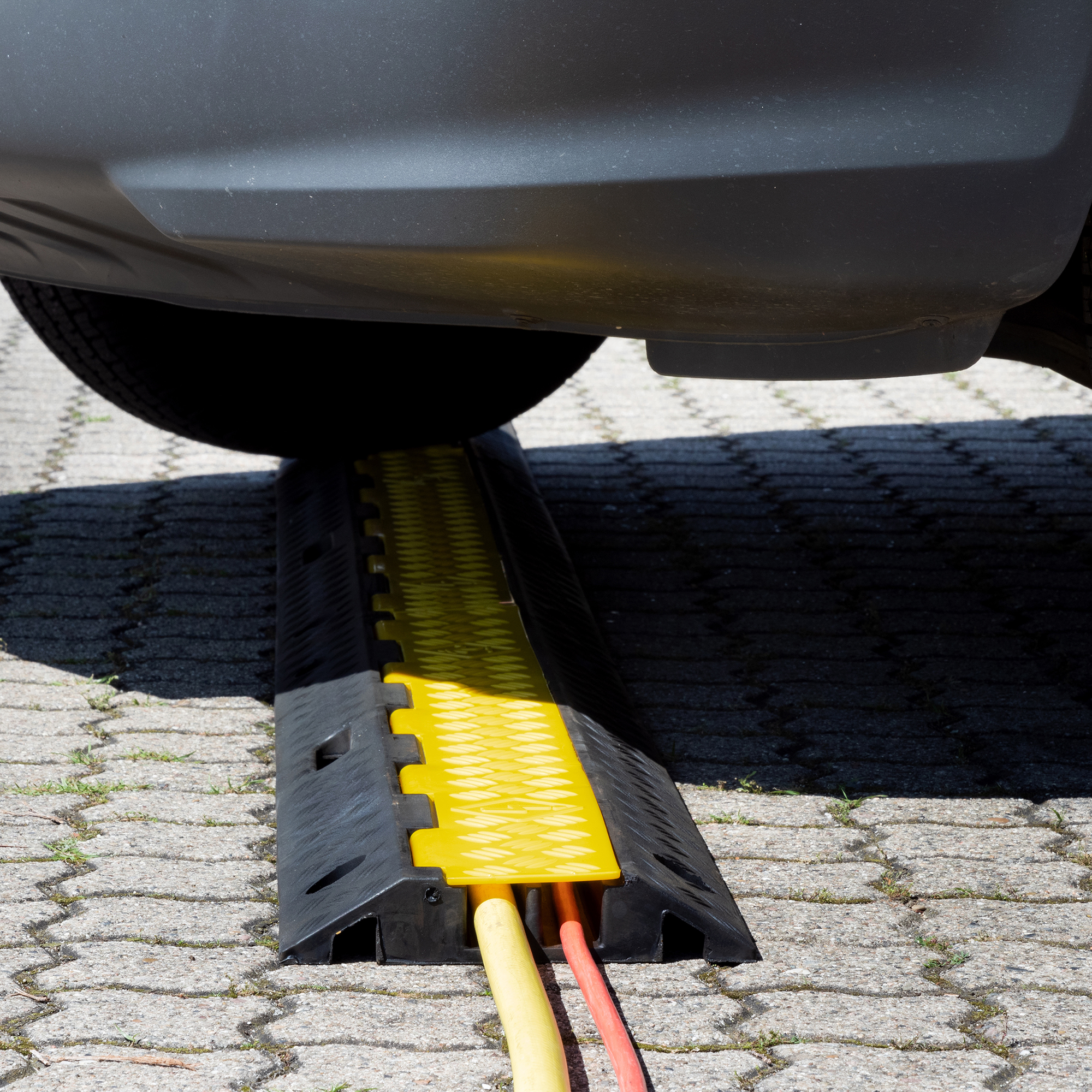

Features Passable up to 4t axle load
Fixing included Mounting material not included
Accessories (optional)
  • Mounting Art. No. FIX 1 for indoor use
  • Mounting Art. No. FS-FIX for outdoor use
Warranty 1 year
Brand Crash Stop

Downloads

Data sheet English Product 200D2K

PDF, 80,28 KB

Download

Assembly guide Product 200D2K

PDF, 377,61 KB

Download
