Column protection-/ post Ø 60
SRR-500- (GTIN 4250912309692)
Column protection-/ post Ø 60
Description

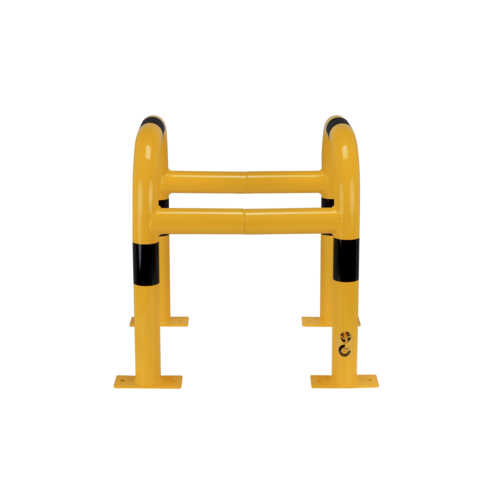

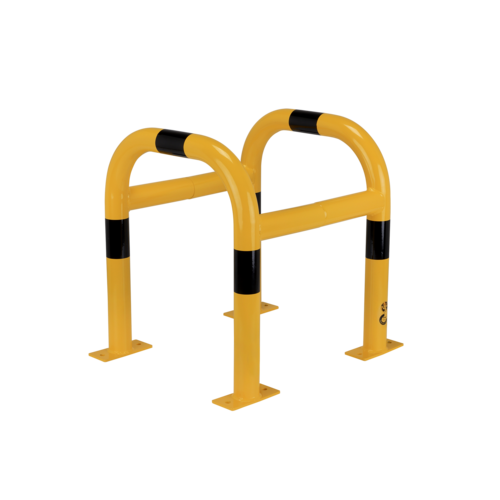

Column protector made of steel, square, height 600 mm, side length 500 mm, made of two pieces, ground plate 160 x 70 mm with 12,5 mm boreholes, yellow powder coated (similar RAL 1023) with black marking strips, for indoor use, with base plate for floor mounting
| Material | Steel |
|---|---|
| Material surface | Powder coated |
| Material thickness (mm) | 3,2 |
| Colour | Yellow |
| Warning mark | Black warning mark |
| Width (mm) | 620 |
| Height (mm) | 600 |
| Depth/Length (mm) | 520 |
| Diameter (mm) | 60 |
| Net weight (kg) | 16,6 |
| Width without foot plate (mm) | 520 |
| Area of application | Indoor use |
| Mounting location | Paved ground |
| Mounting | Dowel and screw on |
| Delivery is | Pre-assembled |
| Number of mounting holes | 8 |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. FIX 1 |
| Foot plate width (mm) | 160 |
| Foot plate depth (mm) | 120 |
| Foot plate height (mm) | 6 |
| Foot plate colour | Yellow |
| Warranty | 1 year |
| Brand | Crash Stop |
| Approval / Certification | TÜV-certified (compliant with DGUV 108-007 / previously BGR 234) |
