Rubber speed bumps in black or yellow can be freely combined to increase visibility in car parks, factory premises, and access roads. The center sections additionally feature a reflector on each side. Available in two different heights for flexible use.
Material
Synthetic rubber
Mounting
Bolting
Warning mark
One reflector per side
Area of application
Indoor and outdoor use
Item discount group
Crash Stop Rubber products
Warranty
1 year
Fixing included
no
Accessories (optional)
Mounting Art. No. FS-FIX
Variants
Speed ramp ( 50mm, end piece, black )
45031 (EAN / GTIN: 4250912303362)
speed ramp end piece black 50 mm, W x D/L x H: 200 x 400 x 50 mm
Shape
Half round curved End
Width
200 mm
Colour
Black
Height
50 mm
Function
End piece
Features
Passable up to 9t axle load
Extendable
Recommended overrun speed max. 20 km/h
Produced in sandwich technology
Yellow top rubber with black core
The thickness of the yellow rubber is approx. 2 cm
Net weight
2.173 kg
Delivery is
Pre-assembled
Depth/Length
400 mm
Gross weight
3.437 kg
Number of mounting holes
3
Speed ramp ( 50mm, end piece, yellow )
45030 (EAN / GTIN: 4250912303355)
speed ramp end piece yellow 50 mm, W x D/L x H: 200 x 400 x 50 mm
Shape
Half round curved End
Width
200 mm
Colour
Yellow
Height
50 mm
Function
End piece
Features
Passable up to 9t axle load
Extendable
Recommended overrun speed max. 20 km/h
Produced in sandwich technology
Yellow top rubber with black core
The thickness of the yellow rubber is approx. 2 cm
Net weight
2.173 kg
Delivery is
Pre-assembled
Depth/Length
400 mm
Gross weight
3.437 kg
Number of mounting holes
3
Speed ramp ( 50mm, middle piece, black )
45011 (EAN / GTIN: 4250912303324)
speed ramp middle piece black 50 mm, W x D/L x H 500 x 400 x 50 mm
Shape
Rectangular curved
Width
500 mm
Colour
Black
Height
50 mm
Features
Passable up to 9t axle load
Extendable
Recommended overrun speed max. 20 km/h
Produced in sandwich technology
Yellow top rubber with black core
The thickness of the yellow rubber is approx. 2 cm
Net weight
7.882 kg
Delivery is
Pre-assembled
Depth/Length
400 mm
Gross weight
8.051 kg
Number of mounting holes
4

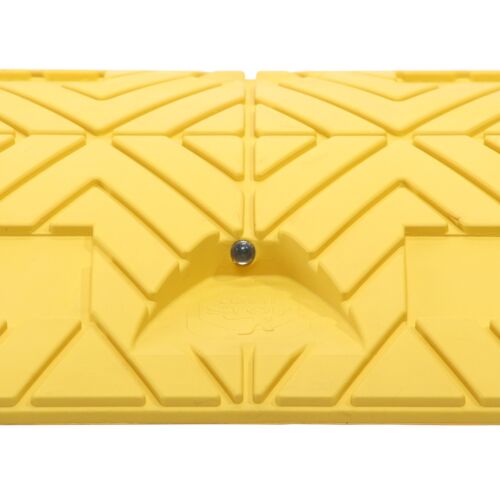

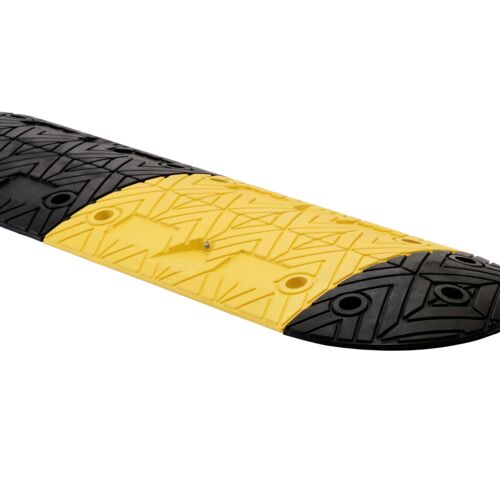

Speed ramp ( 50mm, middle piece, yellow )
45010 (EAN / GTIN: 4250912303317)
speed ramp middle piece yellow 50 mm, W x D/L x H: 500 x 400 x 50 mm
Shape
Rectangular curved
Width
500 mm
Colour
Yellow
Height
50 mm
Function
Middle piece
Features
Passable up to 9t axle load
Extendable
Recommended overrun speed max. 20 km/h
Produced in sandwich technology
Yellow top rubber with black core
The thickness of the yellow rubber is approx. 2 cm
Net weight
7.882 kg
Delivery is
Pre-assembled
Depth/Length
400 mm
Gross weight
8.051 kg
Number of mounting holes
4
Speed ramp ( 50mm, start piece, black )
45021 (EAN / GTIN: 4250912303348)
speed ramp start piece black 50 mm, W x D/L x H: 200 x 400 x 50 mm
Shape
Half round curved
Width
200 mm
Colour
Black
Height
50 mm
Function
Start piece
Features
Passable up to 9t axle load
Extendable
Recommended overrun speed max. 20 km/h
Produced in sandwich technology
Yellow top rubber with black core
The thickness of the yellow rubber is approx. 2 cm
Net weight
2.151 kg
Delivery is
Pre-assembled
Depth/Length
400 mm
Gross weight
3.557 kg
Number of mounting holes
3

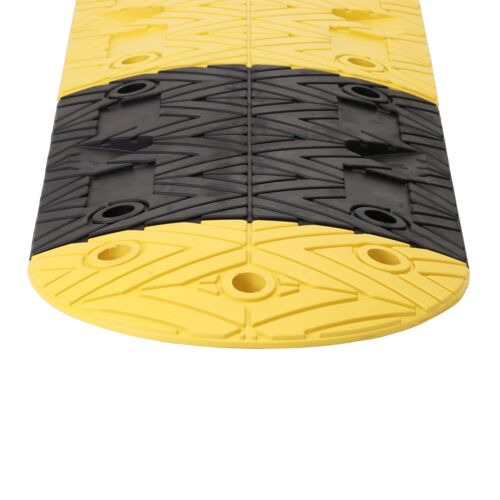

Speed ramp ( 50mm, start piece, yellow )
45020 (EAN / GTIN: 4250912303331)
speed ramp start piece yellow 50 mm, W x D/L x H: 200 x 400 x 50 mm
Shape
Half round curved
Width
200 mm
Colour
Yellow
Height
50 mm
Function
Start piece
Features
Passable up to 9t axle load
Extendable
Recommended overrun speed max. 20 km/h
Produced in sandwich technology
Yellow top rubber with black core
The thickness of the yellow rubber is approx. 2 cm
