Add-on kit safety railing, powder-coated
SETSGE15 (GTIN 4250912338272)

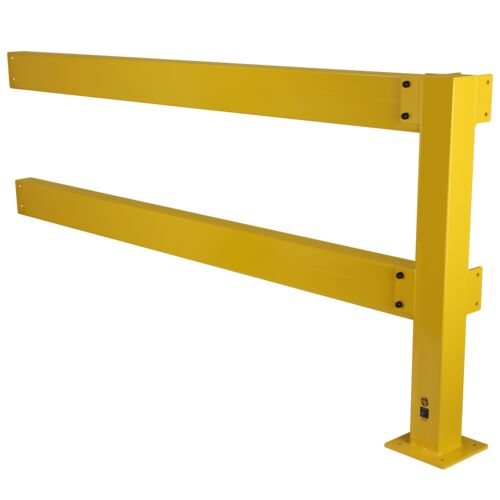

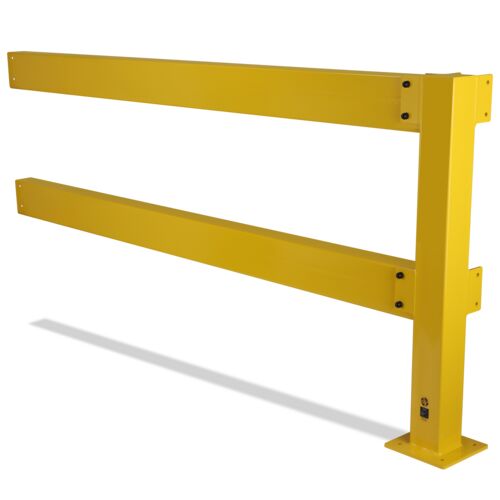

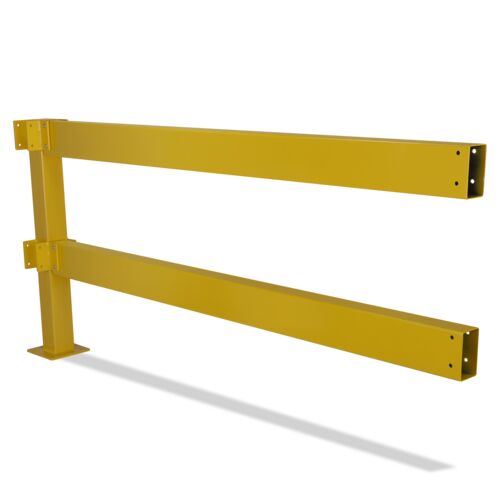

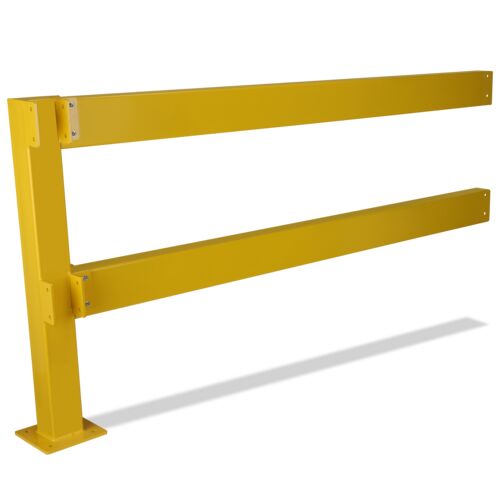

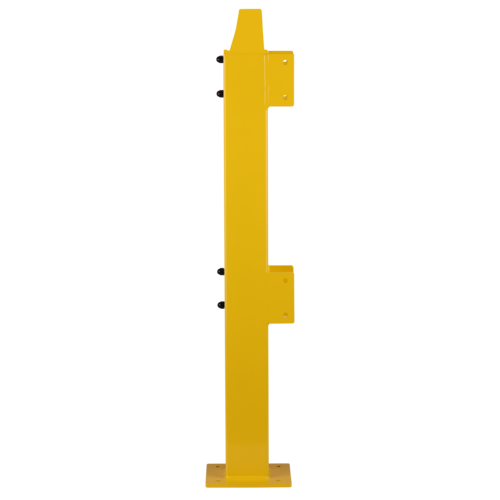

Add-on kit safety railing, powder-coated
Description
The safety railing extension set, comprising one corner post and two rails, enables the easy extension of existing safety barrier systems and the creation of 90° corners. It is designed to provide safe separation of traffic routes and protect machinery, racking, and facility infrastructure from impact damage. The robust steel construction is hot-dip galvanised and powder-coated, making it suitable for use in warehouse, logistics, and industrial environments.
| Width | 2300 mm |
|---|---|
| Colour | Yellow |
| Height | 1000 mm |
| Material | Steel |
| Mounting | Bolting |
| Delivery is | Pre-assembled |
| Depth/Length | 200 mm |
| Foot plate depth | 200 mm |
| Foot plate width | 200 mm |
| Area of application | Indoor use |
| Foot plate colour | Yellow |
| Foot plate height | 10 mm |
| Material thickness | 3 mm |
| Foot plate material | Steel |
| Fixing holes Ø | 13 mm |
| Foot plate side length | 200 mm |
| Approval / Certification | TÜV-certified (compliant with DGUV 108-007 / previously BGR 234) |
| Depth without foot plate | 100 mm |
| Width without foot plate | 2200 mm |
| Distance between foot plates | 1900 mm |
| Warranty | 1 year |
| Type_tested | baumustergeprueft |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. FIX 1 |
| Number of mounting holes | 8 |
