Set flexible posts 1000

SET-FP-GS-1000 (GTIN 4250912310315)

Set flexible posts 1000

Description

Set flexible posts 1000, 6 posts with chains polyurethane, 4 yellow stripes, ø 80 mm, footplates ø 220 mm, weight 8 KG, three boreholes, 10 running meters of chain yellow-black, 2 chain connectors, 6 post caps for chain guide

Width (mm) 220
Height (mm) 1000
Depth/Length (mm) 220
Net weight (kg) 11
Material Polyurethane
Colour Black
Warning mark Yellow reflective warning mark
Area of application Indoor and outdoor use
Mounting Bolting
Delivery is Pre-assembled
Number of mounting holes 18
Fixing included Mounting material not included
Accessories (optional) Mounting Art. No. FP-FIX
Depth without foot plate (mm) 80
Foot plate diamater (mm) 220
Foot plate colour Black
Warranty 1 year
Brand Crash Stop
Contain
  • 6x FP1000 S,
  • 2x VBGS G KS, 6x KA, 6x KAU, 1x KETTE KS GS 10

Downloads

Datasheets

Data sheet English Product SET-FP-GS-1000

PDF, 532,07 KB

Download
Set flexible posts 1000

Impressions

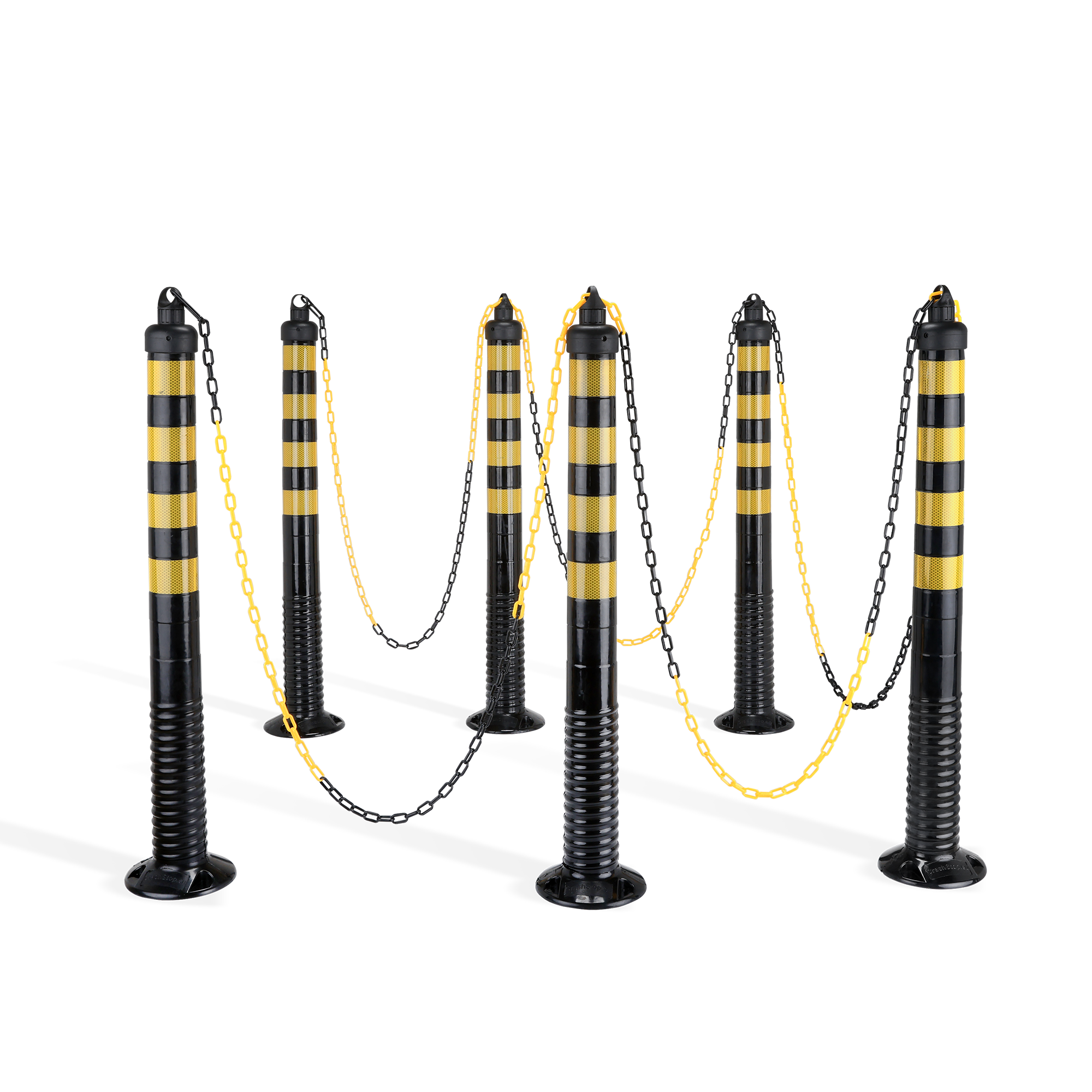

SET-FP-GS-1000 / 45° front left view
SET-FP-GS-1000 / 45° front left view

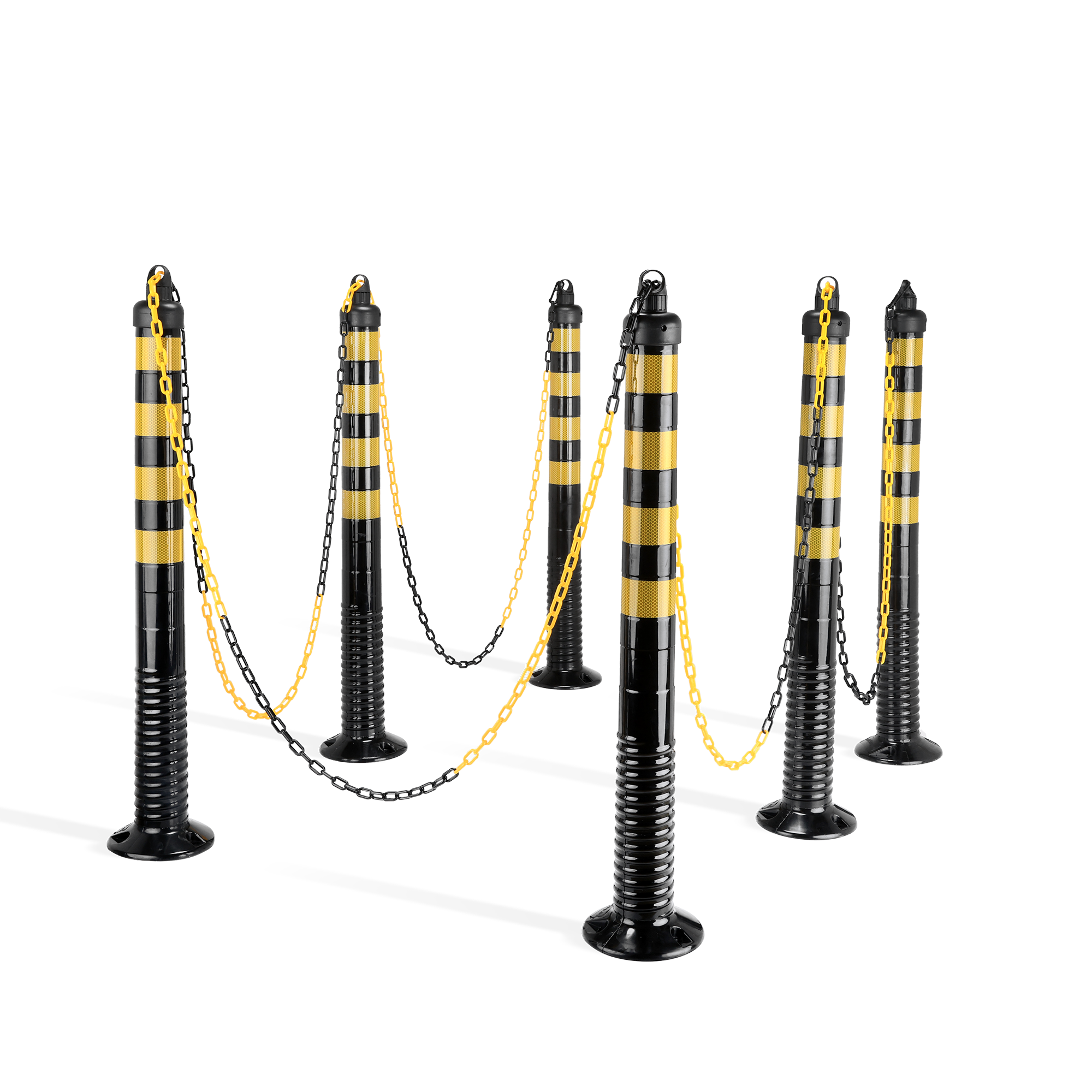

SET-FP-GS-1000 / 45° front view right
SET-FP-GS-1000 / 45° front view right

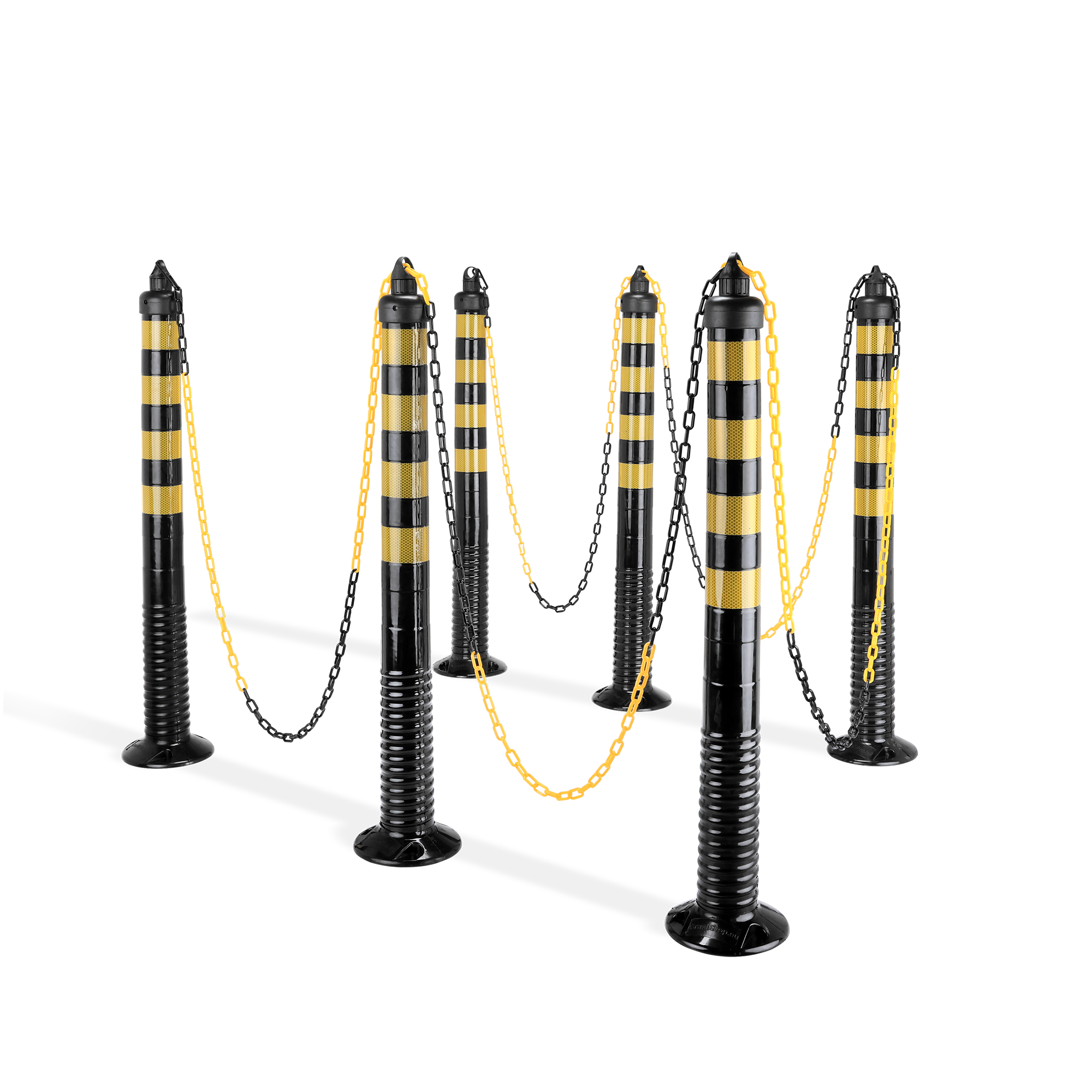

SET-FP-GS-1000 / 45° rear left view
SET-FP-GS-1000 / 45° rear left view
SET-FP-GS-1000 / 45° rear right view
SET-FP-GS-1000 / 45° rear right view
SET-FP-GS-1000 / Application picture 1
SET-FP-GS-1000 / Application picture 1
SET-FP-GS-1000 / Application picture 2
SET-FP-GS-1000 / Application picture 2
SET-FP-GS-1000 / Application picture 3
SET-FP-GS-1000 / Application picture 3

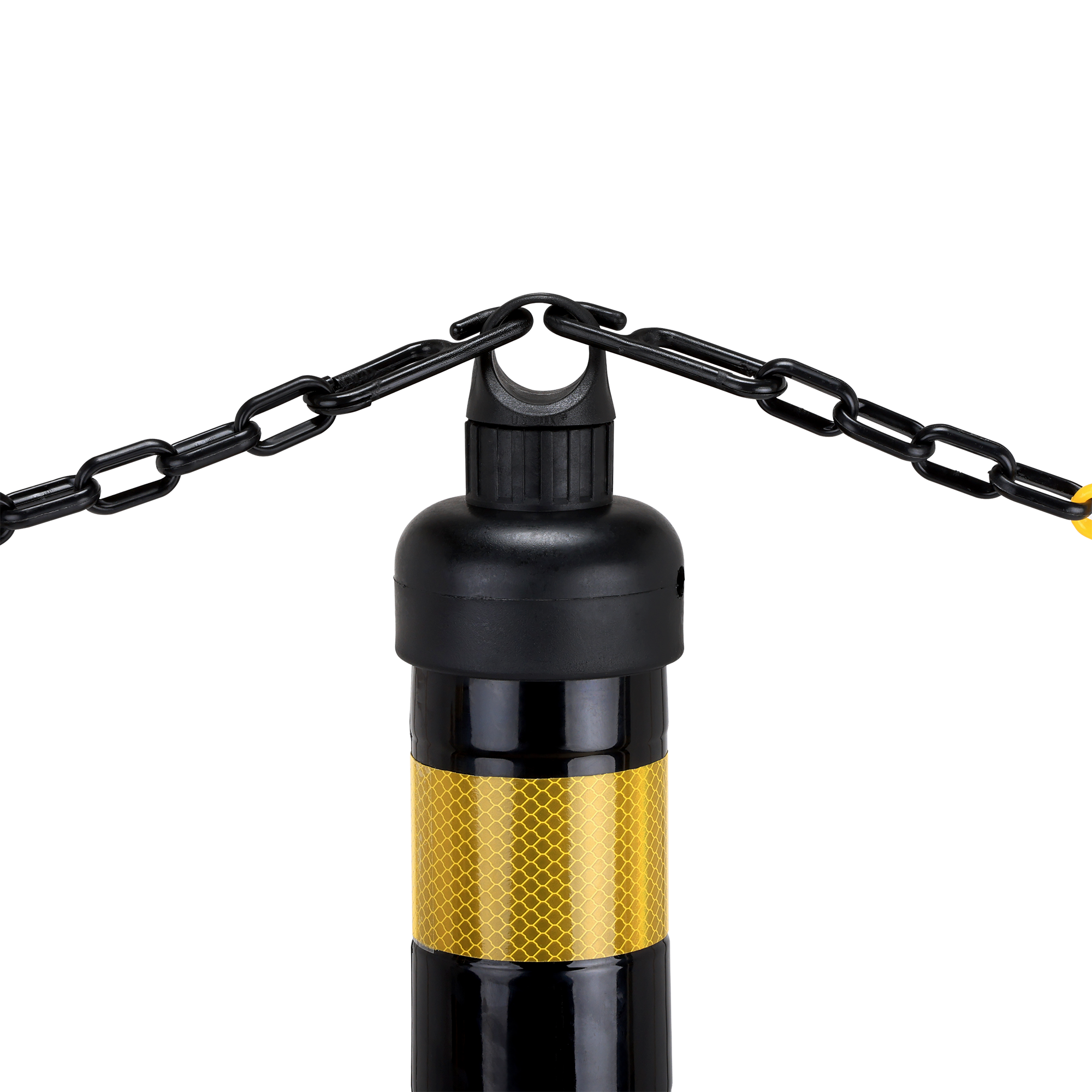

SET-FP-GS-1000 / Detail view 1
SET-FP-GS-1000 / Detail view 1

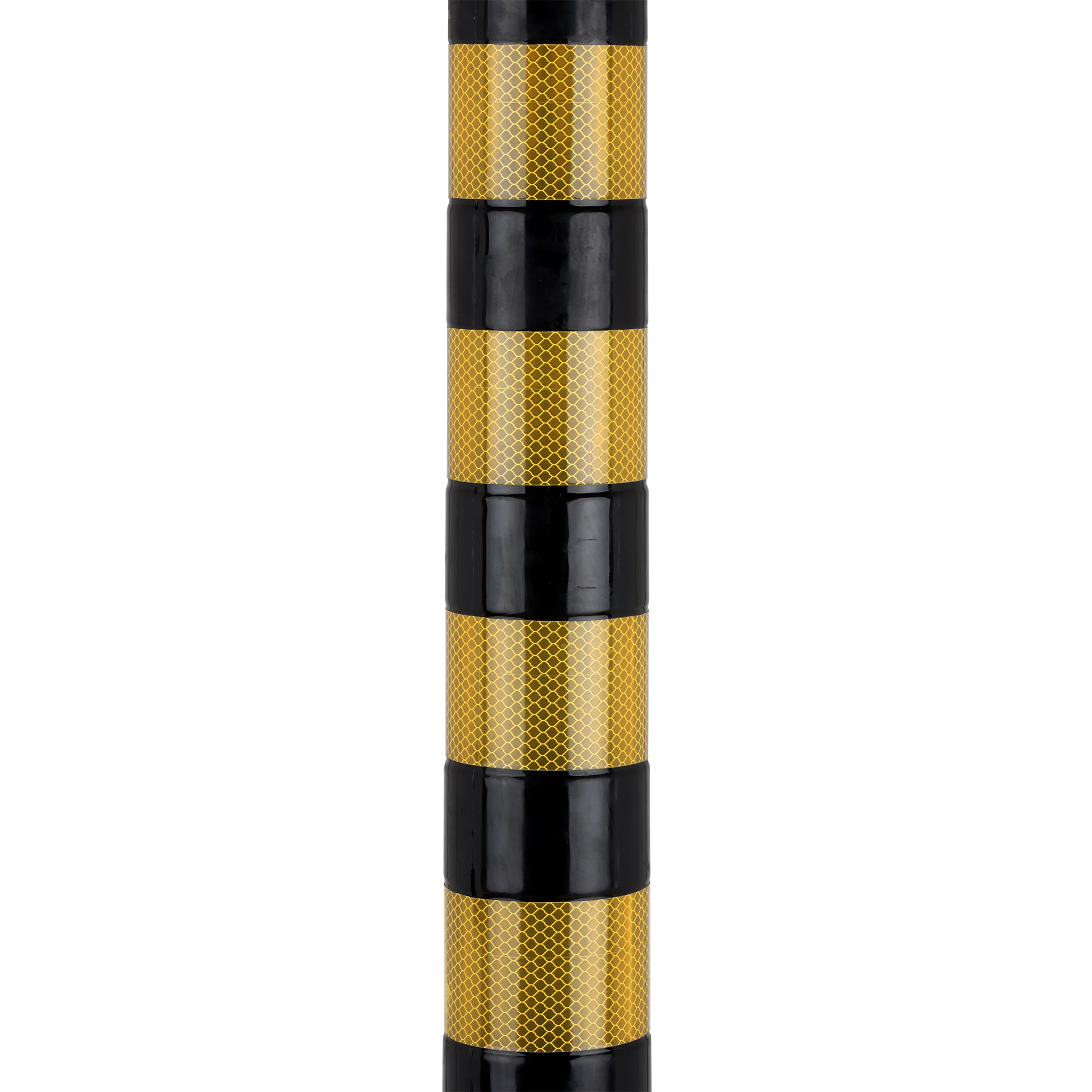

SET-FP-GS-1000 / Detail view 2
SET-FP-GS-1000 / Detail view 2

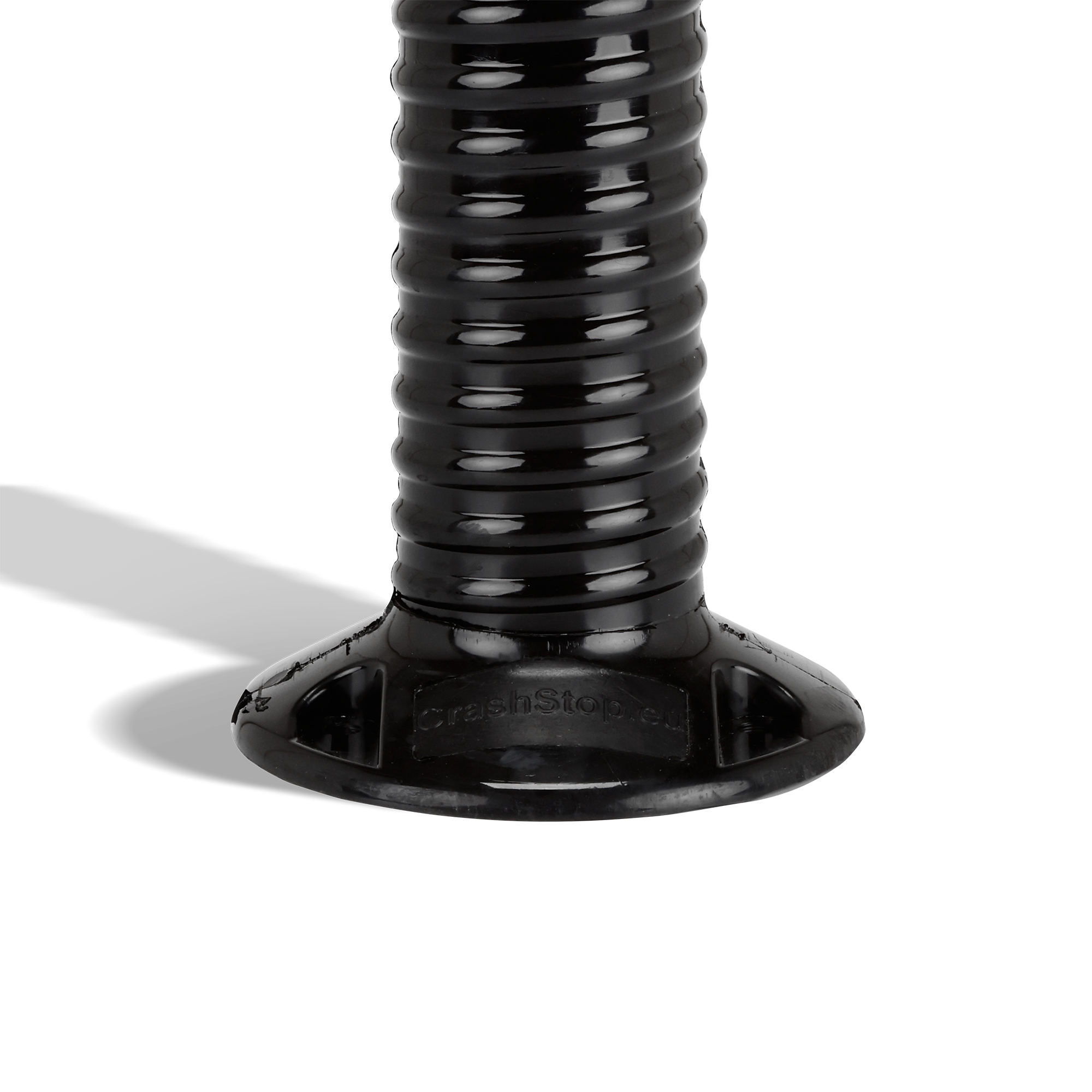

SET-FP-GS-1000 / Detail view 3
SET-FP-GS-1000 / Detail view 3

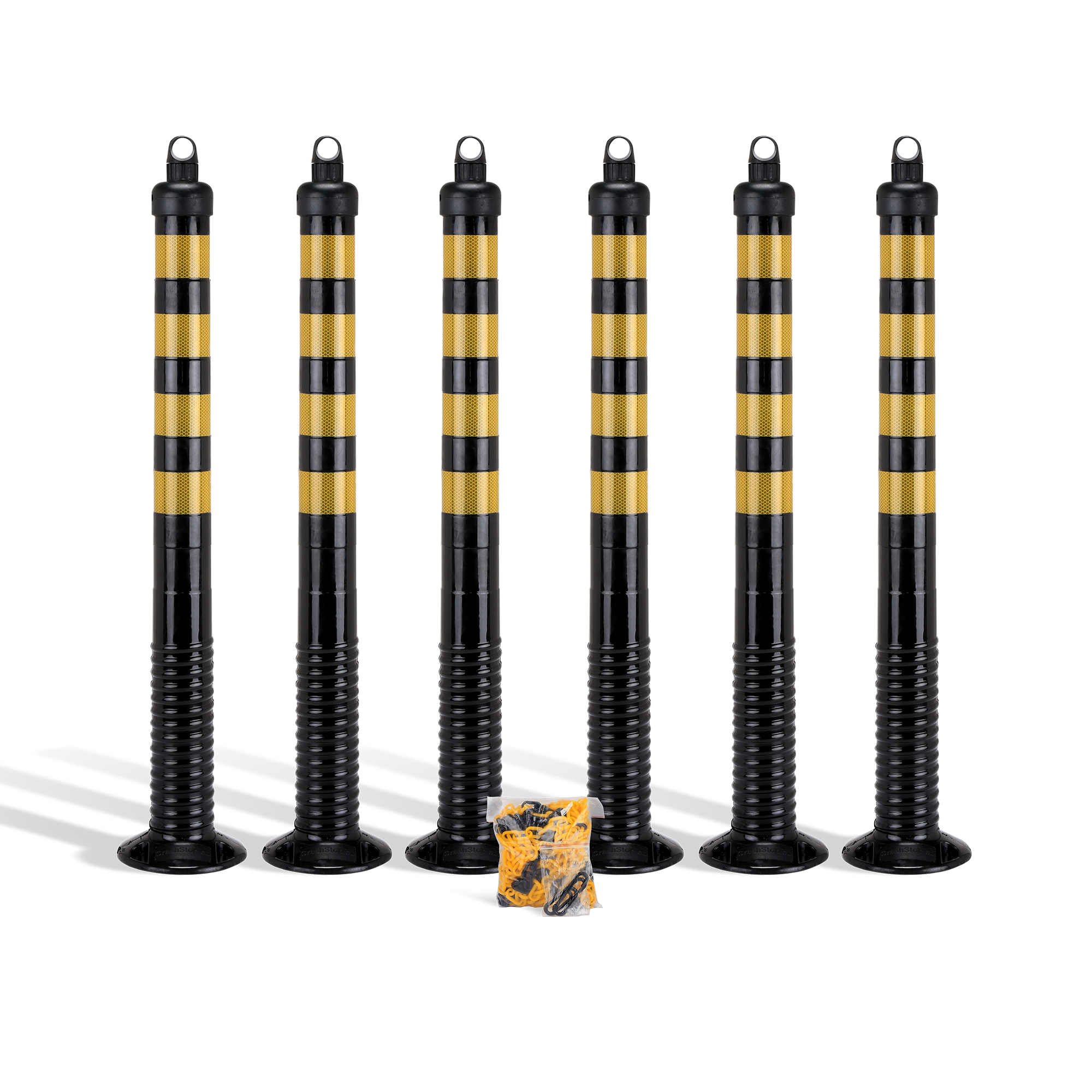

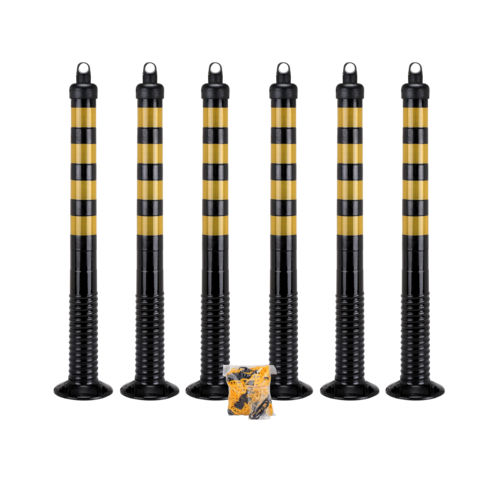

SET-FP-GS-1000 / Front view
