Steel Modular Truck Positionning Aid Red White
LKW-EFH-A RW (GTIN 4250912307797)
Steel Modular Truck Positionning Aid Red White
Description

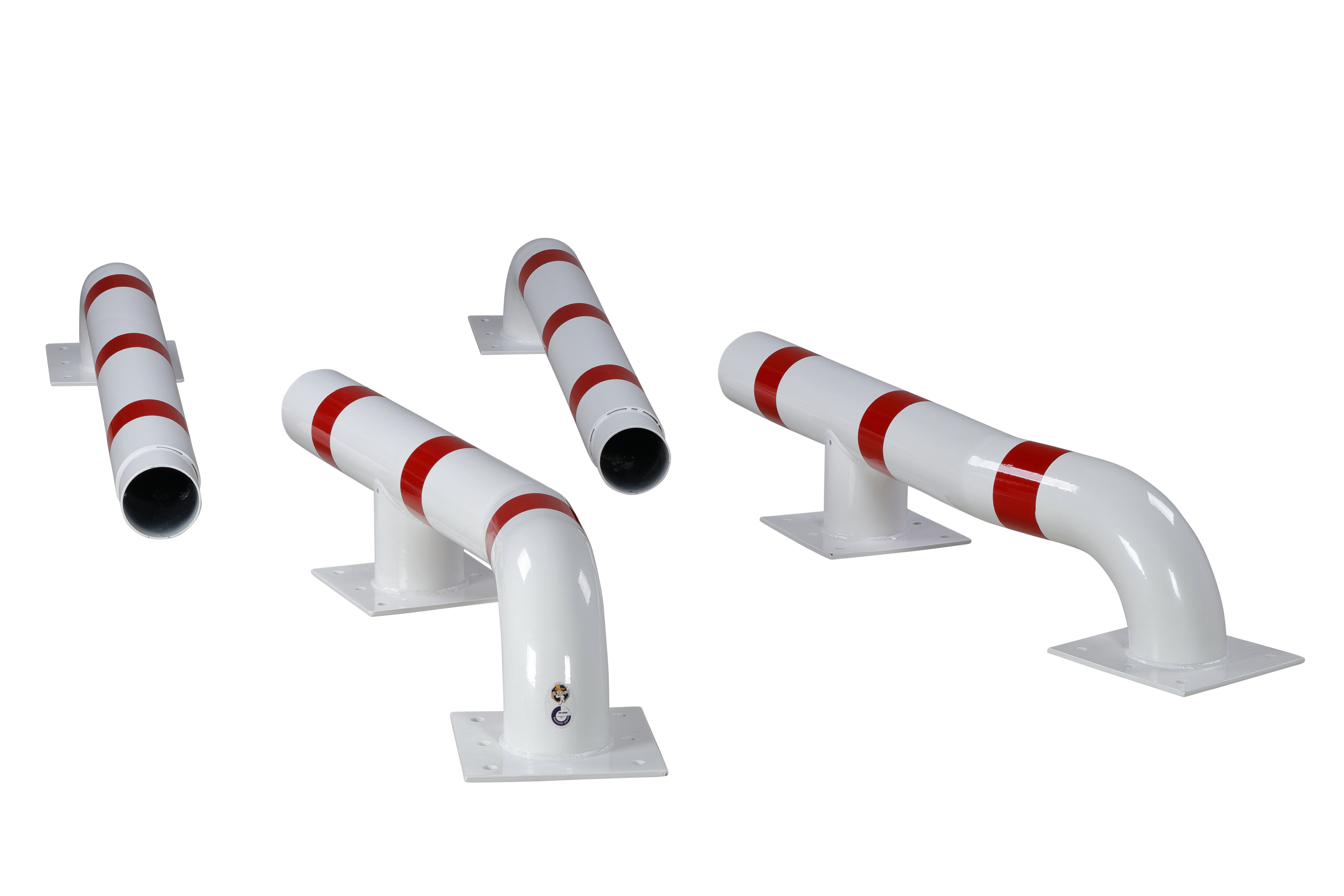

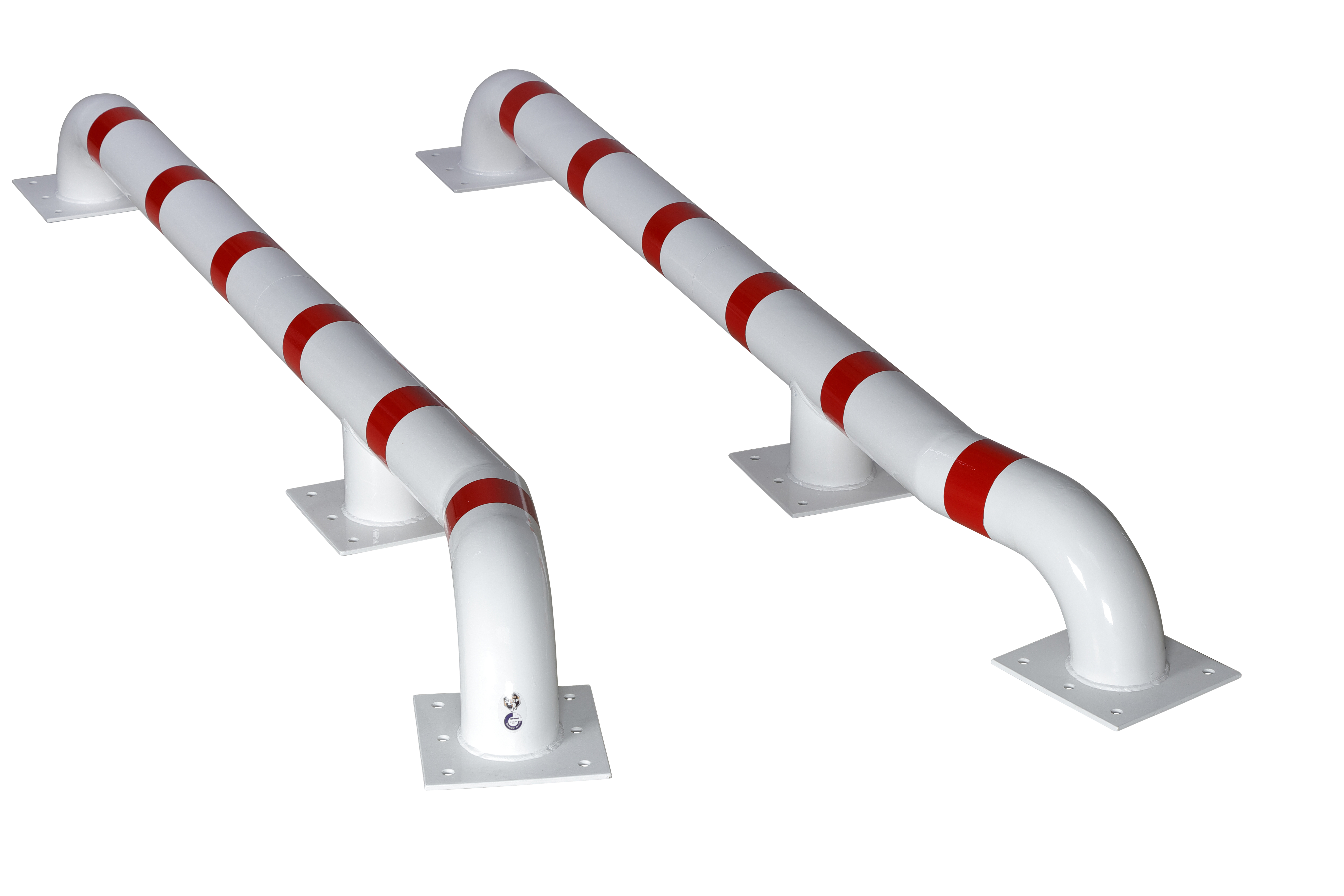

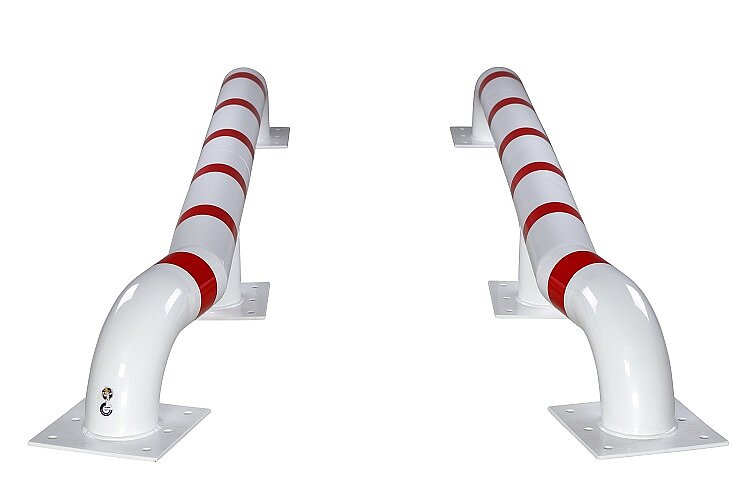

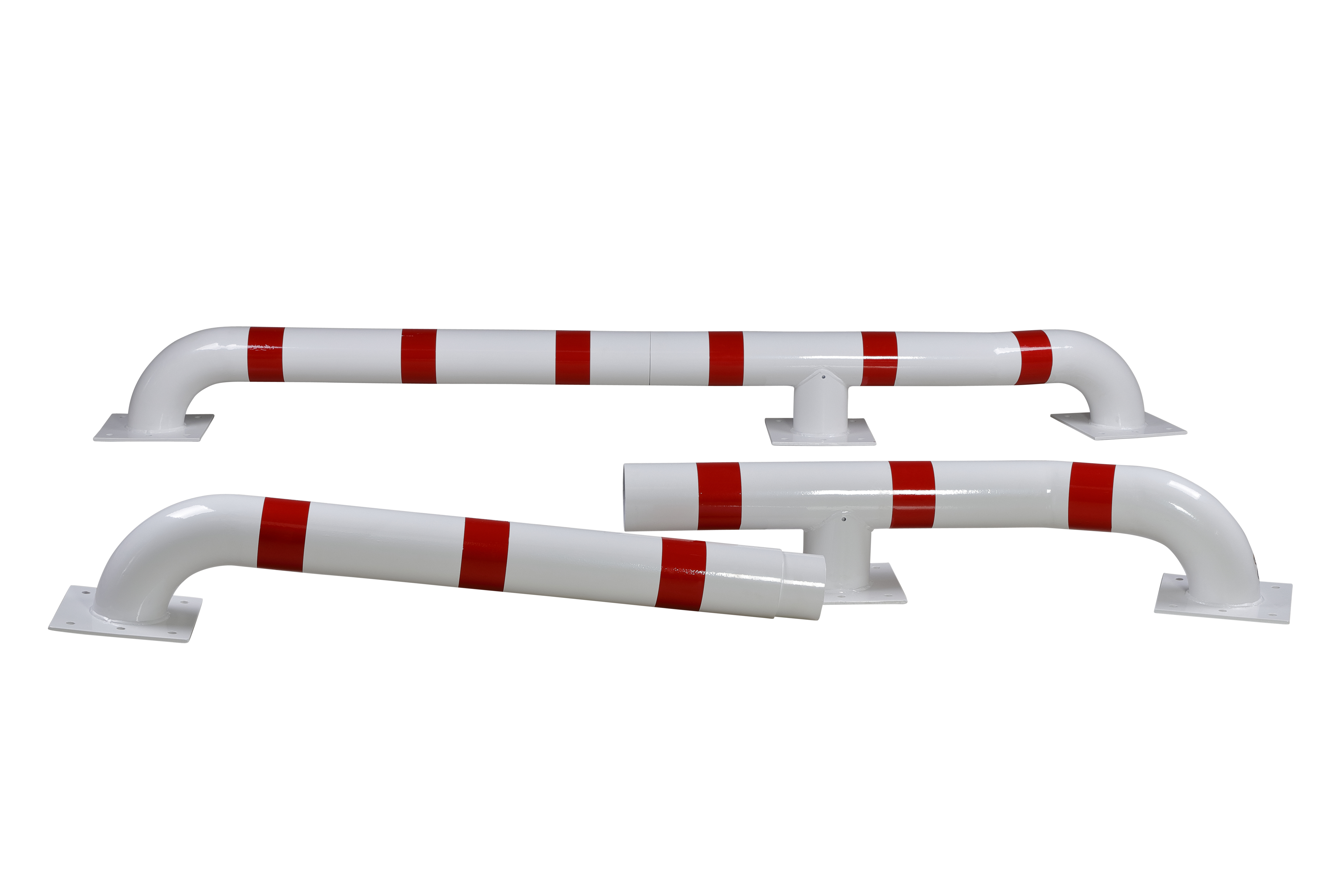

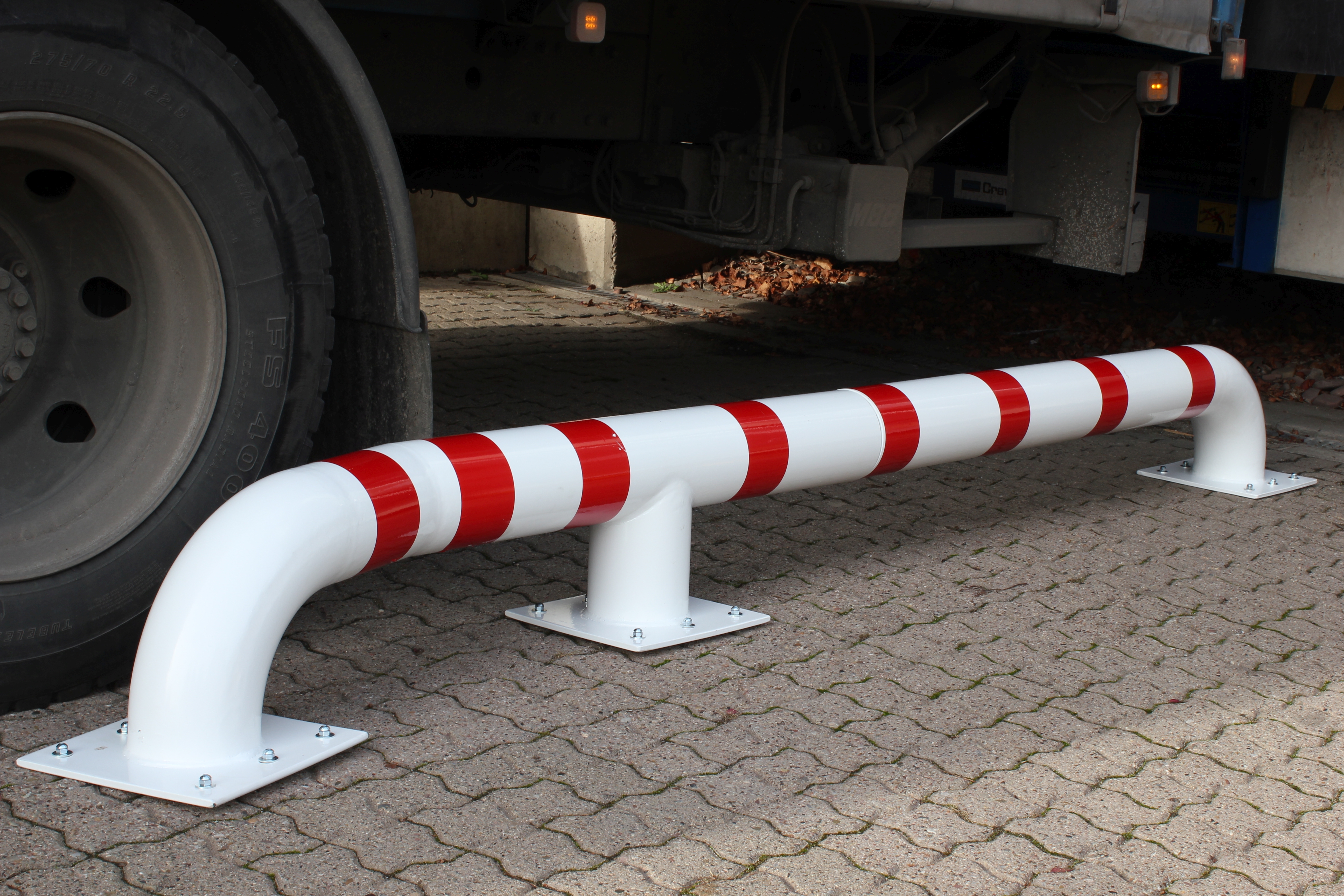

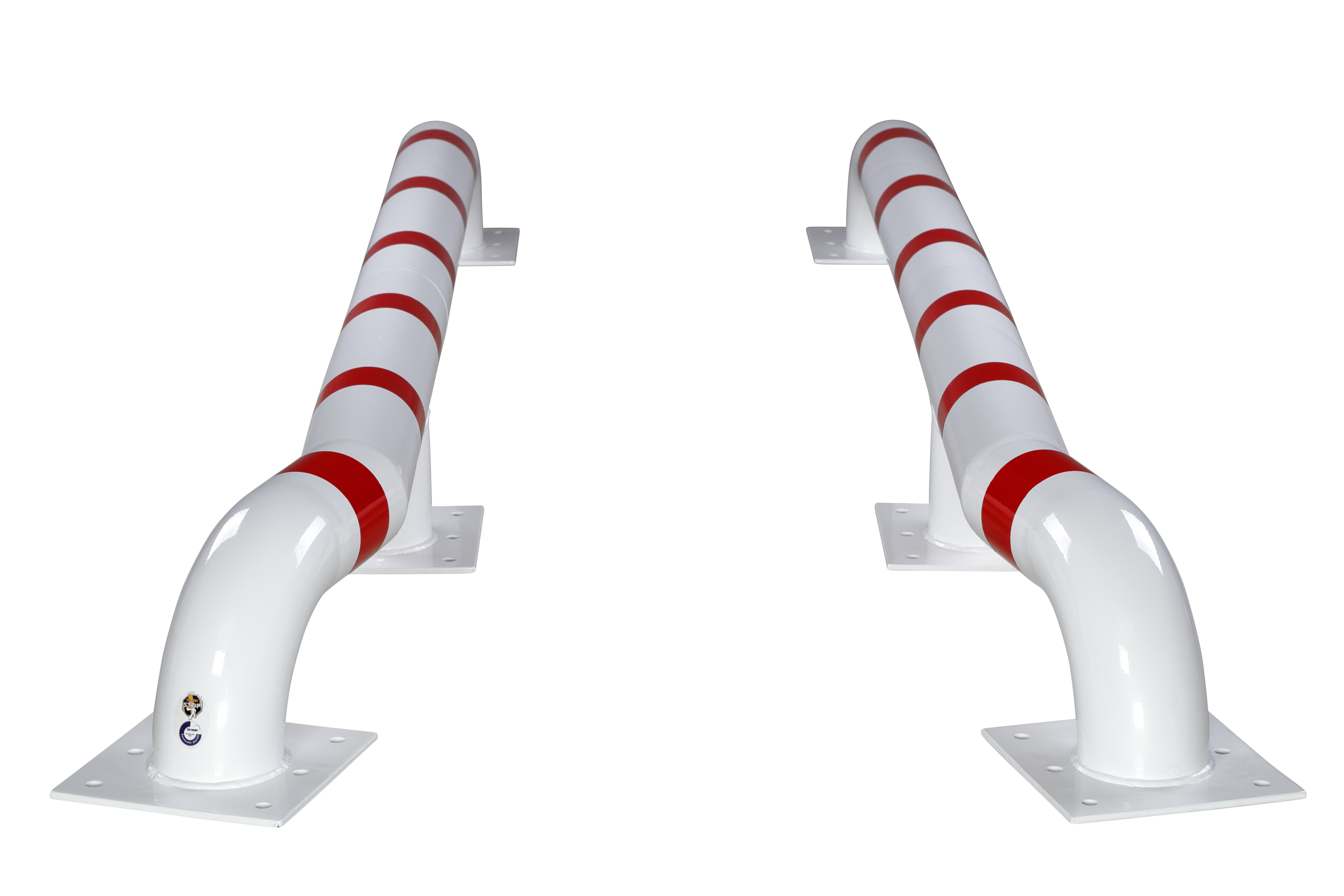

Modular Truck Positioning Aid, Steel, red/white, for floor mounting, galvanized and powdercoated, Width 3000 mm, height over ground 305 mm, with 3 baseplates, opened 15° on the front side, 1 set= 2 beams, weight 150 KG
| Material | Steel |
|---|---|
| Material surface |
|
| Shape | Round |
| Width (mm) | 300 |
| Height (mm) | 315 |
| Depth/Length (mm) | 3000 |
| Net weight (kg) | 150 |
| Diameter (mm) | 159 |
| Area of application | Indoor and outdoor use |
| Mounting location | Paved ground |
| Mounting | Bolting |
| Delivery is | Partly disassembled |
| Number of mounting holes | 36 |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. LKW-EFH-FIX |
| Colour | White |
| Warning mark | Red warning mark |
| Material thickness (mm) | 4,5 |
| Warranty | 1 year |
| Brand | Crash Stop |
| Approval / Certification | TÜV-certified (compliant with DGUV 108-007 / previously BGR 234) |
