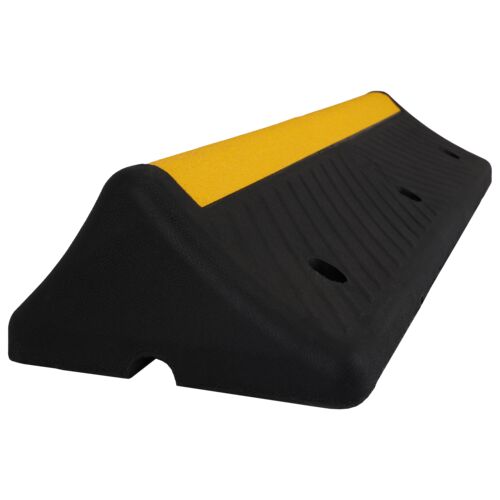

Heavy duty wheel stop
HDWS 100 (GTIN 4250912312456)
Heavy duty wheel stop
Description
A solid truck wheel stop and maneuvering aid for trucks, buses, forklifts, and other large vehicles. It limits the driving path, protecting vehicles, buildings, and machinery. Made of rubber with reflective warning markings. For bolt-down installation.
| Width | 1000 mm |
|---|---|
| Colour | Black |
| Height | 150 mm |
| Material | Synthetic rubber |
| Mounting | Bolting |
| Net weight | 26.973 kg |
| Delivery is | Pre-assembled |
| Depth/Length | 300 mm |
| Gross weight | 28.864 kg |
| Warning mark | Yellow reflective warning mark |
| Area of application | Indoor and outdoor use |
| Mounting location | Paved ground |
| Temperature range | -20° up to +40°C |
| Item discount group | Crash Stop Rubber products |
| Warranty | 1 year |
| Eclass 5.1 Nr. | 40020204 |
| Eclass 6.2 Nr. | 40020204 |
| Eclass 7.1 Nr. | 40020204 |
| Eclass 8.1 Nr. | 40020204 |
| Eclass 9.1 Nr. | 40020204 |
| Eclass 10.1 Nr. | 40020204 |
| Eclass 11.1 Nr. | 40020204 |
| Eclass 12.0 Nr. | 40020204 |
| Eclass 13.0 Nr. | 40020204 |
| ETIM Class Code | EC003588 |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. FS-FIX |
| Number of mounting holes | 5 |
