ECHO corner post 90°

DFVB+M+W90 (GTIN 4250912319806)

ECHO corner post 90°

Description

d-flexx traffic barrier, modular corner post 90°, yellow, made of special plastic. Base plate 225 x 225 mm, steel, black, powder-coated, incl. fixing material.

Material Polyethylene
Colour Yellow - black
Width (mm) 613
Height (mm) 1240
Depth/Length (mm) 613
Net weight (kg) 24,1
Width without foot plate (mm) 611
Depth without foot plate (mm) 611
Area of application Indoor and outdoor use
Mounting Bolting
Delivery is Disassembled
Number of mounting holes 4
Fixing included Concrete screw anchors M12 x 80 mm
Foot plate width (mm) 225
Foot plate depth (mm) 225
Foot plate height (mm) 10
Foot plate colour Black
Tested to withstand force (Joule) IMPACT ZONE 1: 90° 4.000 J
Vehicle weight equivalent (kg) 4.320 kg
Vehicle equivalent speed (km/h) 4,9 km/h
Chemical Resistance High-ISO/TR 10358
Temperature Range -40° bis +50°
Recyclability 100%
Warranty 5 years
Brand D-flexx
Tested according to PAS 13: 2017 chap. 7/7.8

Downloads

Datasheets

Data sheet English Product DFVB+M+W90

PDF, 83,96 KB

Download
ECHO corner post 90°

Impressions

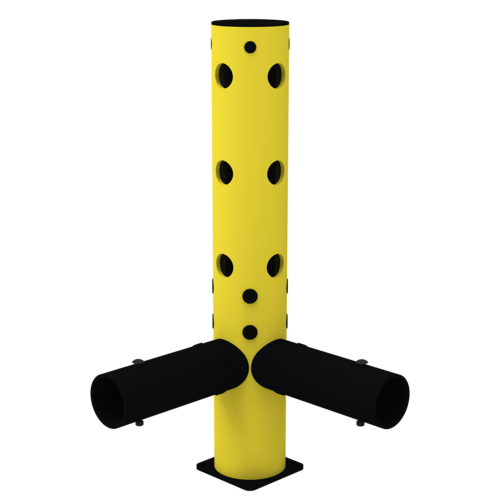

DFVB+M+W90 / 45° front left view
DFVB+M+W90 / 45° front left view
DFVB+M+W90 / 45° front view right
DFVB+M+W90 / 45° front view right
DFVB+M+W90 / 45° rear left view
DFVB+M+W90 / 45° rear left view
DFVB+M+W90 / 45° rear right view
DFVB+M+W90 / 45° rear right view
DFVB+M+W90 / Front view
DFVB+M+W90 / Front view

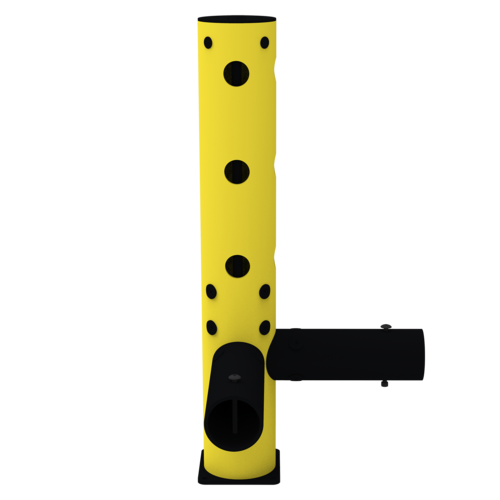

DFVB+M+W90 / Profile view right
DFVB+M+W90 / Profile view right
DFVB+M+W90 / Profile view right
DFVB+M+W90 / Profile view right
DFVB+M+W90 / Rear view
DFVB+M+W90 / Rear view
