ECHO cross post
DFVB+M+K (GTIN 4250912319837)
ECHO cross post
Description

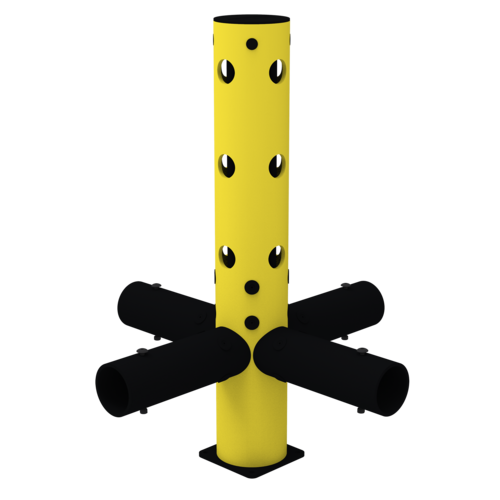

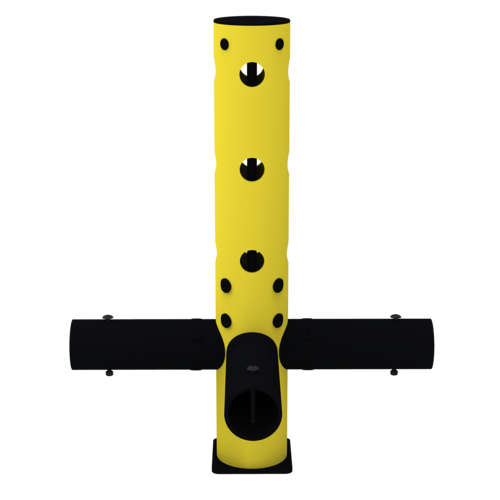

d-flexx traffic barrier, modular corner post 90°, yellow, made of special plastic. Base plate 225 x 225 mm, steel, black, powder-coated, incl. fixing material.
| Material | Polyethylene |
|---|---|
| Colour | Yellow - black |
| Width (mm) | 1000 |
| Height (mm) | 1240 |
| Depth/Length (mm) | 1000 |
| Net weight (kg) | 29,18 |
| Width without foot plate (mm) | 1000 |
| Depth without foot plate (mm) | 1000 |
| Area of application | Indoor and outdoor use |
| Mounting | Bolting |
| Delivery is | Disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M12 x 80 mm |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | Black |
| Tested to withstand force (Joule) | IMPACT ZONE 1: 90° 4.000 J |
| Vehicle weight equivalent (kg) | 4.320 kg |
| Vehicle equivalent speed (km/h) | 4,9 km/h |
| Chemical Resistance | High-ISO/TR 10358 |
| Temperature Range | -40° bis +50° |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | D-flexx |
| Tested according to | PAS 13: 2017 chap. 7/7.8 |
