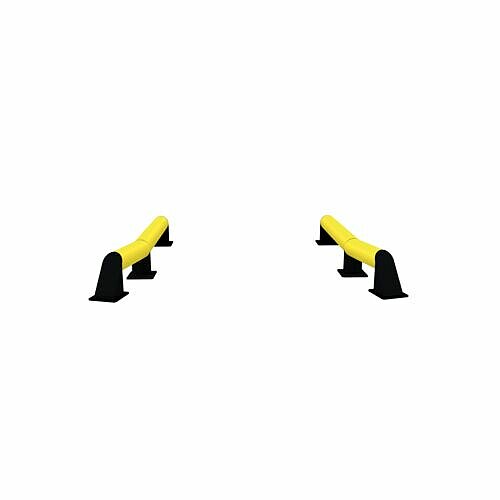

Truck guide ROMEO 2000
DFRO-L2000 (GTIN 4250912314139)
Truck guide ROMEO 2000
Description
Modular truck guide d-flexx, for mounting, length 2000 mm, height above floor 155 mm, three foot plates per side, entry angle 15°, 1 set = 2 wings, weight: 75.5
| Shape | Round |
|---|---|
| Width | 225 mm |
| Colour | Yellow |
| Height | 315 mm |
| Diameter | 160 mm |
| Material | Polyethylene |
| Mounting | Bolting |
| Net weight | 75.5 kg |
| Delivery is | Disassembled |
| Depth/Length | 2000 mm |
| Product type | ROMEO |
| Foot plate depth | 225 mm |
| Foot plate width | 225 mm |
| Material surface | Powder coated |
| Area of application | Indoor and outdoor use |
| Foot plate colour | Black |
| Foot plate height | 10 mm |
| Temperature range | -40° to +50° |
| Installation width | 410 mm |
| Material thickness | 9 mm |
| Chemical Resistance | High-ISO/TR 10358 |
| Item discount group | d-flexx Products |
| Material properties | Flexible |
| Fixing holes Ø | 24 mm |
| Width without foot plate | 160 mm |
| Contain | 2x 870012x 870021x 870041x 870052x 871031x 871041x 87105 |
| Warranty | 5 years |
| Sales drawing | DFRO_L2000_SD |
| Recyclability | 100% |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. LKW-EFH-ROMEO-FIX |
| Number of mounting holes | 24 |
