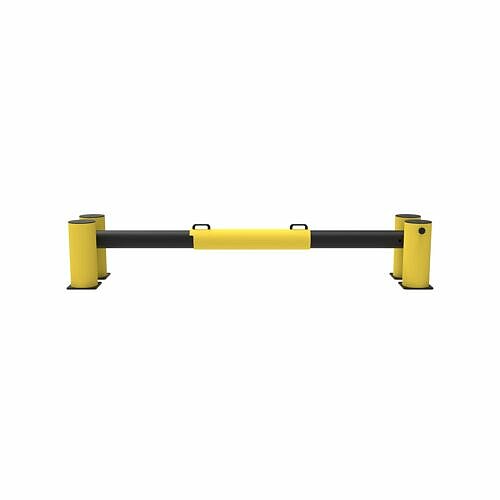

d-flexx Dockgate November, opening width 2300mm
DFNO-W2300 (GTIN 4250912395886)
d-flexx Dockgate November, opening width 2300mm
Description
d-flexx Dock Gate November for safety in the loading dock area, made of special flexible material, for indoor and outdoor use, interior length 2300 mm, width 2777 mm, including fixing material
| Width | 2777 mm |
|---|---|
| Colour | Yellow - black |
| Height | 500 mm |
| Vehicle | LPG forklift |
| Material | Polyethylene |
| Mounting | Bolting |
| Net weight | 56.2 kg |
| Delivery is | Pre-assembled |
| Depth/Length | 585 mm |
| Gross weight | 58.2 kg |
| Product type | NOVEMBER |
| Foot plate depth | 225 mm |
| Foot plate width | 225 mm |
| Inclination angle | 15 degree |
| Area of application | Indoor and outdoor use |
| Foot plate colour | Black |
| Foot plate height | 10 mm |
| Mounting location | Paved ground |
| Temperature range | -40° to +50° |
| Installation width | 2777 mm |
| Chemical Resistance | High-ISO/TR 10358 |
| Item discount group | d-flexx Products |
| Interior measurement | 2300 |
| Depth without foot plate | 535 mm |
| Vehicle equivalent speed | 4.9 kilometer_per_hour |
| Width without foot plate | 2777 mm |
| Vehicle weight equivalent | 4320 kg |
| Deformation under maximal force | 250 mm |
| Warranty | 5 years |
| Sales drawing | DFNO_W2300_SD, DFNO_W2300_SD_ENU |
| Eclass 6.2 Nr. | 22520390 |
| Eclass 7.1 Nr. | 22520390 |
| Eclass 8.1 Nr. | 22520390 |
| Eclass 9.1 Nr. | 22520390 |
| Recyclability | 100% |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| Eclass 12.0 Nr. | 22520390 |
| Eclass 13.0 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
| Fixing included | Concrete screw anchors M12 x 80 mm |
| Tested according to | PAS 13: 2017 chap. 7/7.8 |
| Number of mounting holes | 16 |
