LIMA corner post 90°
DFDH-M-W90 (GTIN 4250912319844)

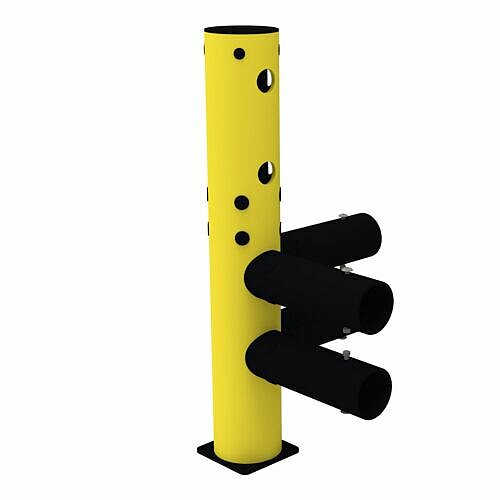

LIMA corner post 90°
Description
d-flexx traffic barrier, modular corner post 90°, yellow, made of special plastic. Base plate 225 x 225 mm, steel, black, powder-coated, incl. fixing material.
| Width | 613 mm |
|---|---|
| Colour | Yellow - black |
| Height | 1240 mm |
| Vehicle | LPG forklift |
| Material | Polyethylene |
| Mounting | Bolting |
| Net weight | 30 kg |
| Delivery is | Disassembled |
| Depth/Length | 613 mm |
| Product type | LIMA |
| Foot plate depth | 225 mm |
| Foot plate width | 225 mm |
| Area of application | Indoor and outdoor use |
| Foot plate colour | Black |
| Foot plate height | 10 mm |
| Temperature range | -40° to +50° |
| Chemical Resistance | High-ISO/TR 10358 |
| Item discount group | d-flexx Products |
| Depth without foot plate | 611 mm |
| Vehicle equivalent speed | 4.9 kilometer_per_hour |
| Width without foot plate | 611 mm |
| Vehicle weight equivalent | 4320 kg |
| Warranty | 5 years |
| Recyclability | 100% |
| Fixing included | Concrete screw anchors M12 x 80 mm |
| Tested according to | PAS 13: 2017 chap. 7/7.8 |
| Number of mounting holes | 4 |
