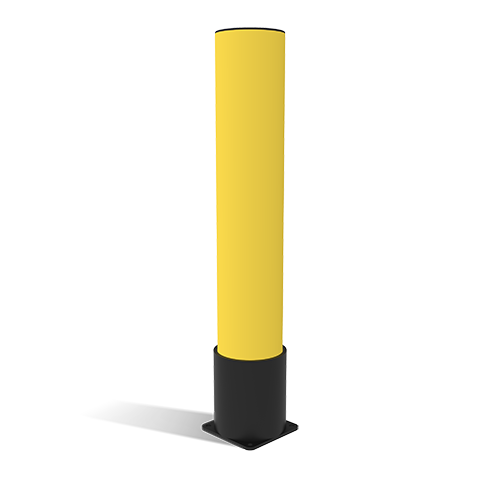

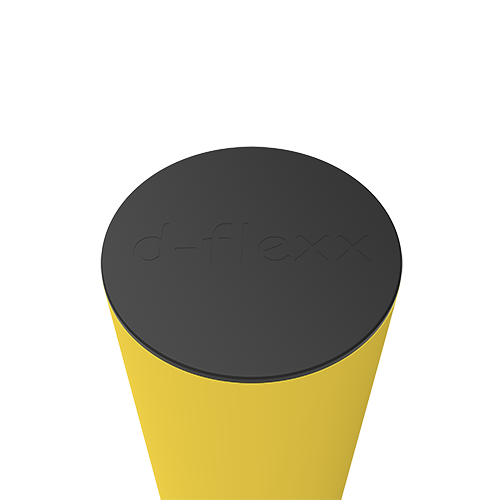

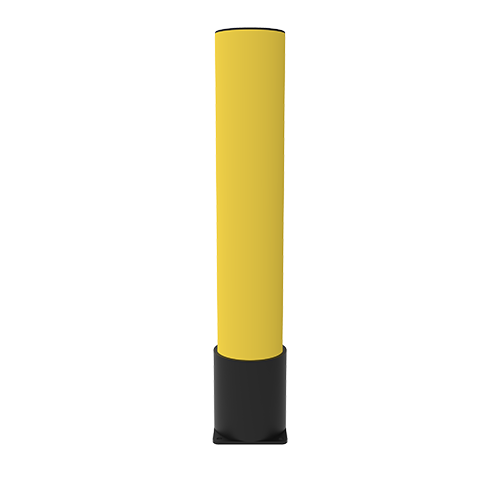

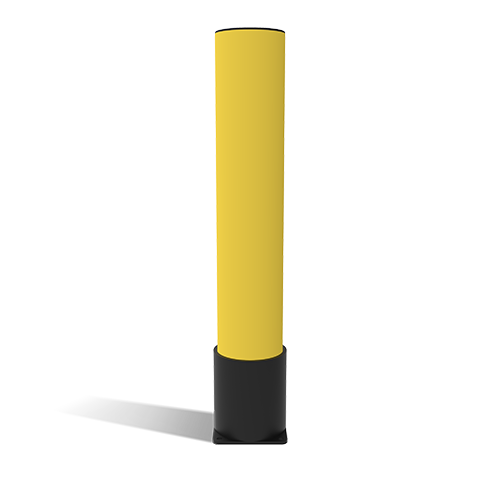

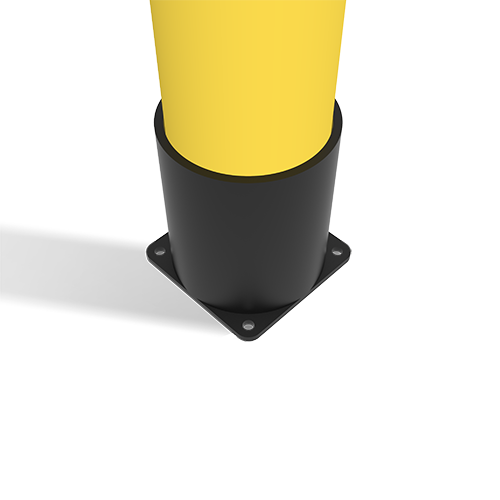

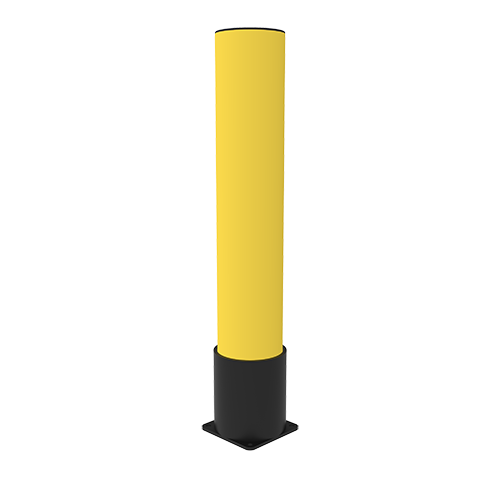

Bollard BRAVO 1200mm, with rotatable cuff
DFBO50-30 (GTIN 4250912311343)
Bollard BRAVO 1200mm, with rotatable cuff
Description
d-flexx bollard BRAVO height 1200 mm with mocable cuff , made of special synthetic material, bolt fixing, anchors included
| Material | Polyethylene |
|---|---|
| Width (mm) | 225 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 225 |
| Diameter (mm) | 200 |
| Net weight (kg) | 21,1 |
| Gross weight (kg) | 21,935 |
| Width without foot plate (mm) | 225 |
| Depth without foot plate (mm) | 225 |
| Colour | Yellow - black |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | Black |
| Area of application | Indoor and outdoor use |
| Mounting | Bolting |
| Delivery is | Pre-assembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M12 x 80 mm |
| Tested to withstand force (Joule) | IMPACT ZONE 4: 90° 4.000 J |
| Vehicle | LPG forklift |
| Vehicle weight equivalent (kg) | 4.320 kg |
| Vehicle equivalent speed (km/h) | 4,9 km/h |
| Approval / Certification | TÜV-GS certified PAS 13: 2017 Kap 7/7.8 |
| Inclination angle | 15° |
| Chemical Resistance | High-ISO/TR 10358 |
| Temperature Range | -40° bis +50° |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | D-flexx |
