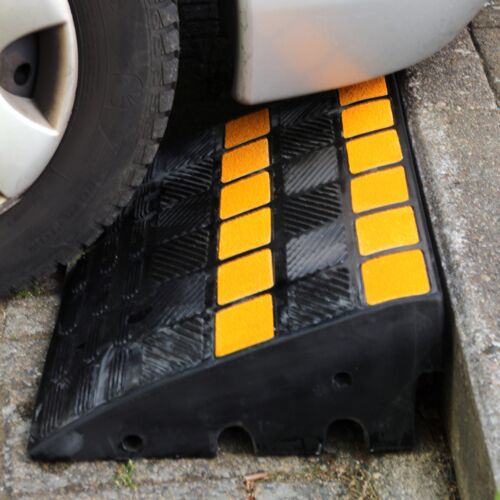

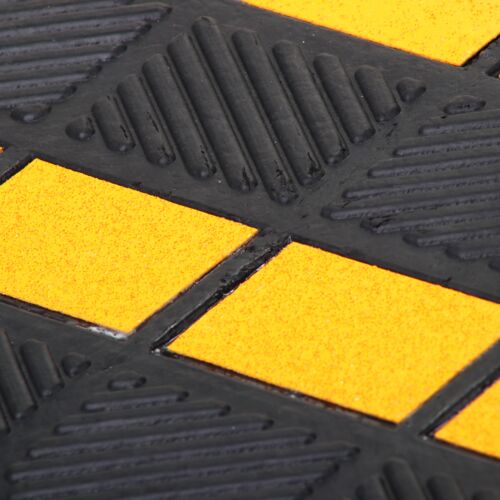

Curb ramps enable barrier-free access across sidewalks, steps, or raised edges for pedestrians, wheelchairs, and trolleys. The profiled surface provides secure, slip-resistant grip. For permanent use, they can additionally be screwed down for a fixed installation.
Material
Synthetic rubber
Mounting
Freestanding bolting
Warning mark
Yellow warning mark
Area of application
Indoor and outdoor use
Item discount group
Crash Stop Rubber products
Warranty
1 year
Fixing included
no
Accessories (optional)
Mounting Art. No. FS-FIX
Number of mounting holes
2+2
Variants

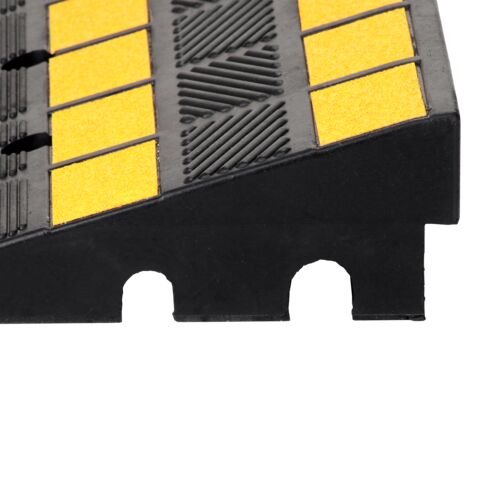

Kerb ramp ( black, 100mm )
BSR100 (EAN / GTIN: 4250912309272)
Ramp made of hard rubber 100 mm height, black with yellow reflective foil, capacity 40 t, width 600 mm, length 300 mm, with 2 cable channels (1x30 mm and 1 x 25 mm), for outdoor and indoor use
Width
600 mm
Colour
Black
Height
100 mm
Features
Passable up to 9t axle load
Net weight
11.76 kg
Delivery is
Pre-assembled
Depth/Length
300 mm
Gross weight
12.109 kg

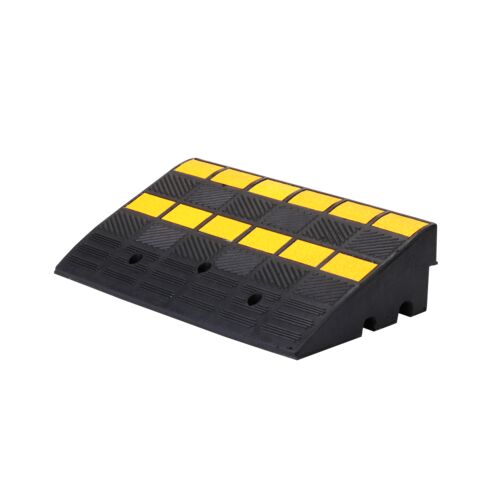

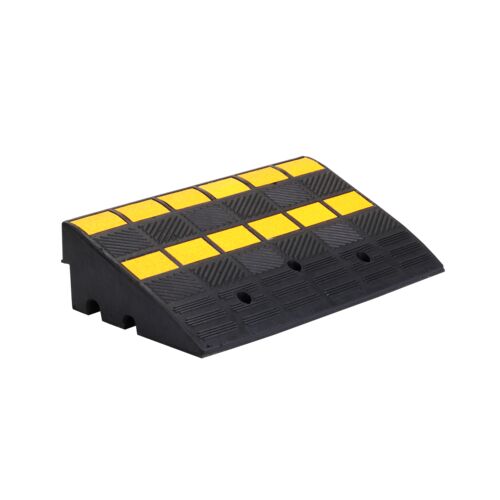

Kerb ramp ( black, 150mm )
BSR150 (EAN / GTIN: 4250912309289)
Ramp made of hard rubber 150 mm height, black with yellow reflective foil, capacity 40 t, width 600 mm, length 360 mm, with 2 cable channels (1x30 mm and 1 x 25 mm), for outdoor and indoor use
