Expanding barrier red-white 3600mm 70x70
70-95 (GTIN 4250912308169)
Expanding barrier red-white 3600mm 70x70
Description

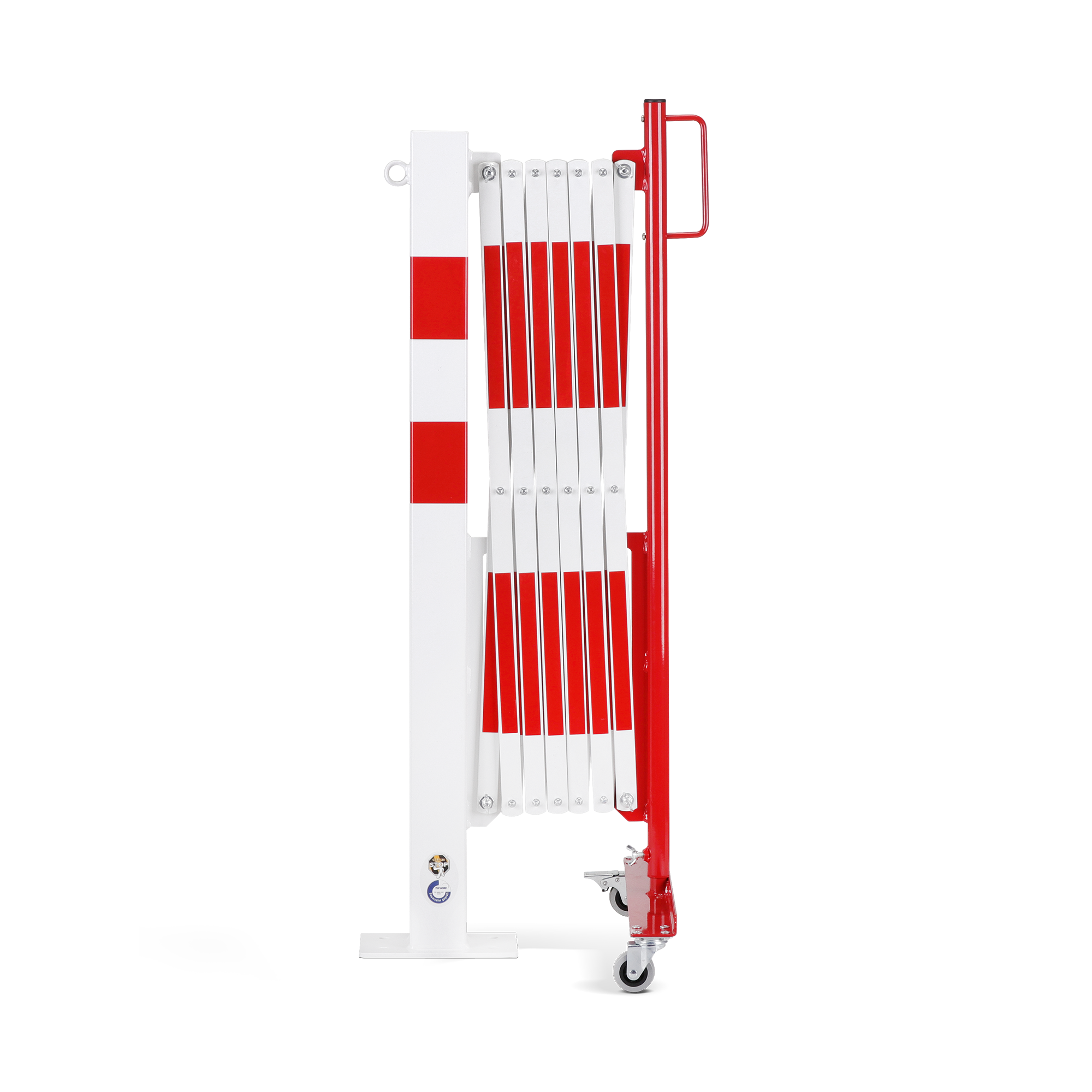

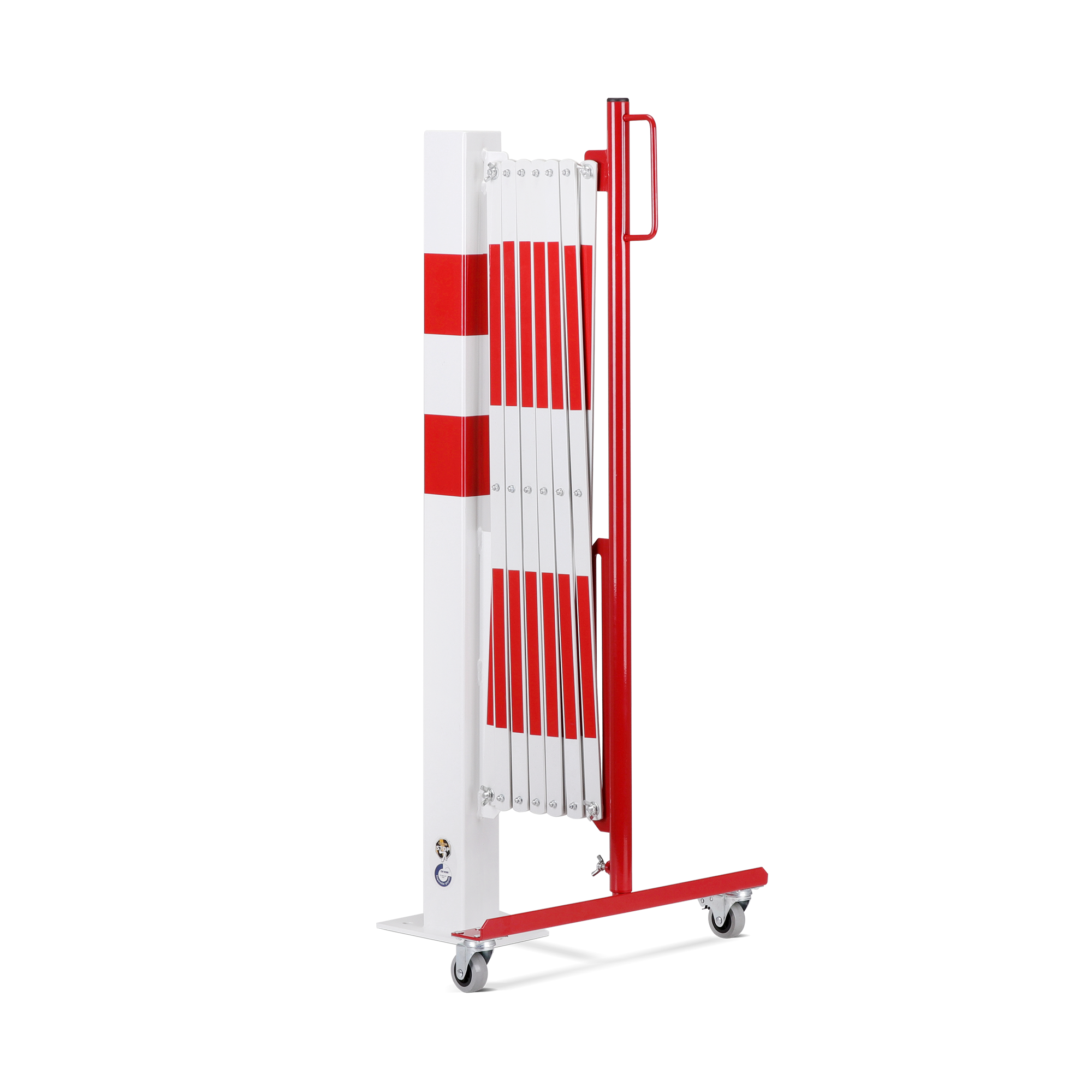

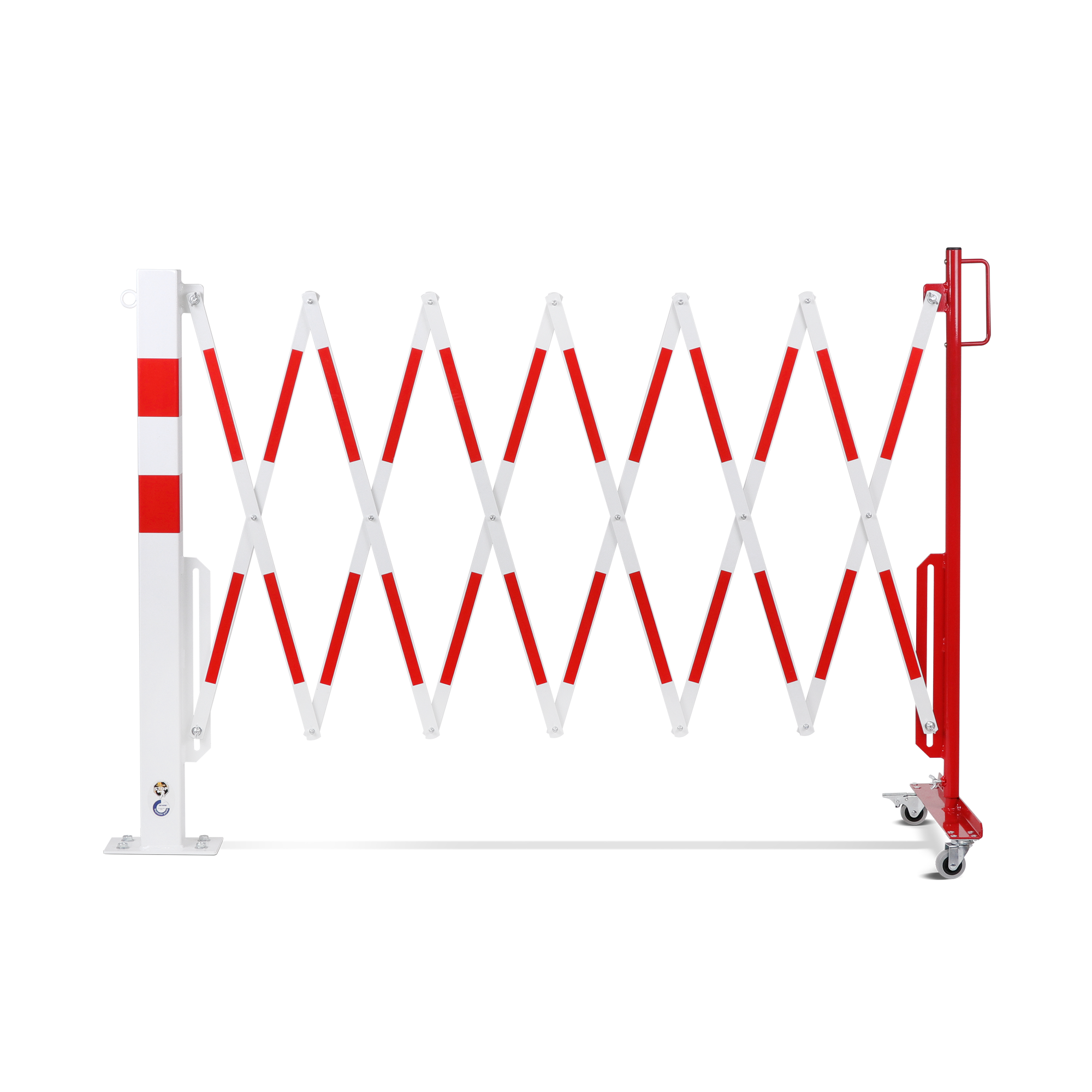

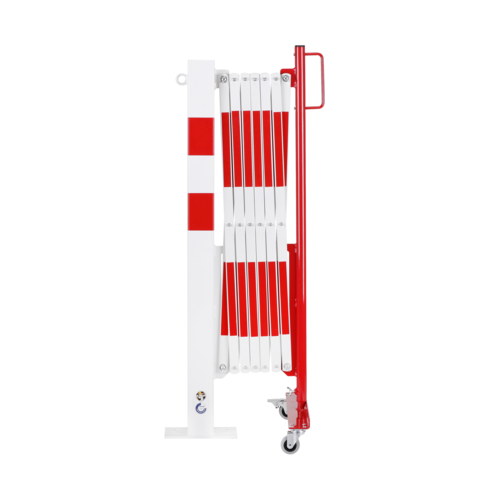

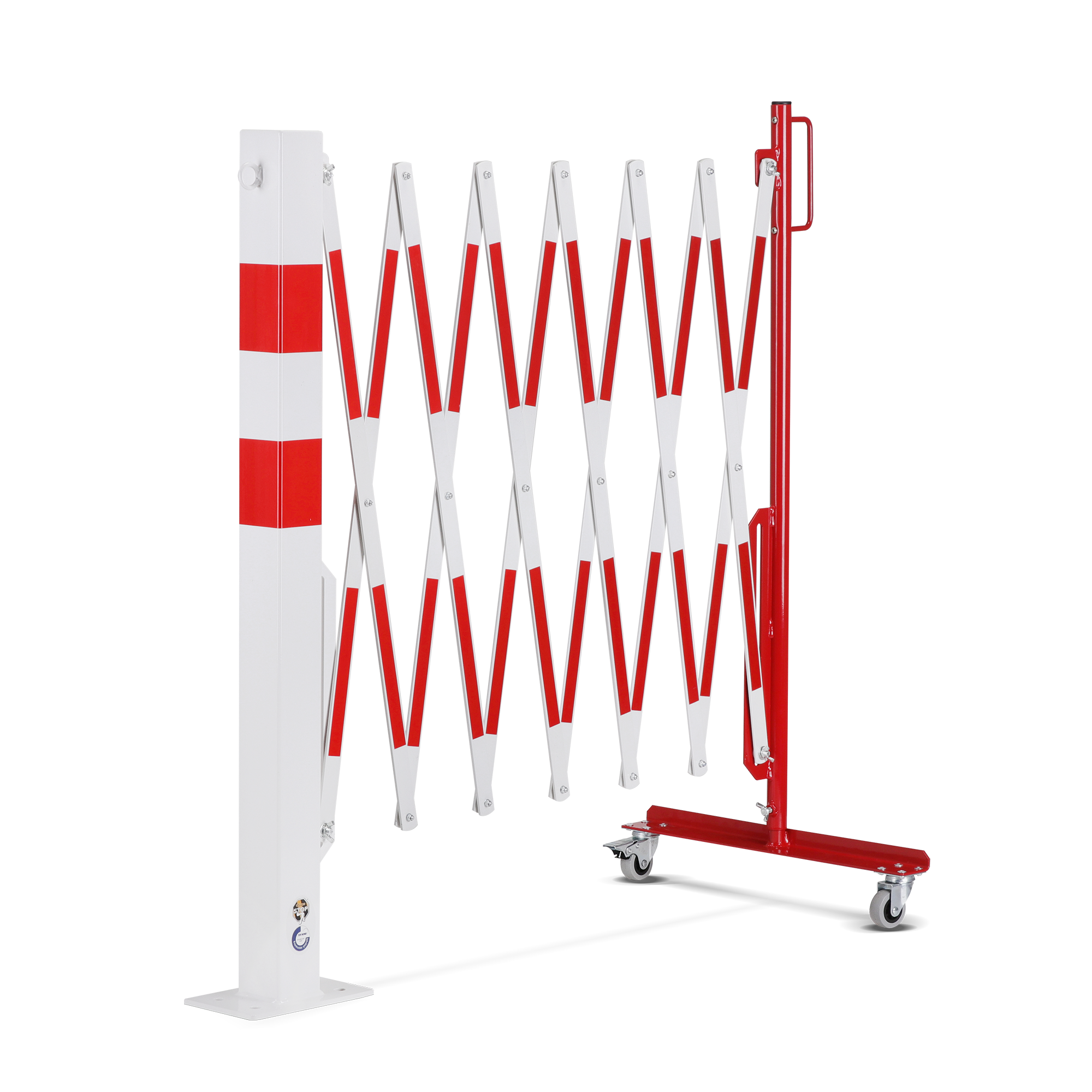

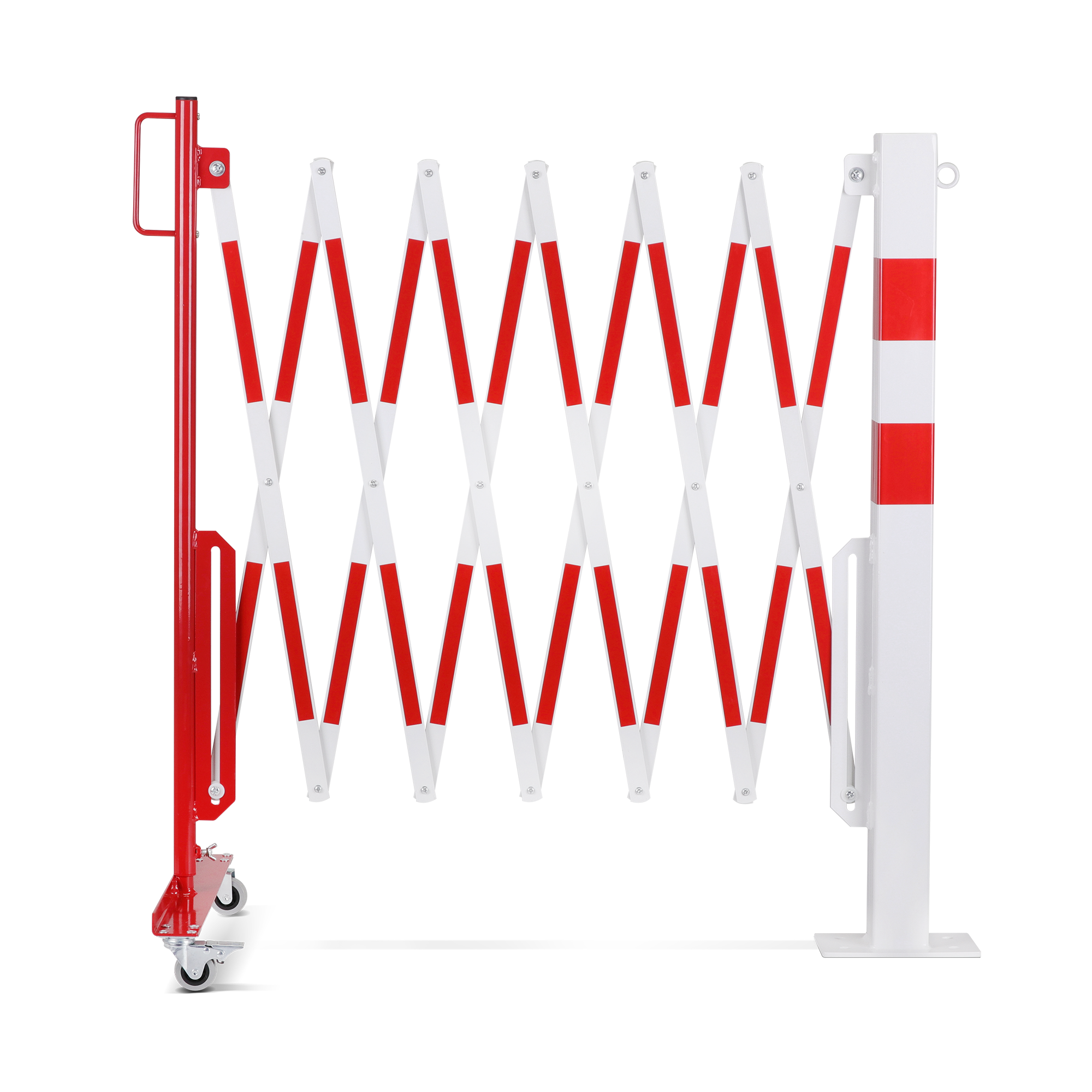

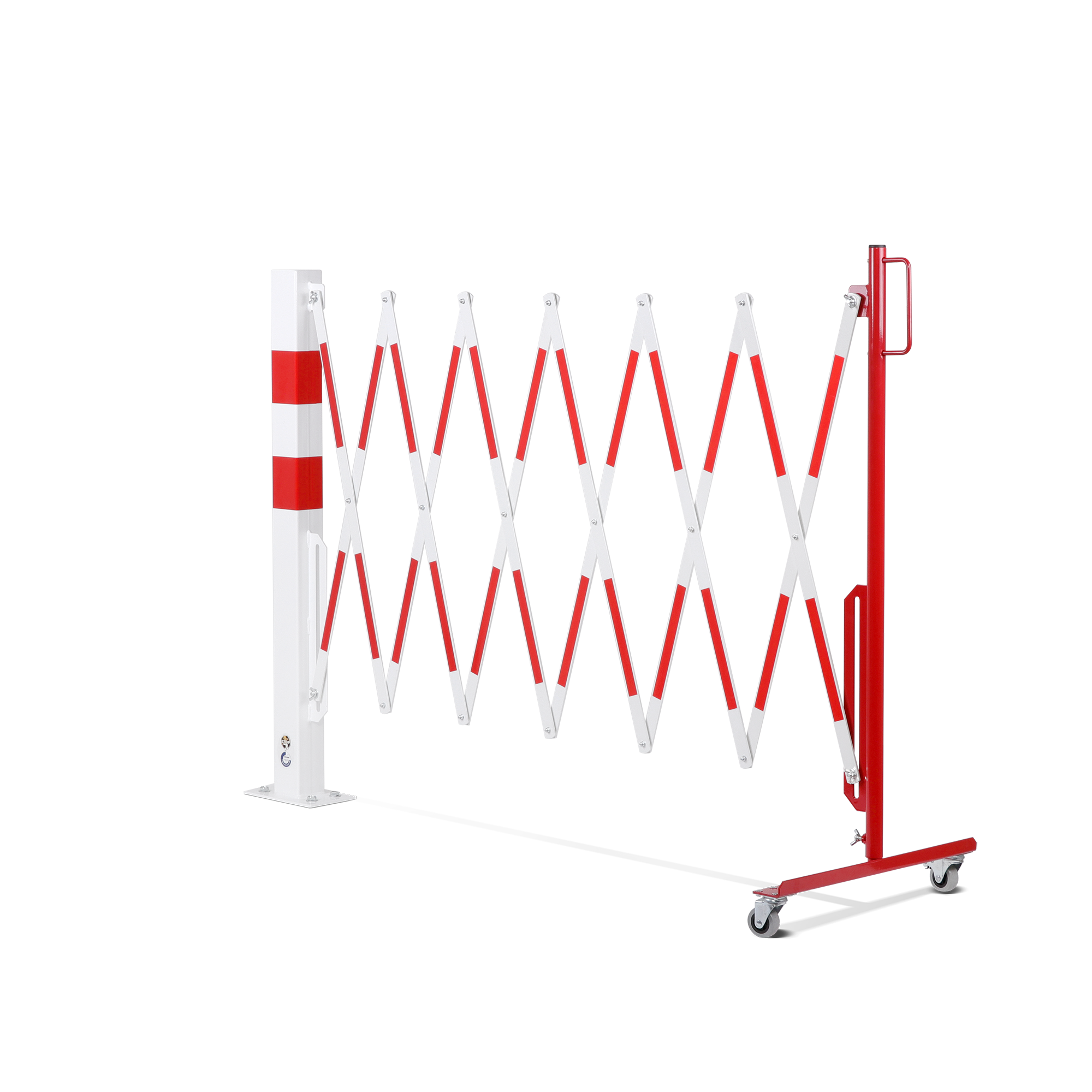

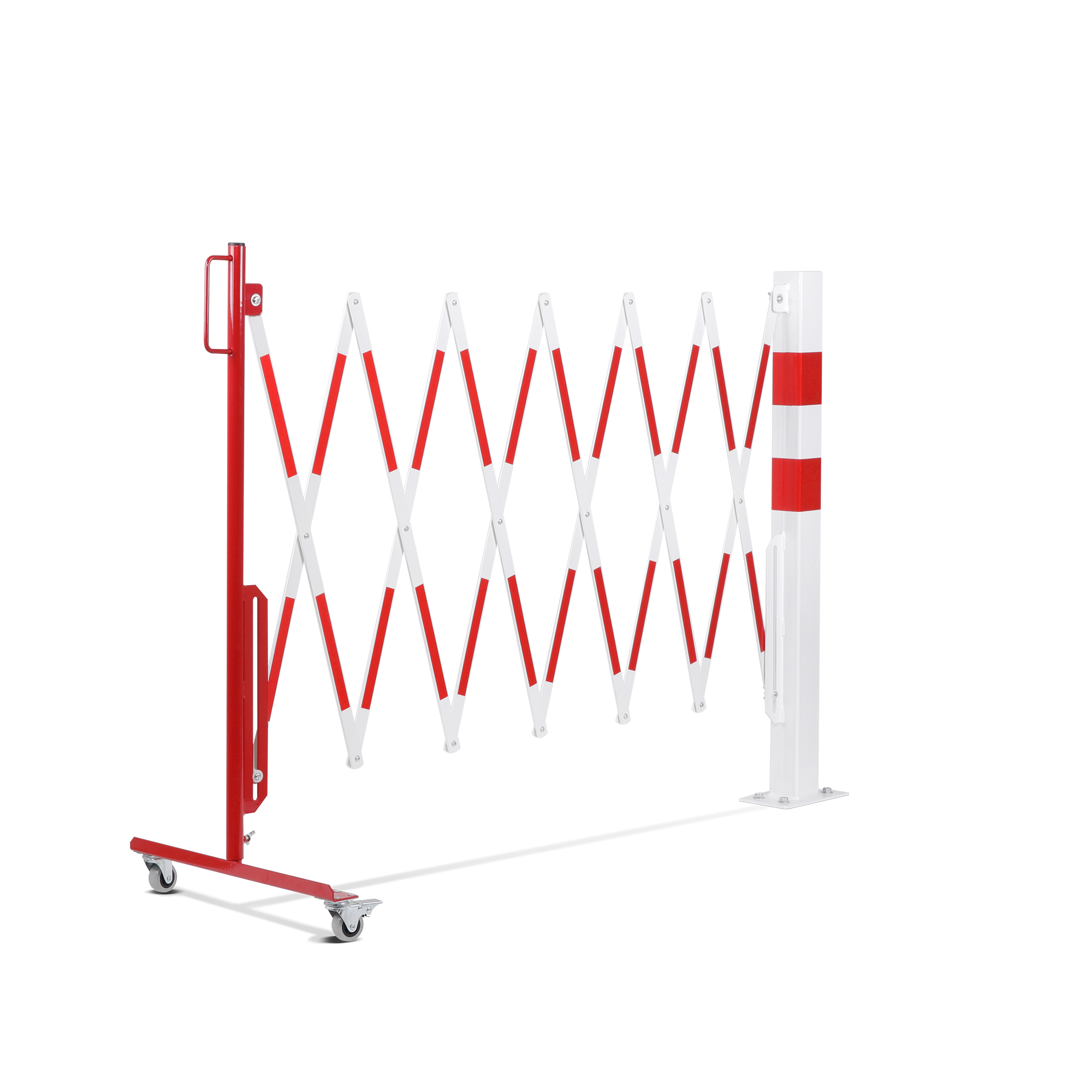

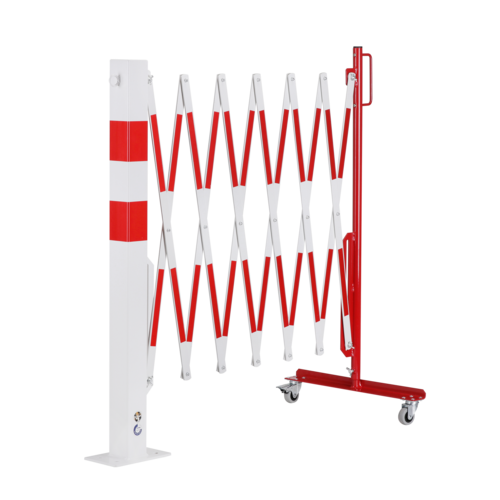

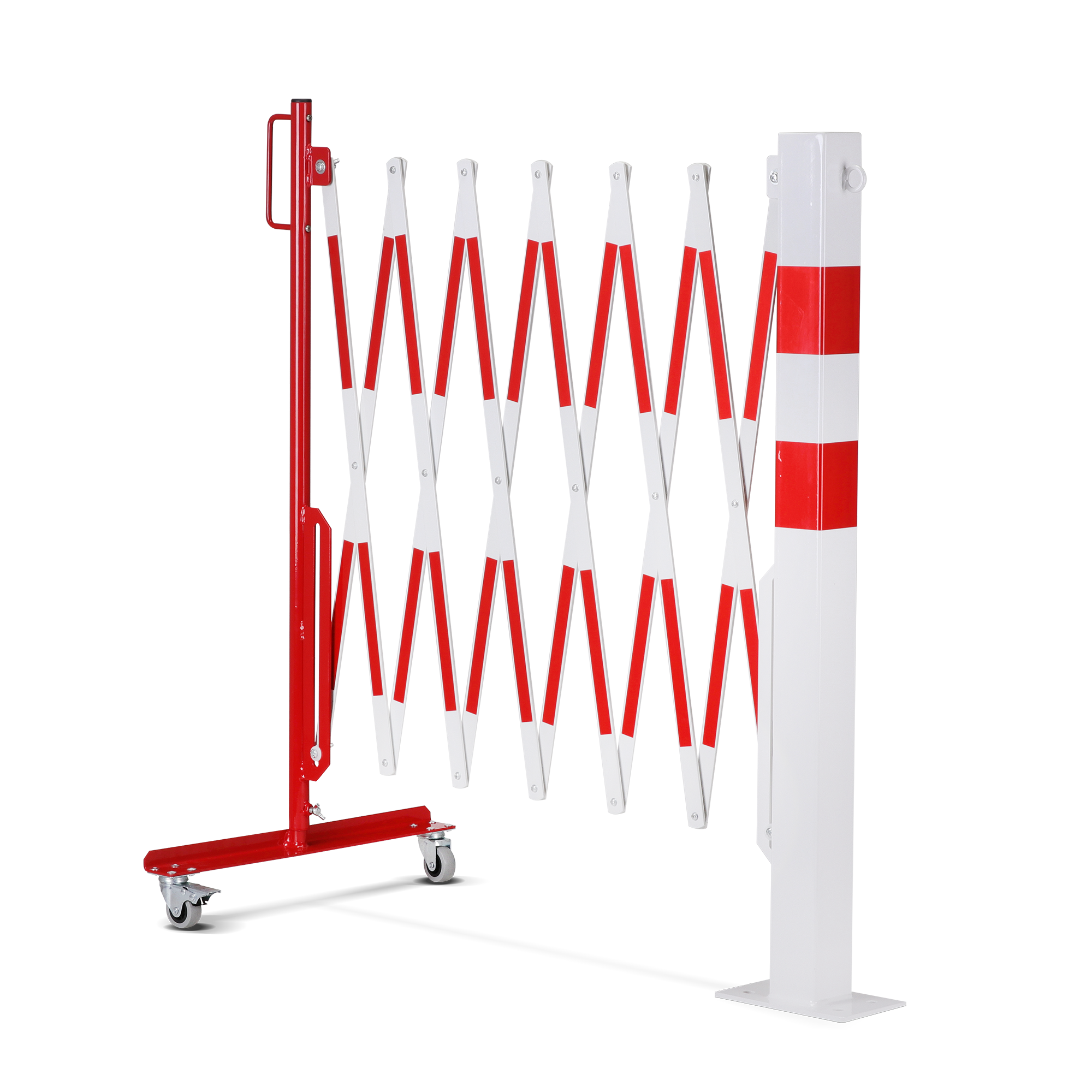

Post for floor mounting with expanding barrier, 70 x 70 mm, red/white steel, flat steel 25 x 4 mm, width 3600 mm, red/white
| Width (mm) | 3600 |
|---|---|
| Depth/Length (mm) | 575 |
| Height (mm) | 1005 |
| Net weight (kg) | 15,974 |
| Material | Steel |
| Material surface | Powder coated |
| Material thickness (mm) | 4 |
| Colour | Red - white |
| Warning mark | Red reflective warning mark |
| Area of application | Indoor use |
| Mounting location | Paved ground |
| Mounting | Bolting |
| Number of mounting holes | 4 |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. FIX 1 |
| Features | 1 stand post, 1 roller foot |

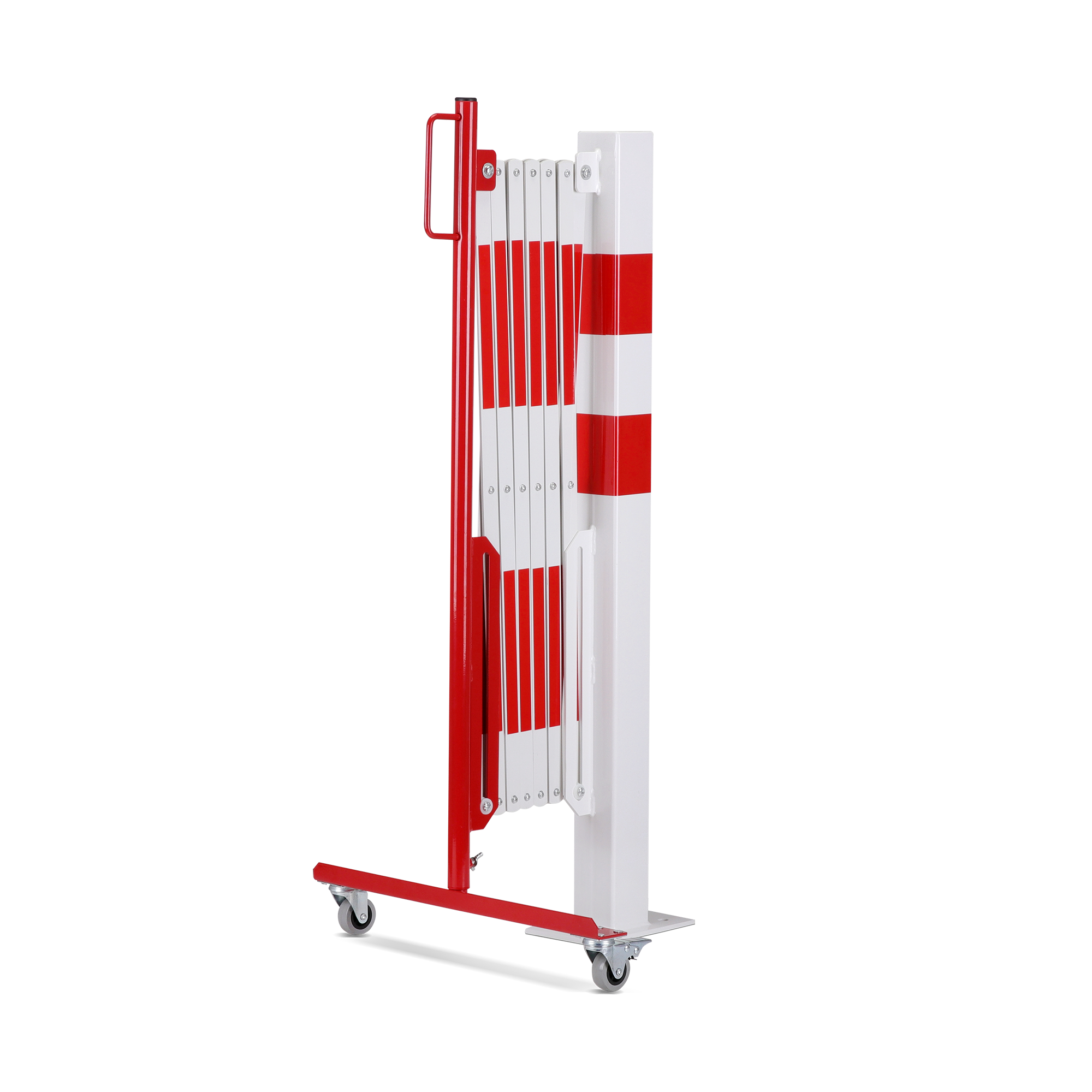

| Width when compressed (mm) | 335 |
| Height of the grid compressed (mm) | 800 |
| Height of the grid expanded |
|
| Height above ground compressed (mm) | 170 |
| Number of castors/wheels | 2 |
| Foot plate width (mm) | 195 |
| Foot plate depth (mm) | 120 |
| Foot plate height (mm) | 6 |
| Brand | Crash Stop |
| Approval / Certification | TÜV-certified (compliant with DGUV 108-007 / previously BGR 234) |
| Eclass 10.1 Nr. | 22490302 |
