Expanding barrier red-white 3600mm wall
70-10W (GTIN 4250912303676)
Expanding barrier red-white 3600mm wall
Description

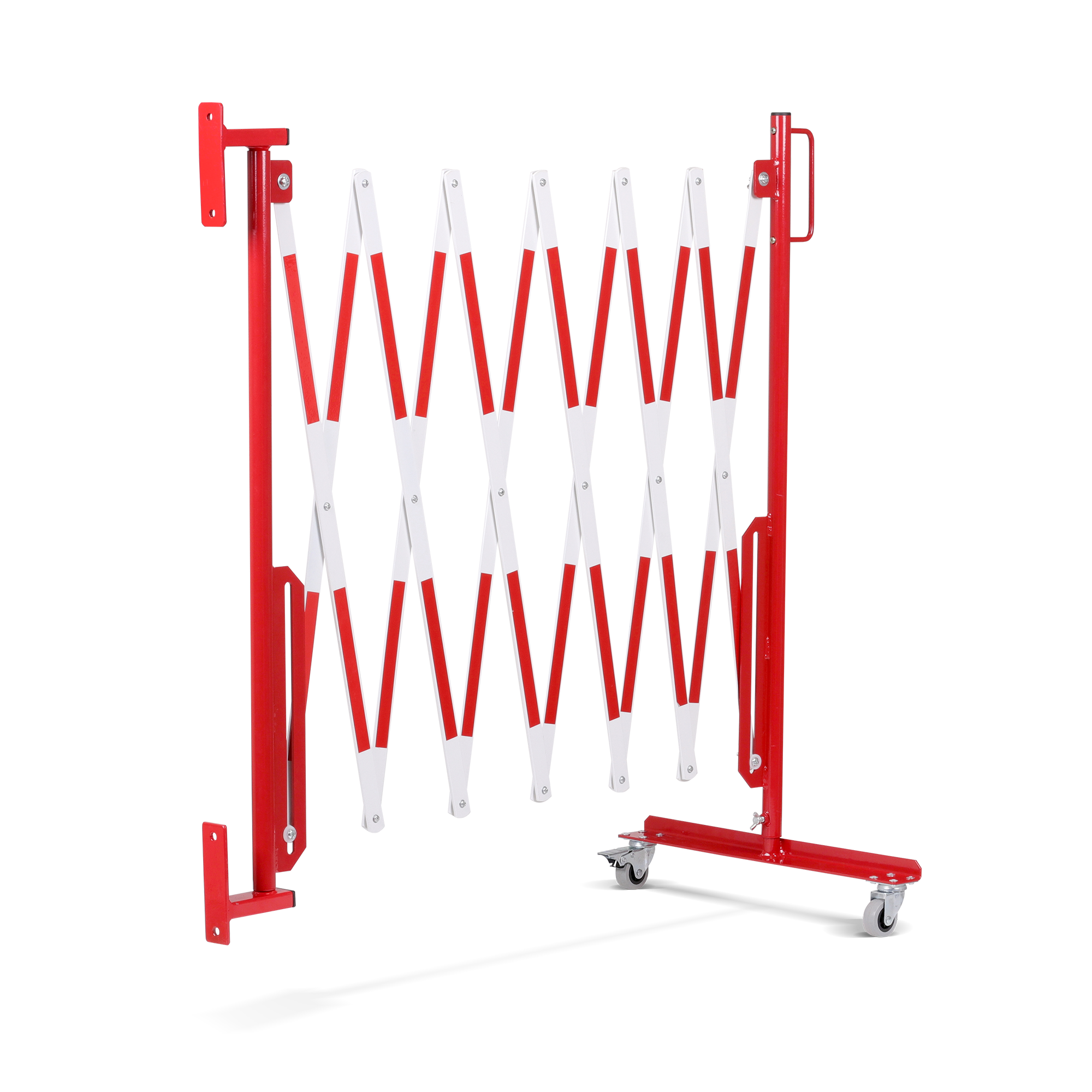

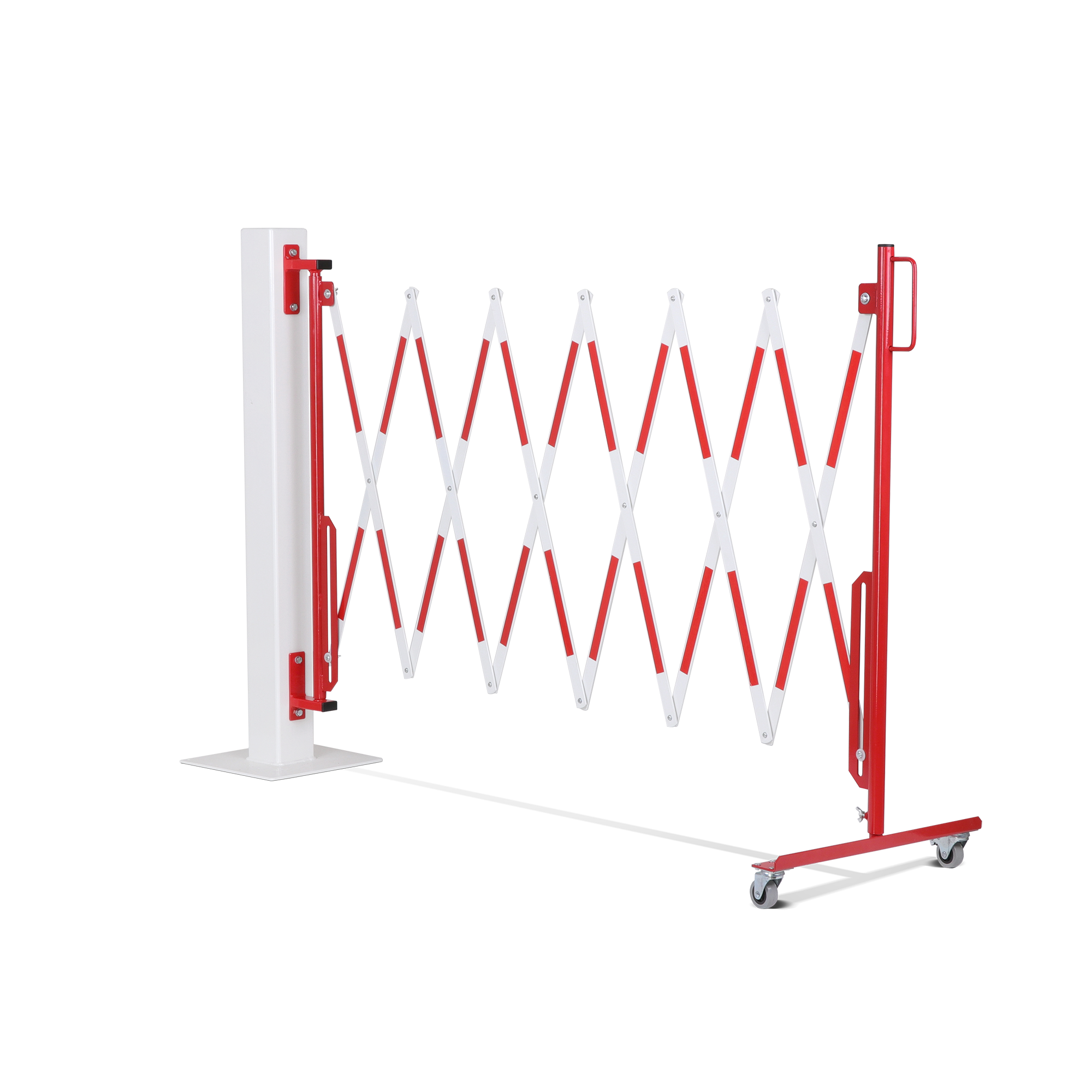

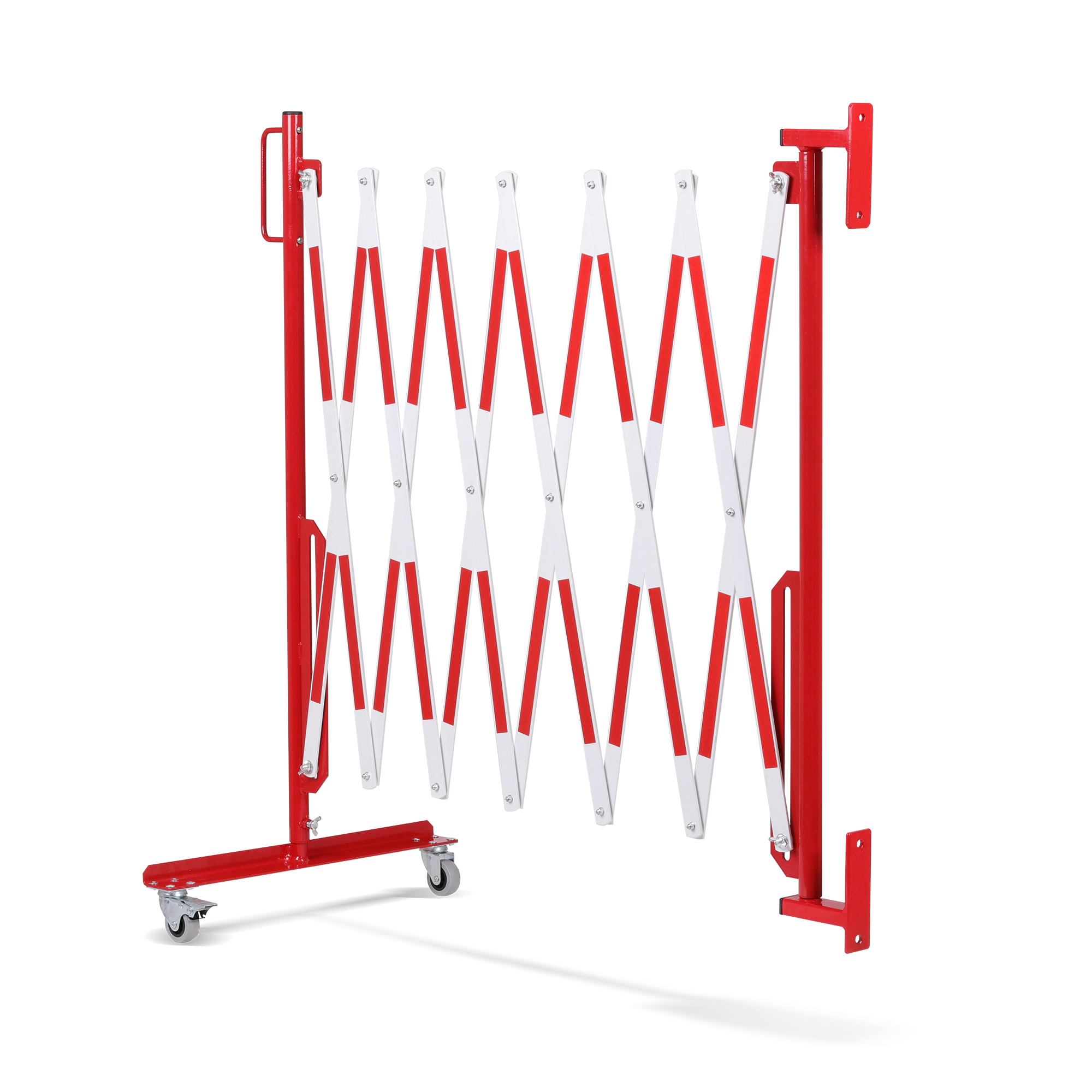

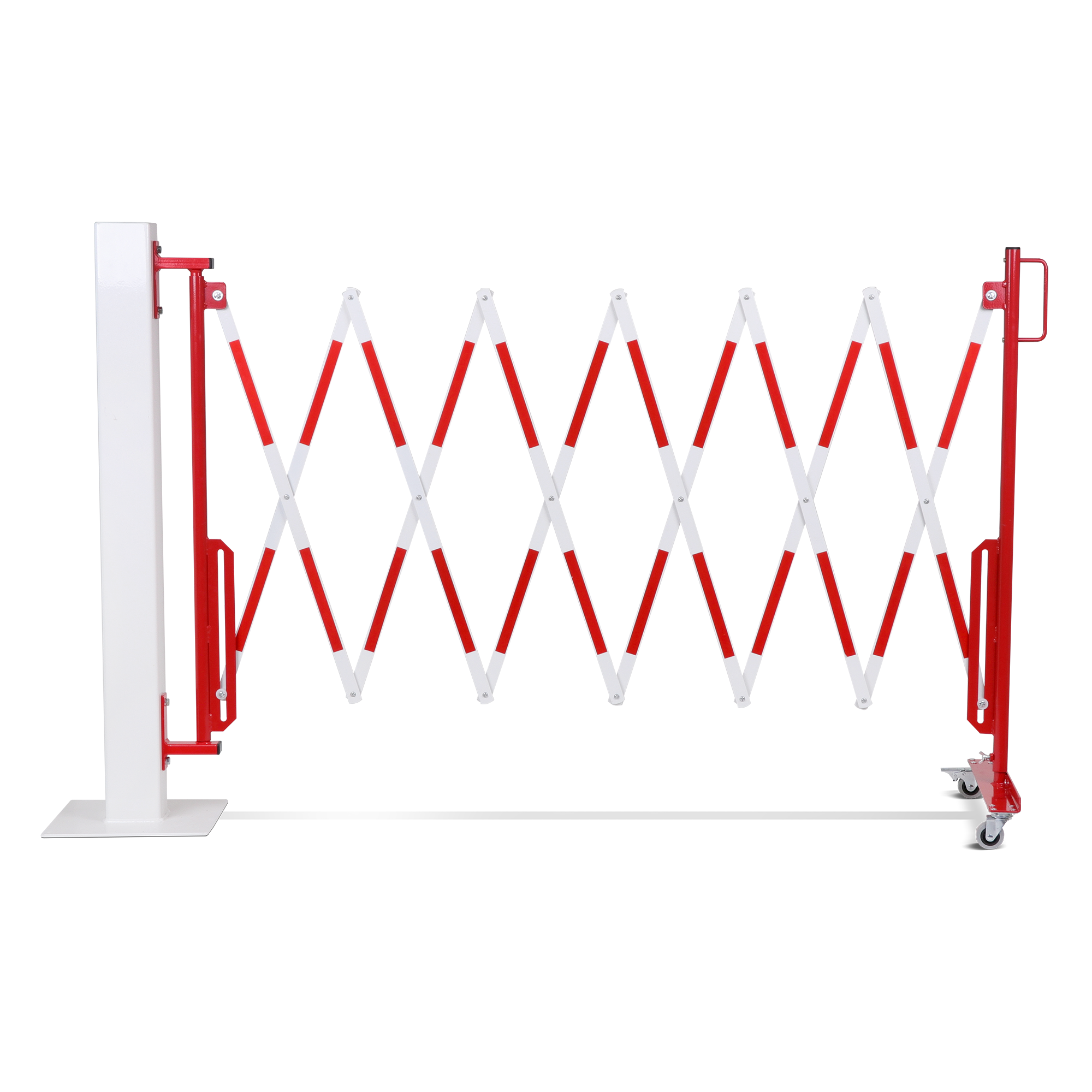

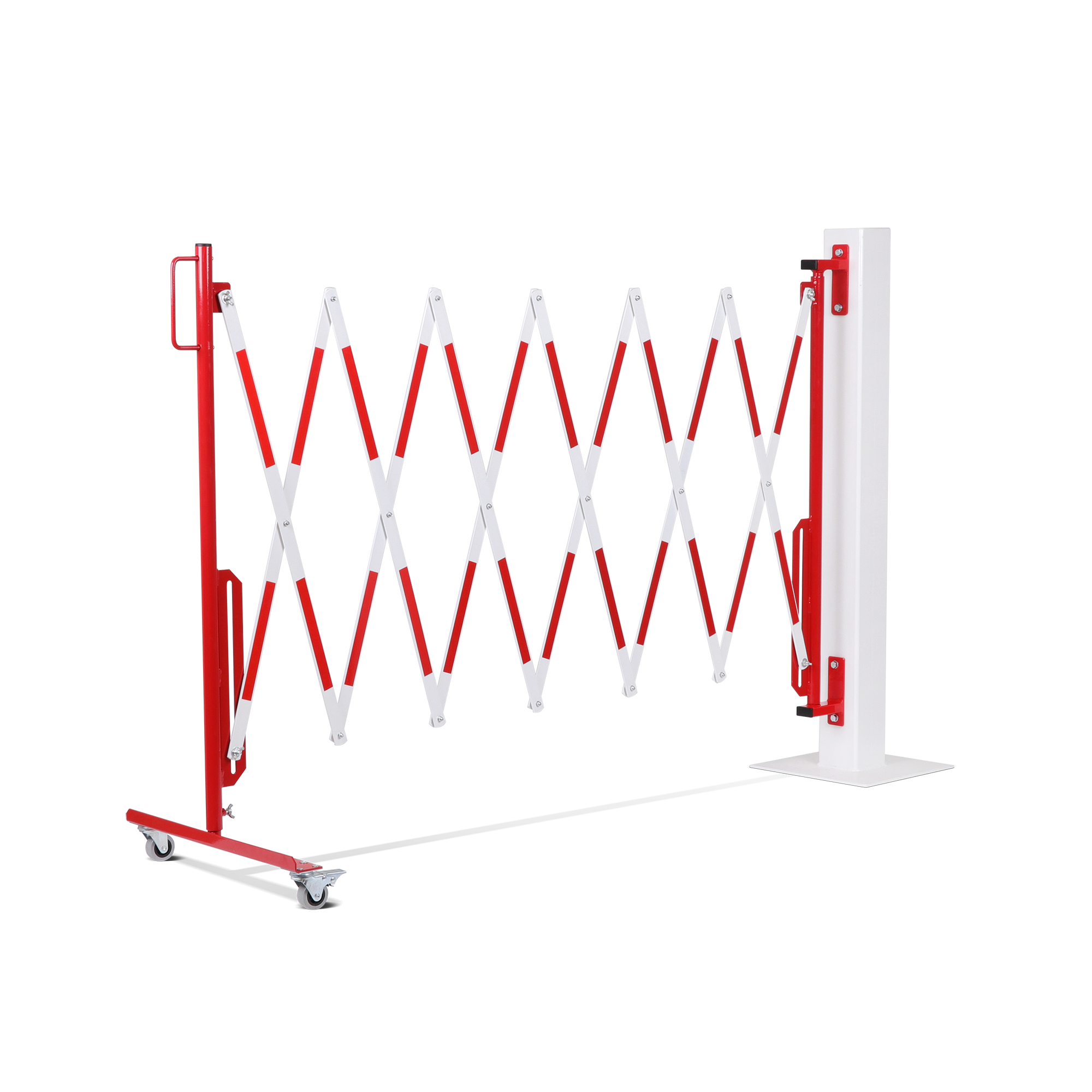

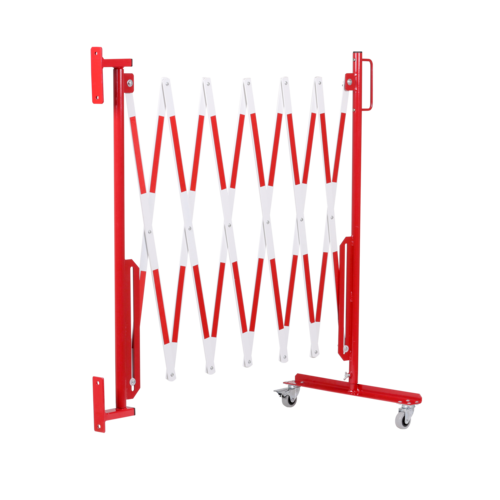

Expanding barrier red-white with wall mounting and reels, and red reflective warn marking on both sides, extendable to , 3,6 m, 25 x 4 mm, TÜV certified
| Width (mm) | 3600 |
|---|---|
| Depth/Length (mm) | 575 |
| Height (mm) | 1010 |
| Net weight (kg) | 12,448 |
| Gross weight (kg) | 13,478 |
| Material | Steel |
| Material surface | Powder coated |
| Material thickness (mm) | 4 |
| Colour | Red - white |
| Warning mark | Red reflective warning mark |
| Area of application | Indoor use |
| Mounting location | Wall |
| Mounting | Screw together |
| Number of mounting holes | 4 |
| Fixing included | Mounting material not included |

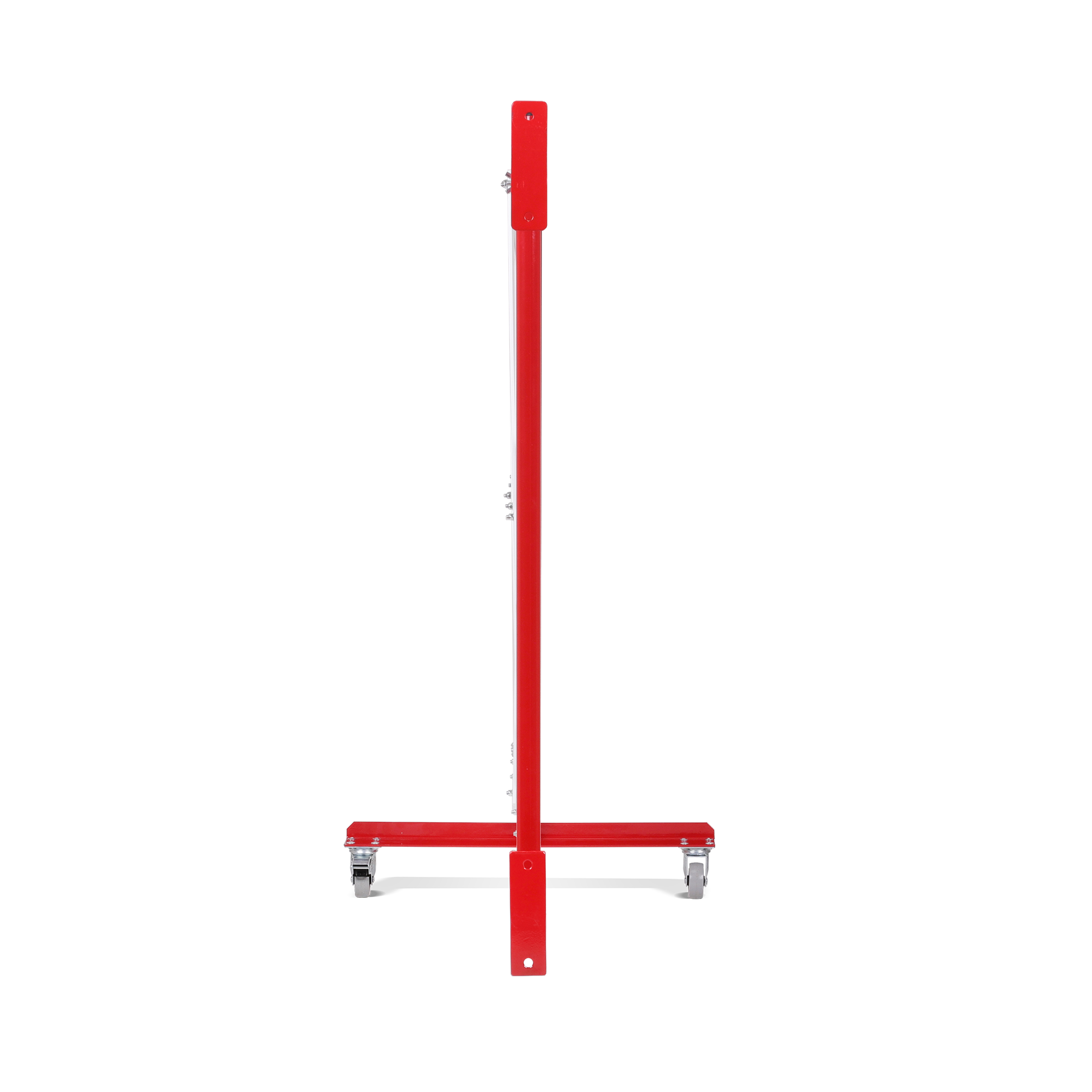

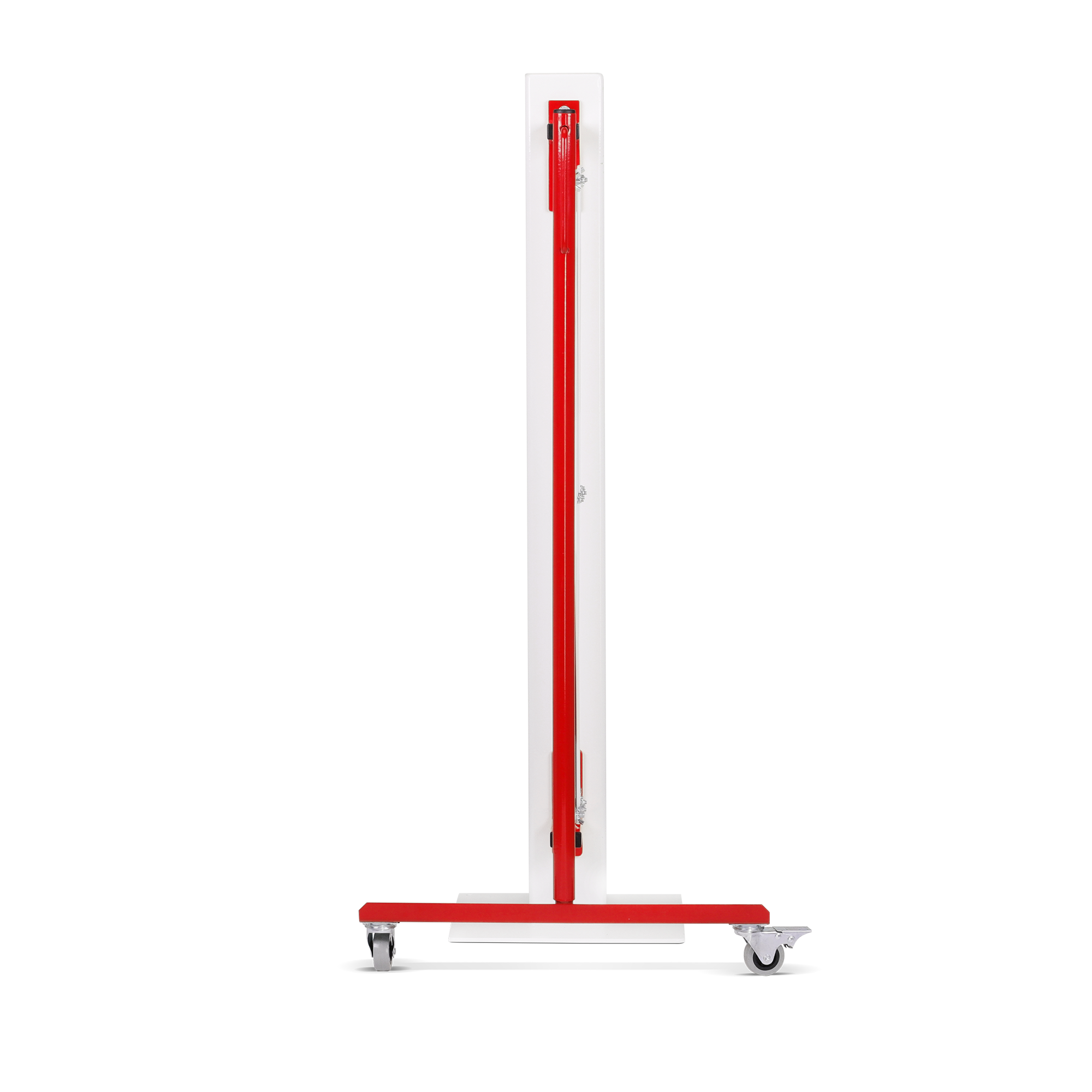

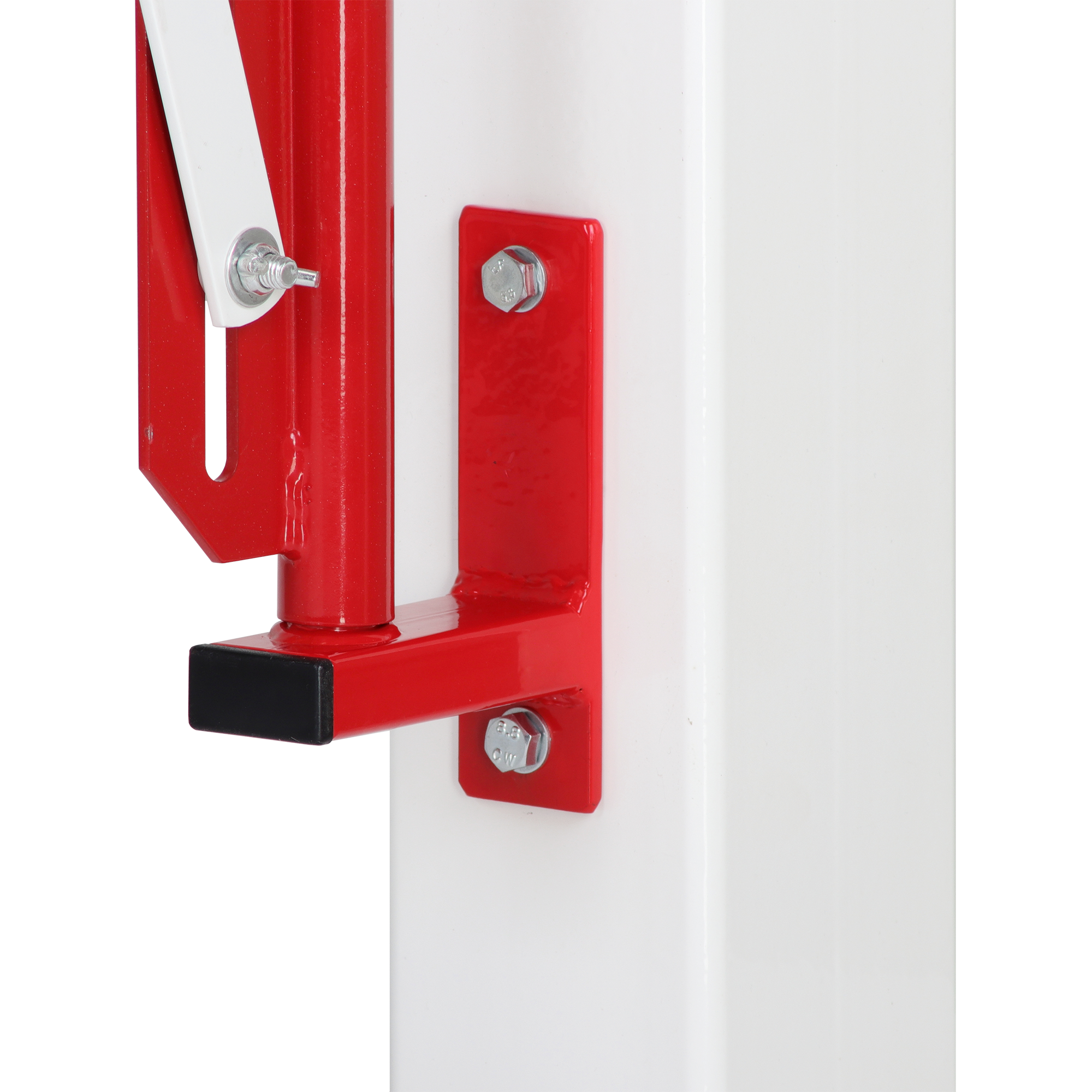

| Features | 1 roller base, one wall bracket |

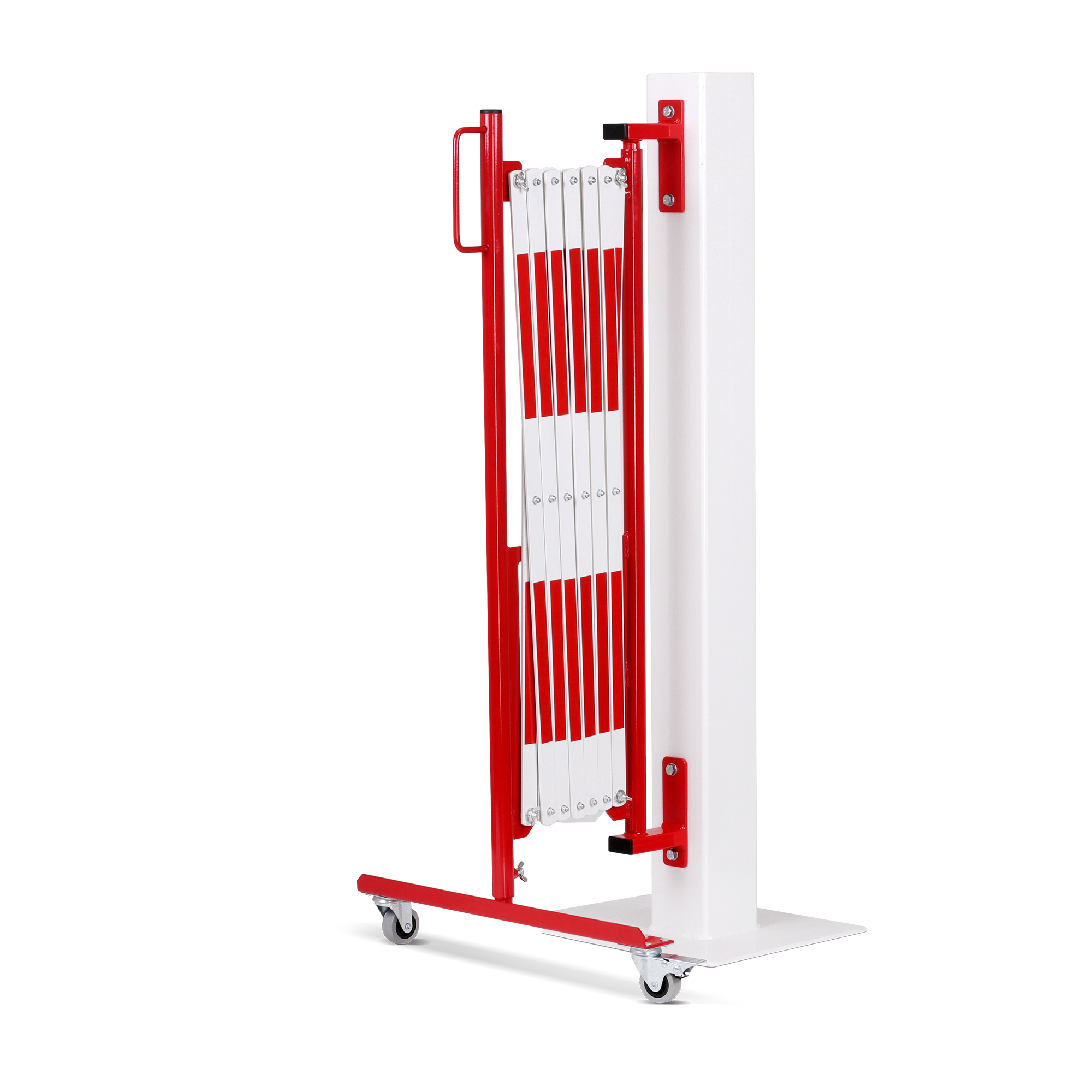

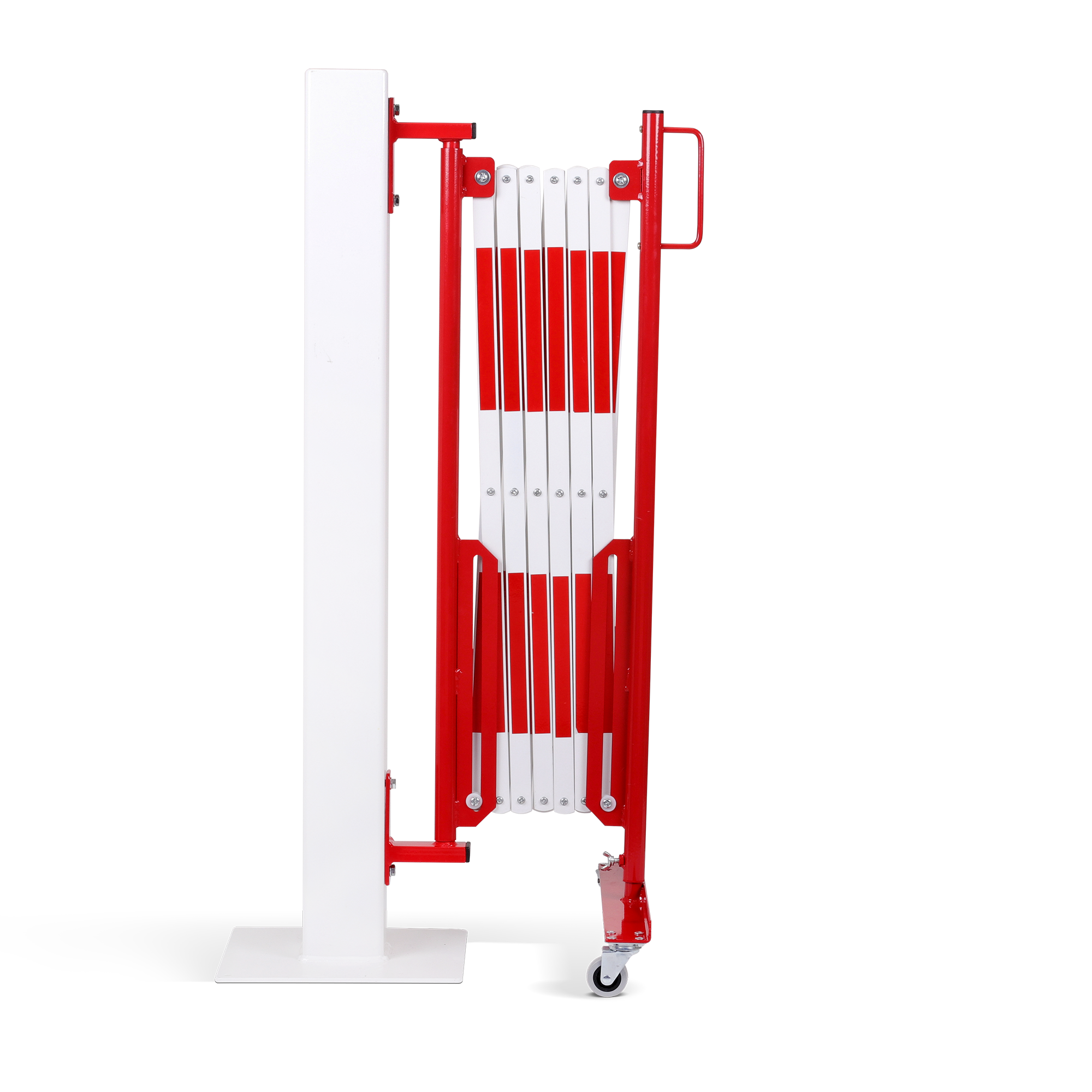

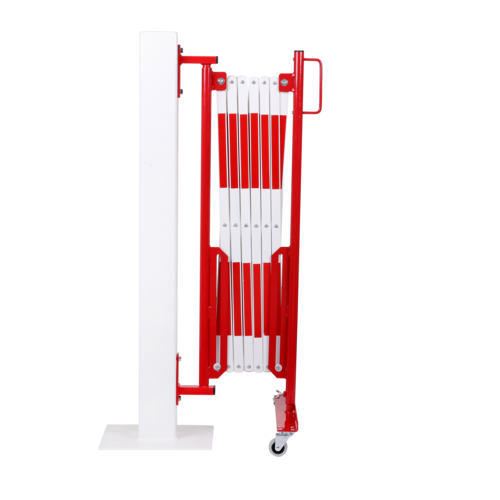

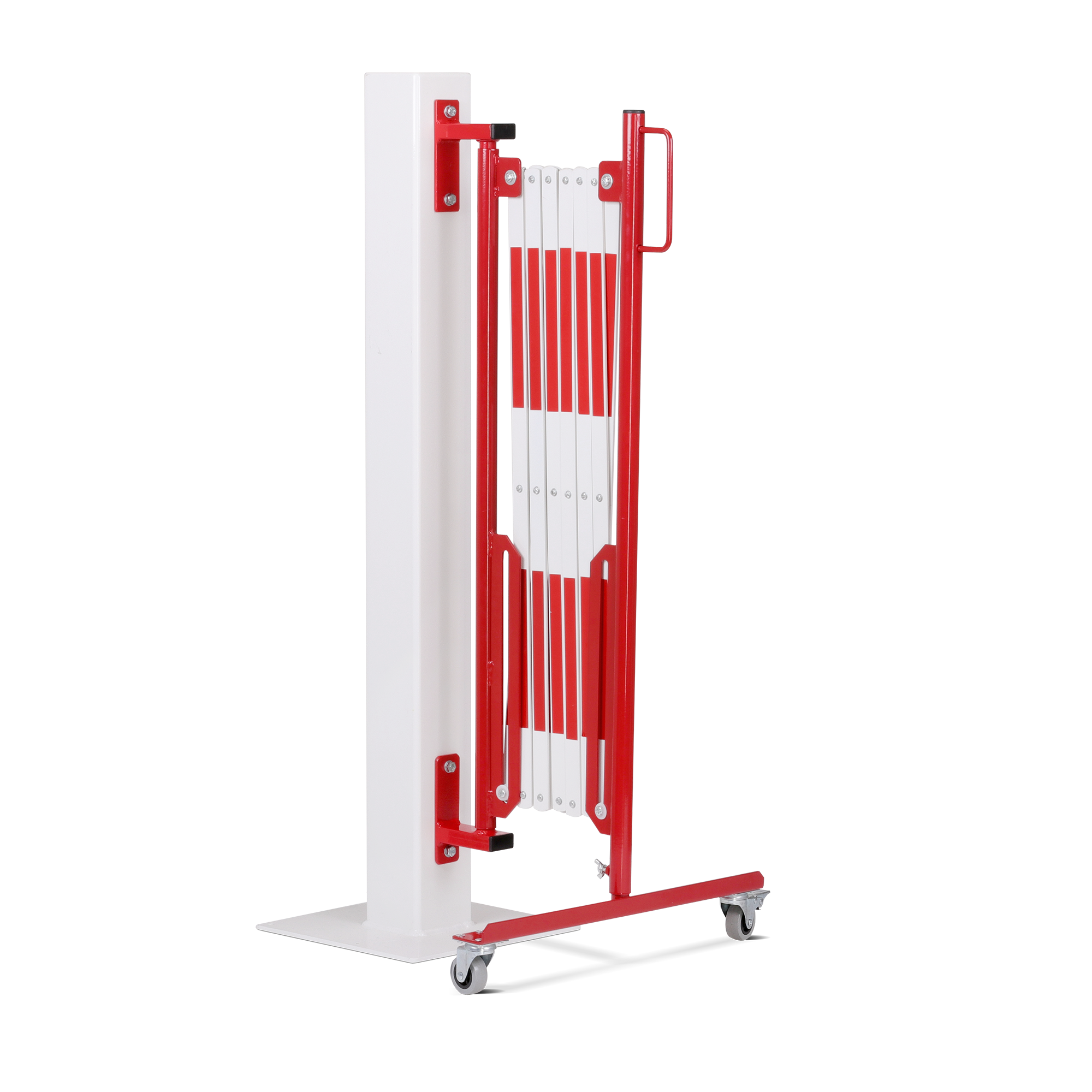

| Width when compressed (mm) | 300 |
| Height of the grid compressed (mm) | 800 |
| Height of the grid expanded |
|
| Height above ground compressed (mm) | 170 |
| Number of castors/wheels | 2 |
| Brand | Crash Stop |
| Approval / Certification | TÜV-certified (compliant with DGUV 108-007 / previously BGR 234) |
| Eclass 10.1 Nr. | 22490302 |
