Impact protection steel Ø159

50-40 (GTIN 4250912303478)

Impact protection steel Ø159

Description

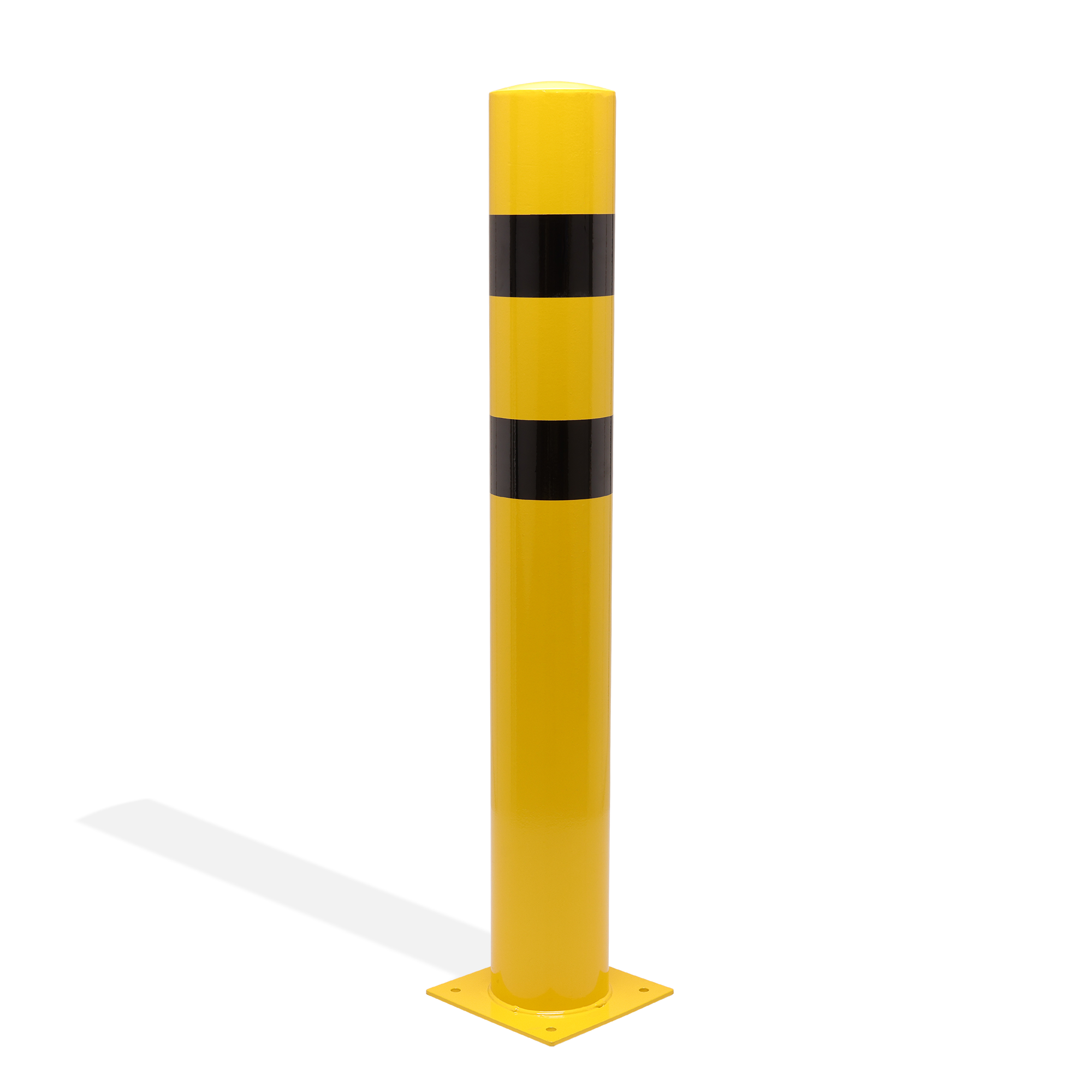

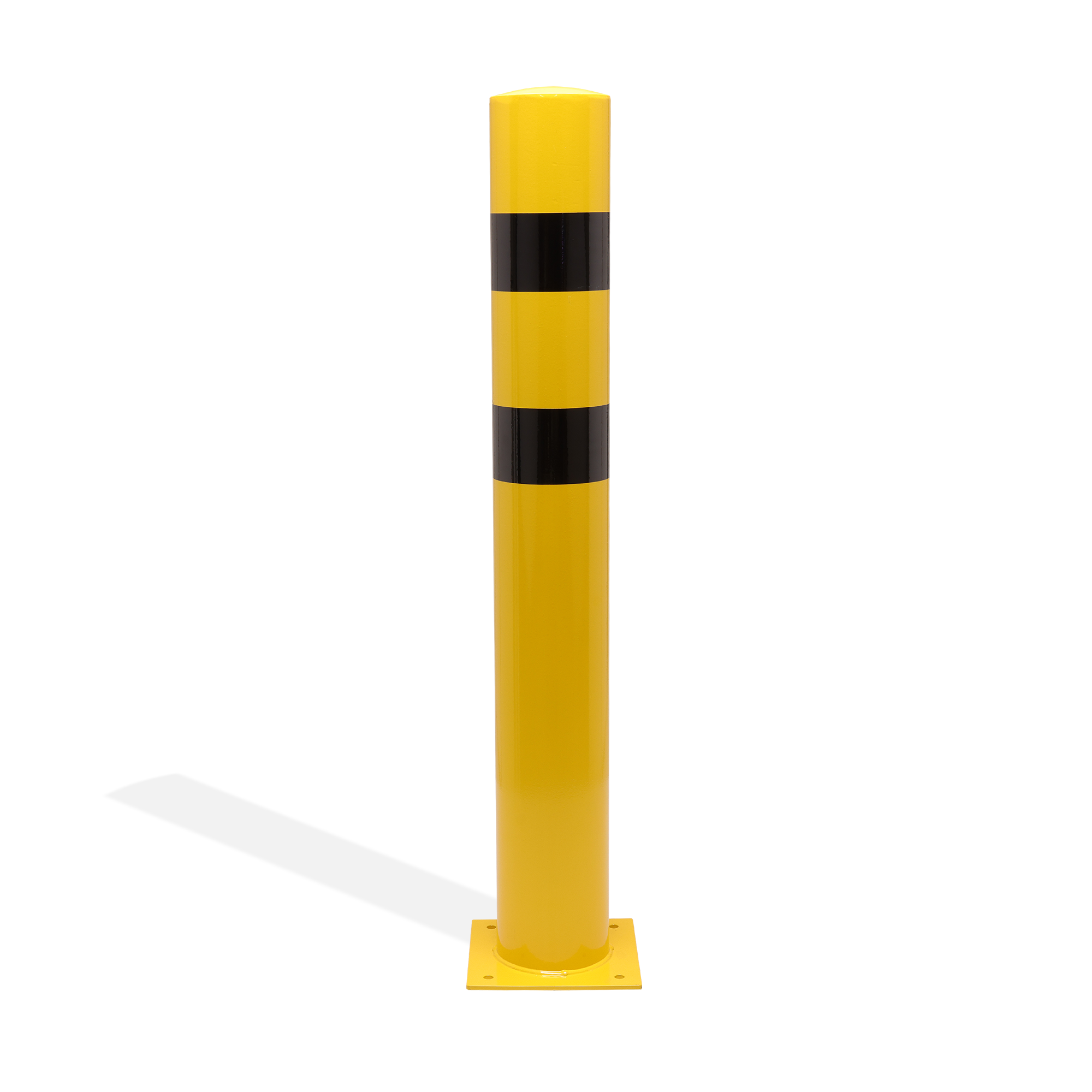

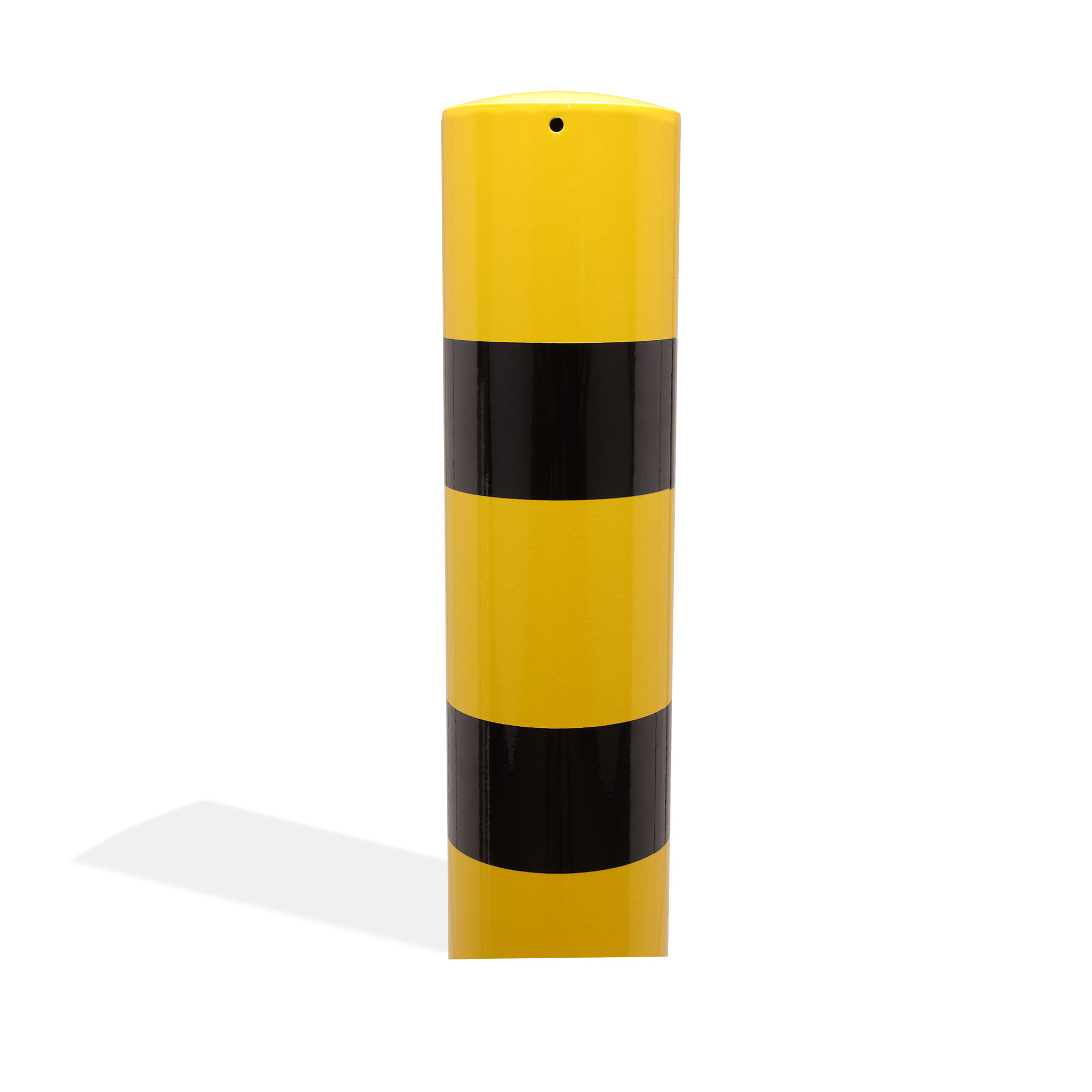

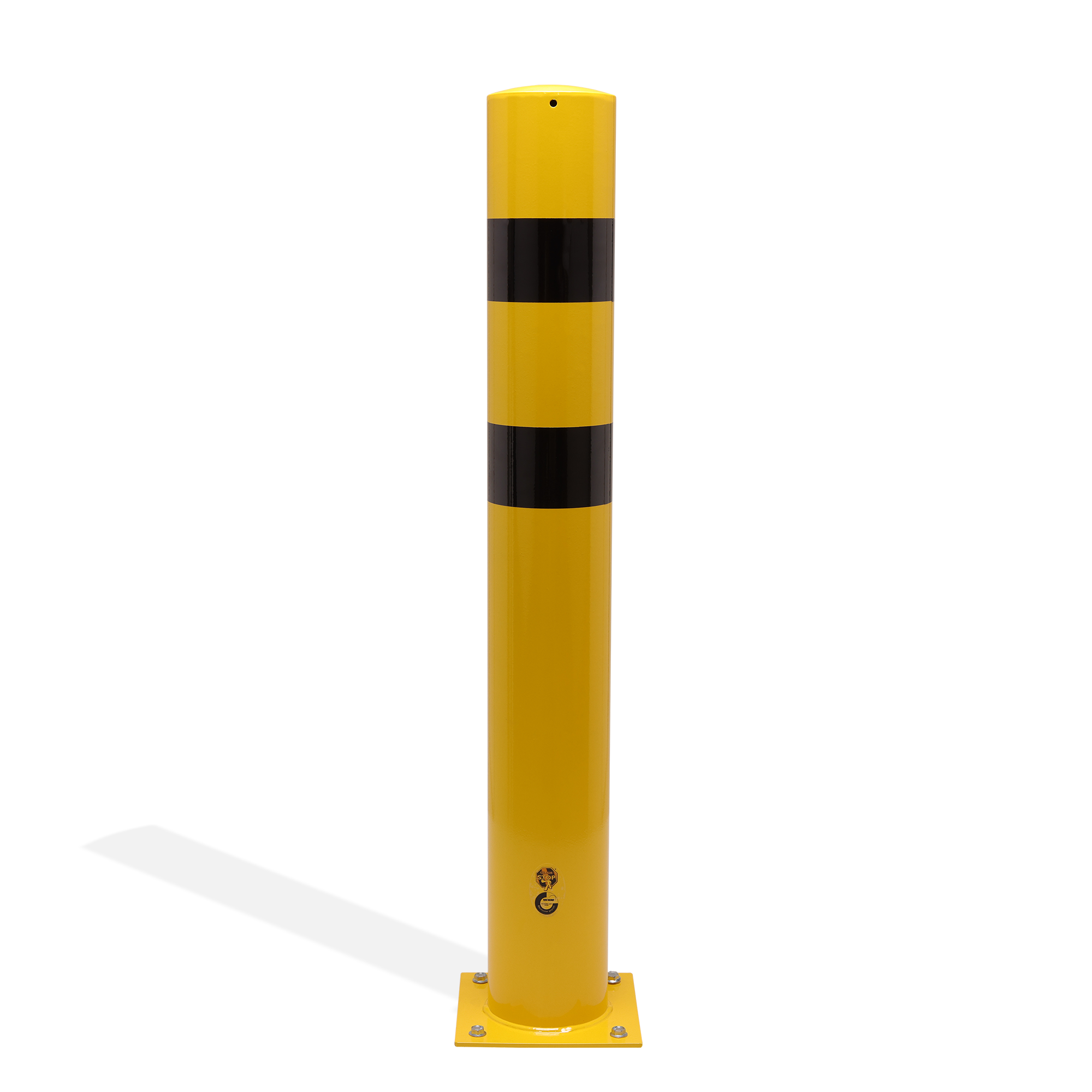

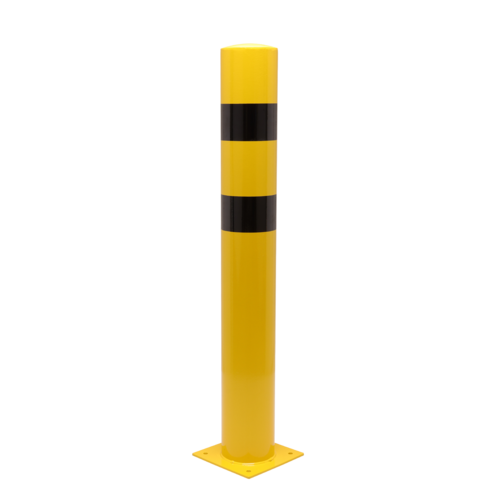

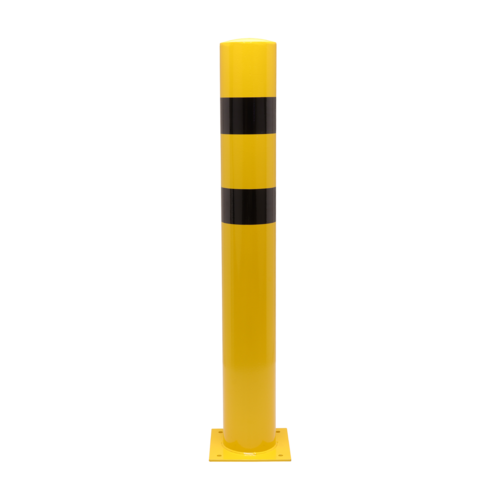

Crash protection bollard for bolting in place, Ø 159 mm, galvanized and powder coated, height 1200 mm

Material Steel
Material surface
  • Galvanized
  • powder coated
Material thickness (mm) 4,5
Colour Yellow
Warning mark Black warning mark
Shape Round
Width (mm) 240
Depth/Length (mm) 240
Height (mm) 1190
Diameter (mm) 159
Net weight (kg) 21,7
Width without foot plate (mm) 159
Depth without foot plate (mm) 159
Area of application Indoor and outdoor use
Mounting Bolting
Delivery is Pre-assembled
Number of mounting holes 4
Fixing included Mounting material not included
Accessories (optional) Mounting Art. No. FIX 4

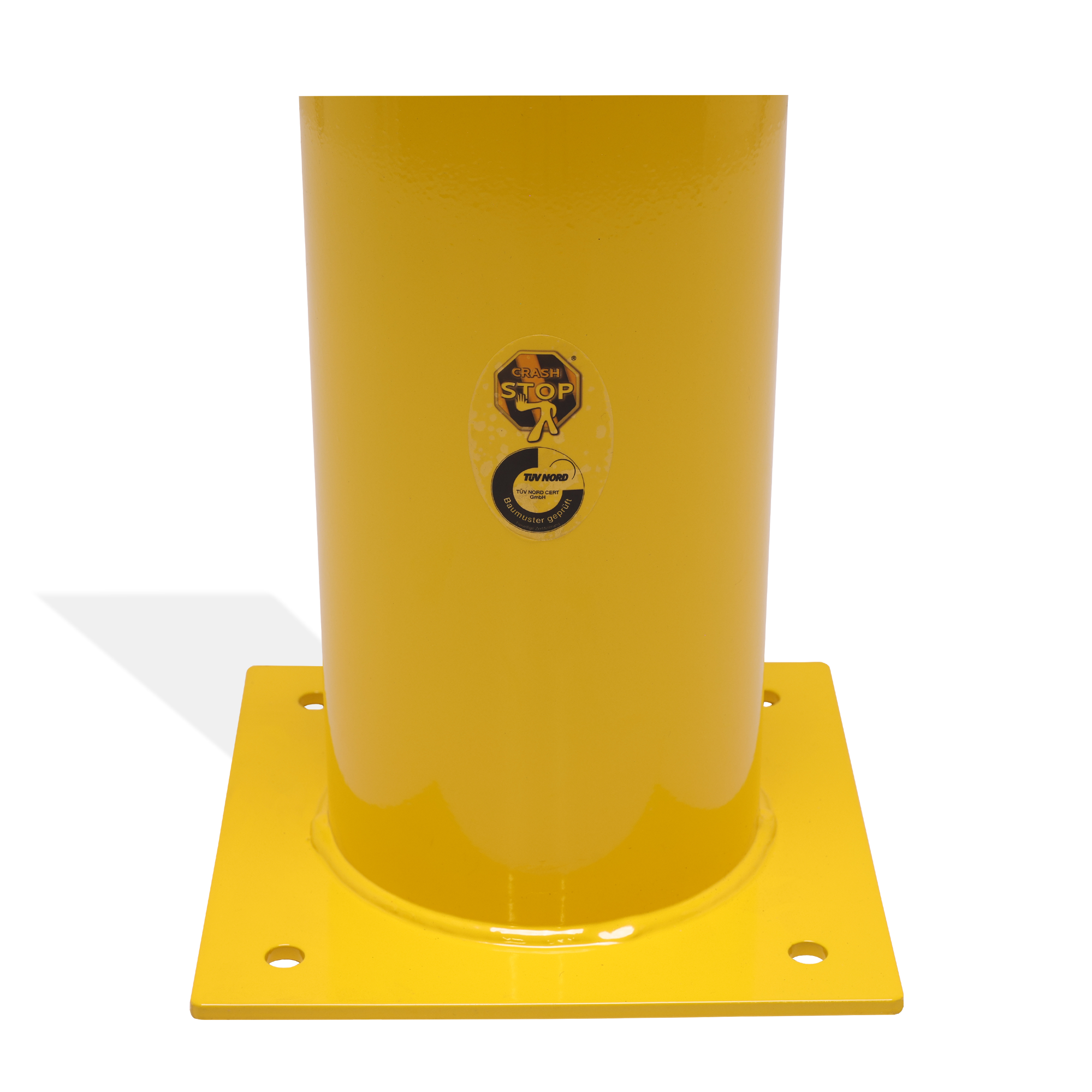

Foot plate width (mm) 240
Foot plate depth (mm) 240
Foot plate height (mm) 6
Foot plate colour Yellow
Warranty 1 year
Brand Crash Stop
Approval / Certification TÜV-certified (compliant with DGUV 108-007 / previously BGR 234)

Downloads

Data sheet English Product 50-40

PDF, 57,55 KB

Download

Assembly guide Product 50-40

PDF, 318,48 KB

Download

Certificate Product 50-40

PDF, 881,98 KB

Download
Impact protection steel Ø159

Impressions
