Impact protection steel Ø89
50-25 (GTIN 4250912303454)
Impact protection steel Ø89
Description

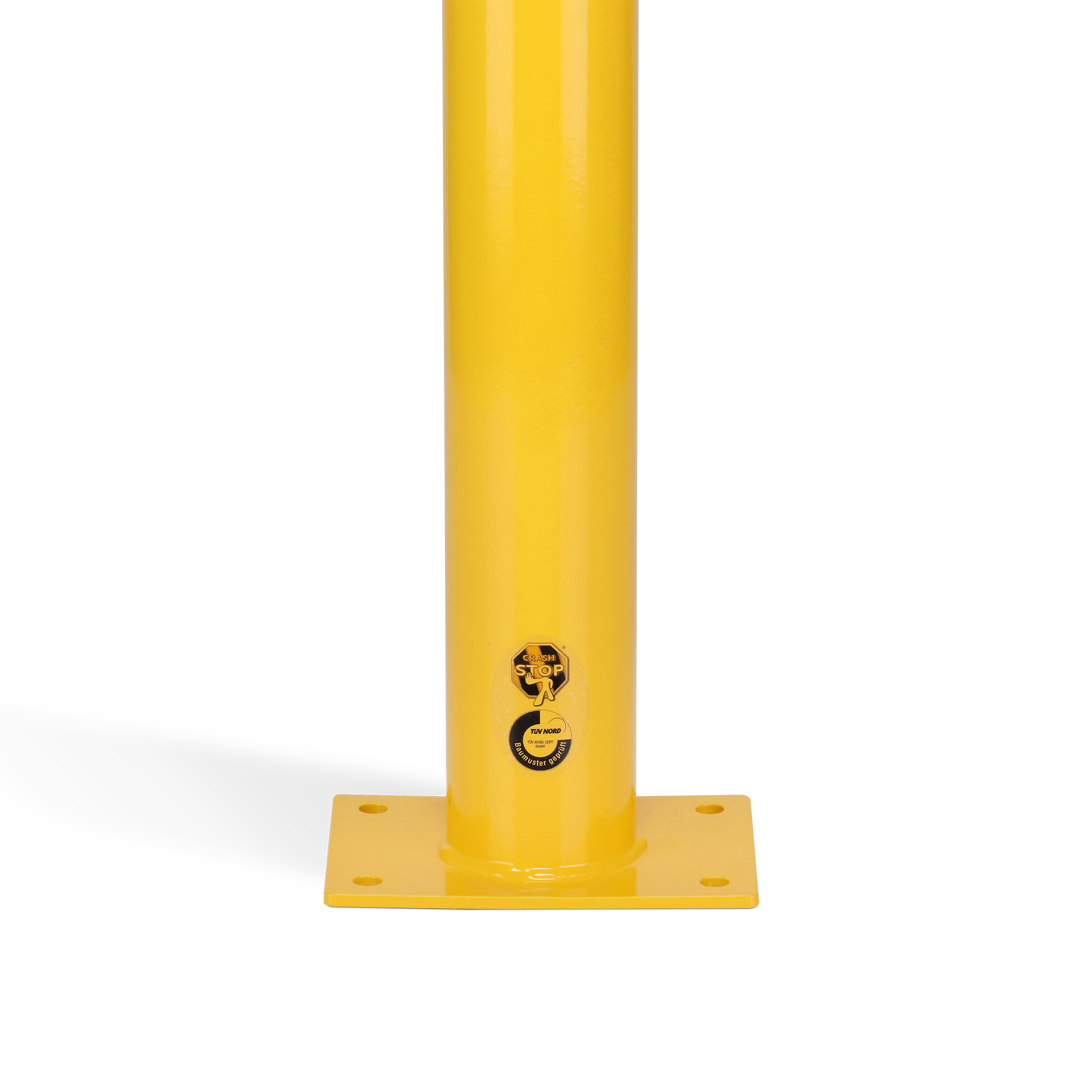

Crash protection bollard for bolting in place Ø 88,9 mm, galvanized and powder coated, yellow/black, height 1200 mm
| Material | Steel |
|---|---|
| Material surface |
|
| Material thickness (mm) | 3,6 |
| Colour | Yellow |
| Warning mark | Black warning mark |
| Shape | Round |
| Width (mm) | 200 |
| Depth/Length (mm) | 140 |
| Height (mm) | 1200 |
| Diameter (mm) | 88,9 |
| Net weight (kg) | 9,844 |
| Gross weight (kg) | 10,683 |
| Width without foot plate (mm) | 89 |
| Depth without foot plate (mm) | 89 |
| Area of application | Indoor and outdoor use |
| Mounting | Bolting |
| Delivery is | Pre-assembled |
| Number of mounting holes | 4 |
| Fixing included | Mounting material not included |
| Accessories (optional) | Mounting Art. No. FIX 4 |

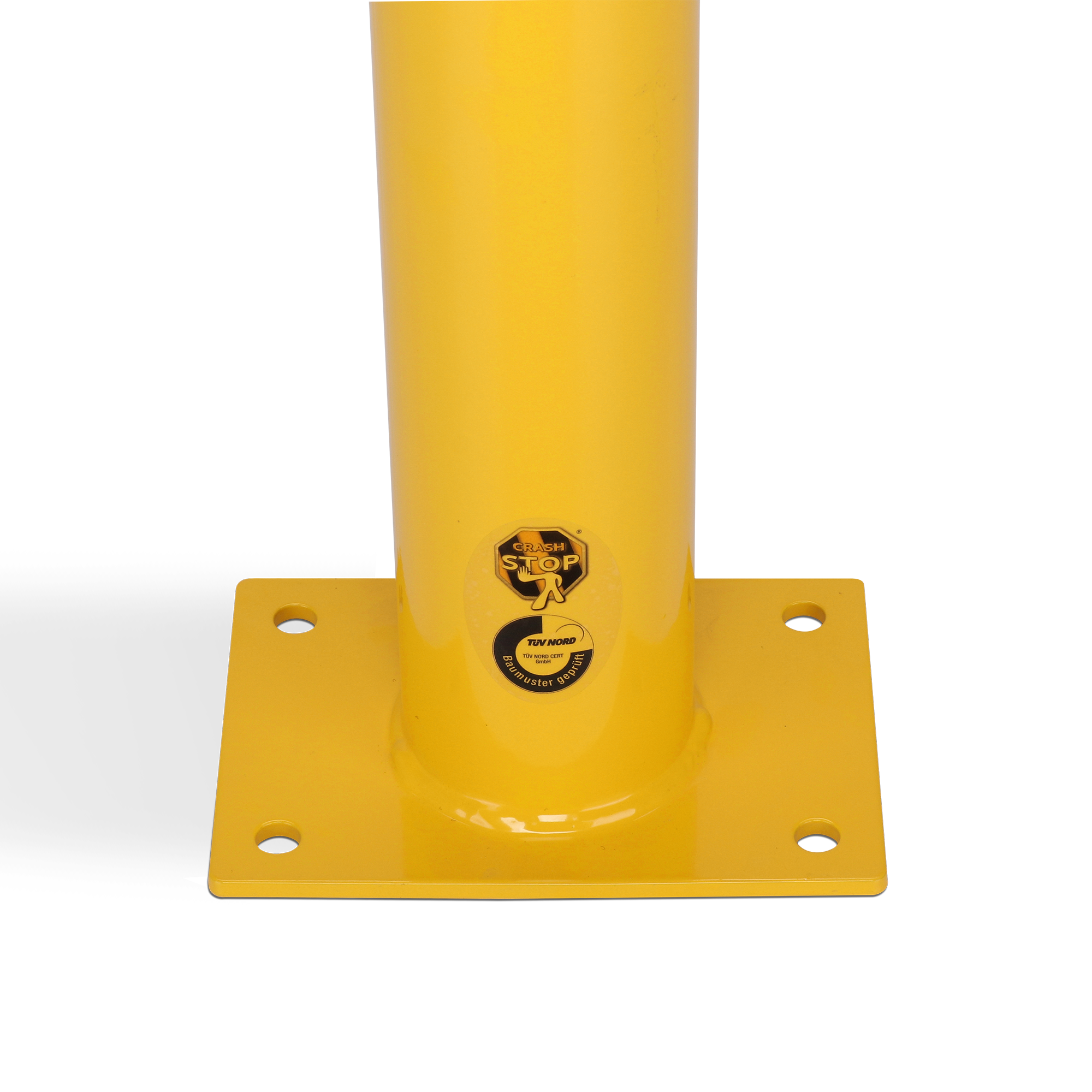

| Foot plate width (mm) | 195 |
| Foot plate depth (mm) | 140 |
| Foot plate height (mm) | 6 |
| Foot plate colour | Yellow |
| Warranty | 1 year |
| Brand | Crash Stop |
| Approval / Certification | TÜV-certified (compliant with DGUV 108-007 / previously BGR 234) |
