Post Ø 60 mm

10-20 (GTIN 4250912300040)

Post Ø 60 mm

Description

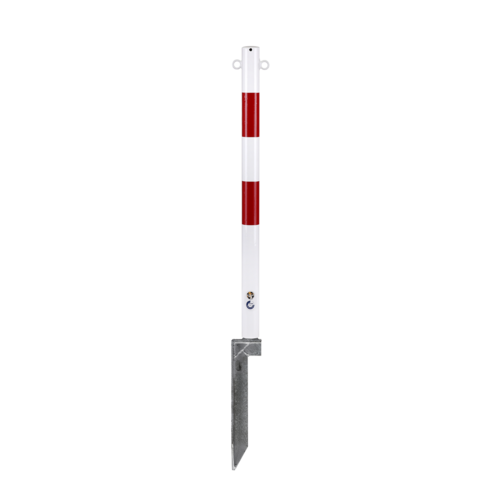

Barrier post, Ø 60 mm, 1000 mm, galv. and coated, with eyelets, red-white with reflecting foil, with ground sleeve

Width (mm) 130
Height (mm) 1505
Net weight (kg) 7,822
Gross weight (kg) 9,151
Material Steel
Material surface
  • Galvanized
  • powder coated
Material thickness (mm) 2
Colour White
Warning mark Red warning mark
Area of application Indoor and outdoor use
Mounting Hammer in
Delivery is Pre-assembled
Fixing included Ground socket Art.: 10-00
Accessories (optional) Plastic chain Art.-Nr KETTENSET KS RW
Warranty 1 year
Brand Crash Stop
Approval / Certification TÜV-certified (compliant with DGUV 108-007 / previously BGR 234)
Contain
  • 1x 10-20-1
  • 1x 10-00

Downloads

Datasheets

Data sheet English Product 10-20

PDF, 76,2 KB

Download
Instructions and Manuals

Assembly guide Product 10-20

PDF, 272,59 KB

Download
TÜV Certificates

Certificate Product 10-20

PDF, 859,17 KB

Download
Post Ø 60 mm

Impressions

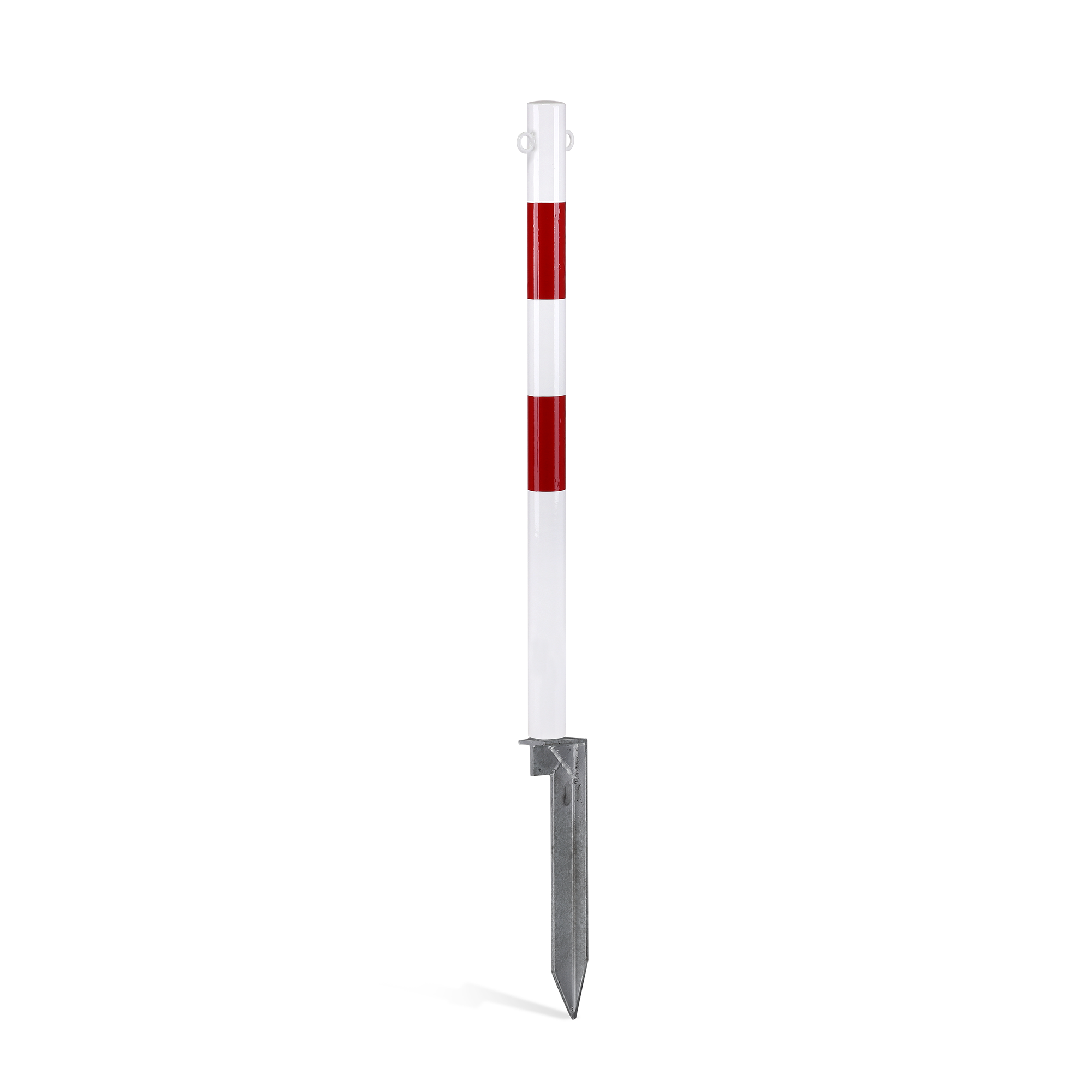

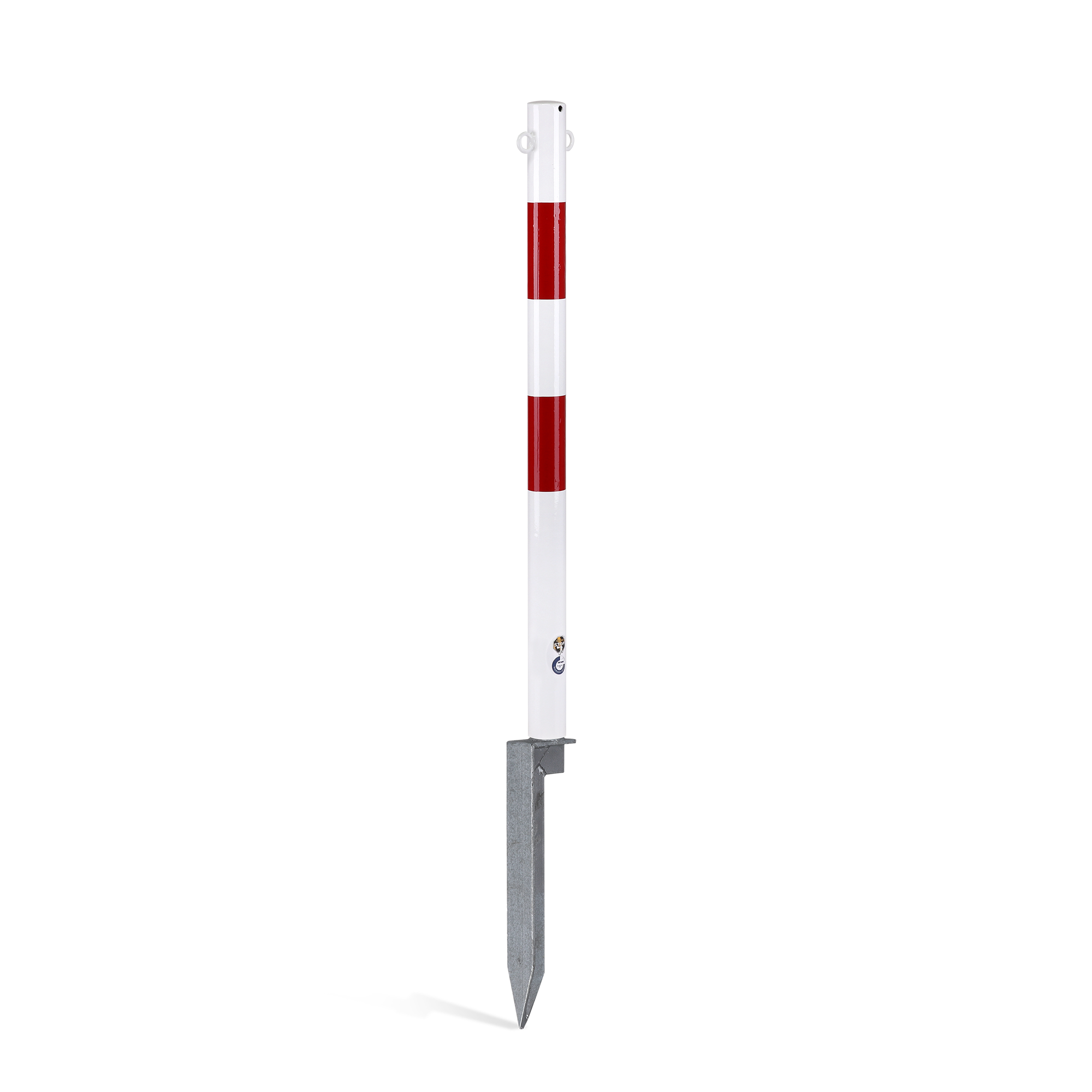

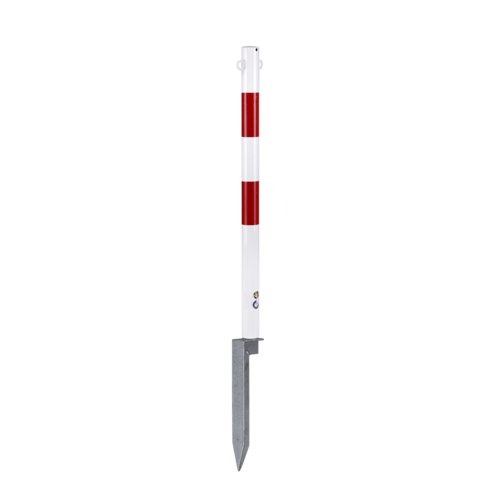

10-20 / 45° front left view
10-20 / 45° front left view

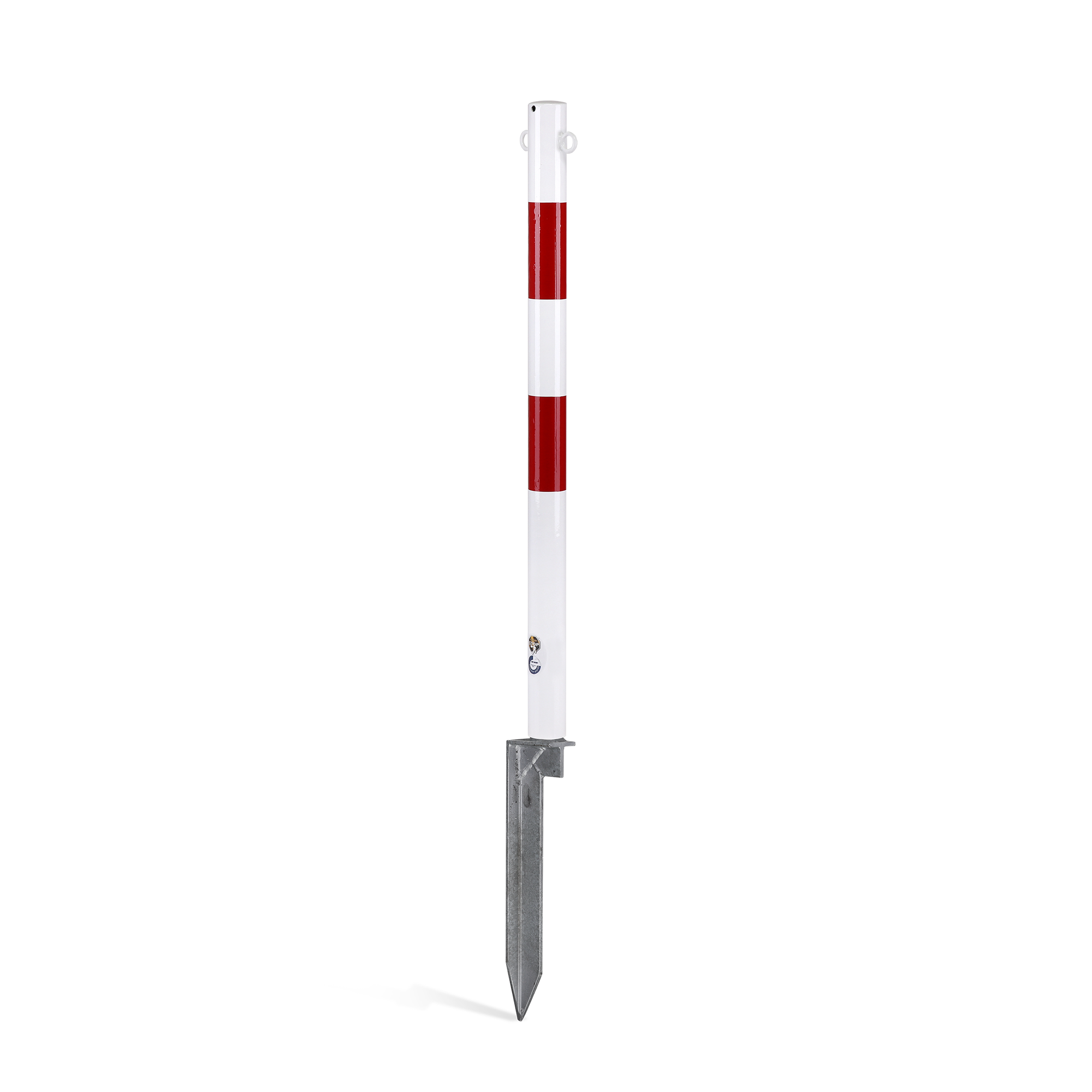

10-20 / 45° front view right
10-20 / 45° front view right
10-20 / 45° rear left view
10-20 / 45° rear left view
10-20 / 45° rear right view
10-20 / 45° rear right view

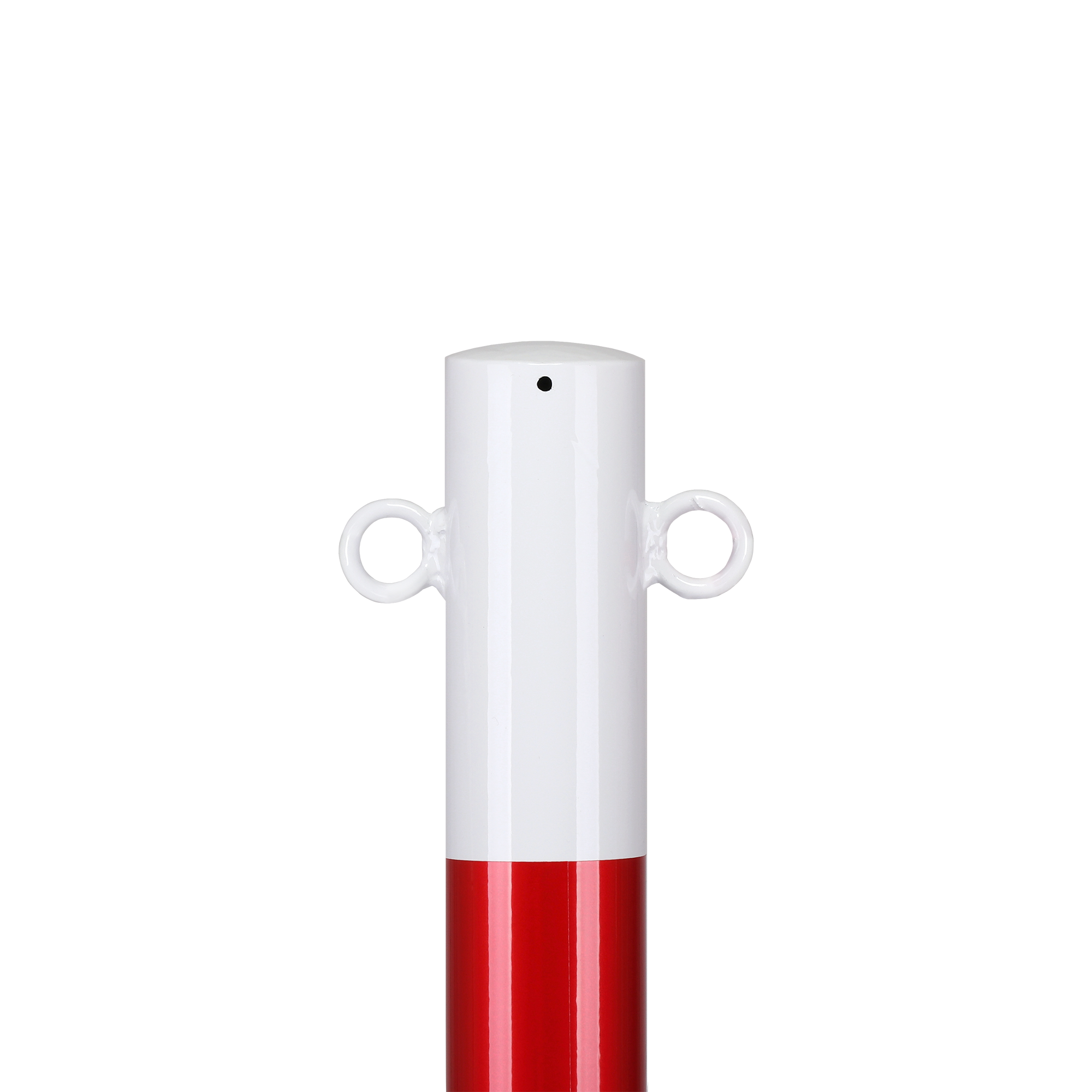

10-20 / Detail view 1
10-20 / Detail view 1

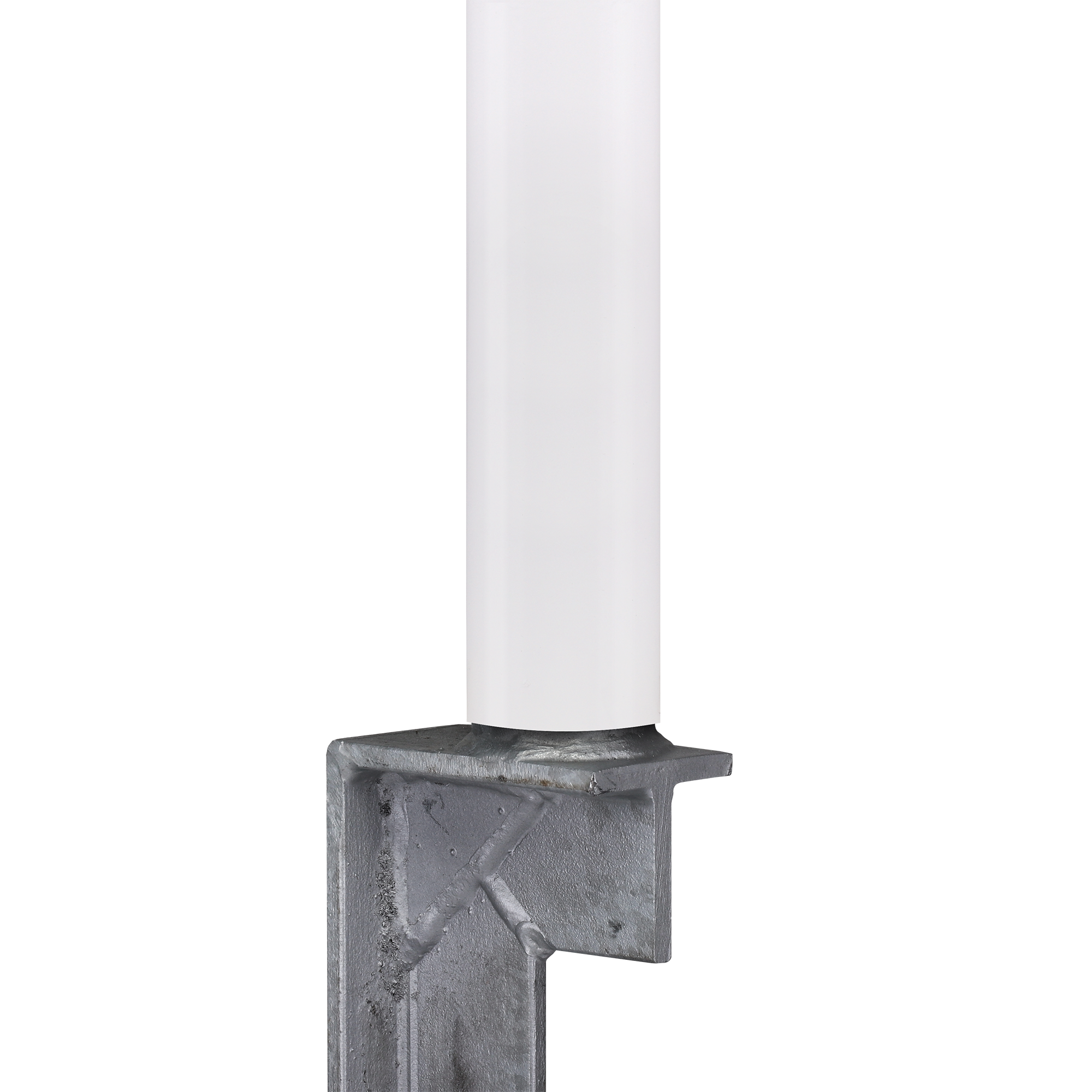

10-20 / Detail view 2
10-20 / Detail view 2
10-20 / Detail view 3
10-20 / Detail view 3

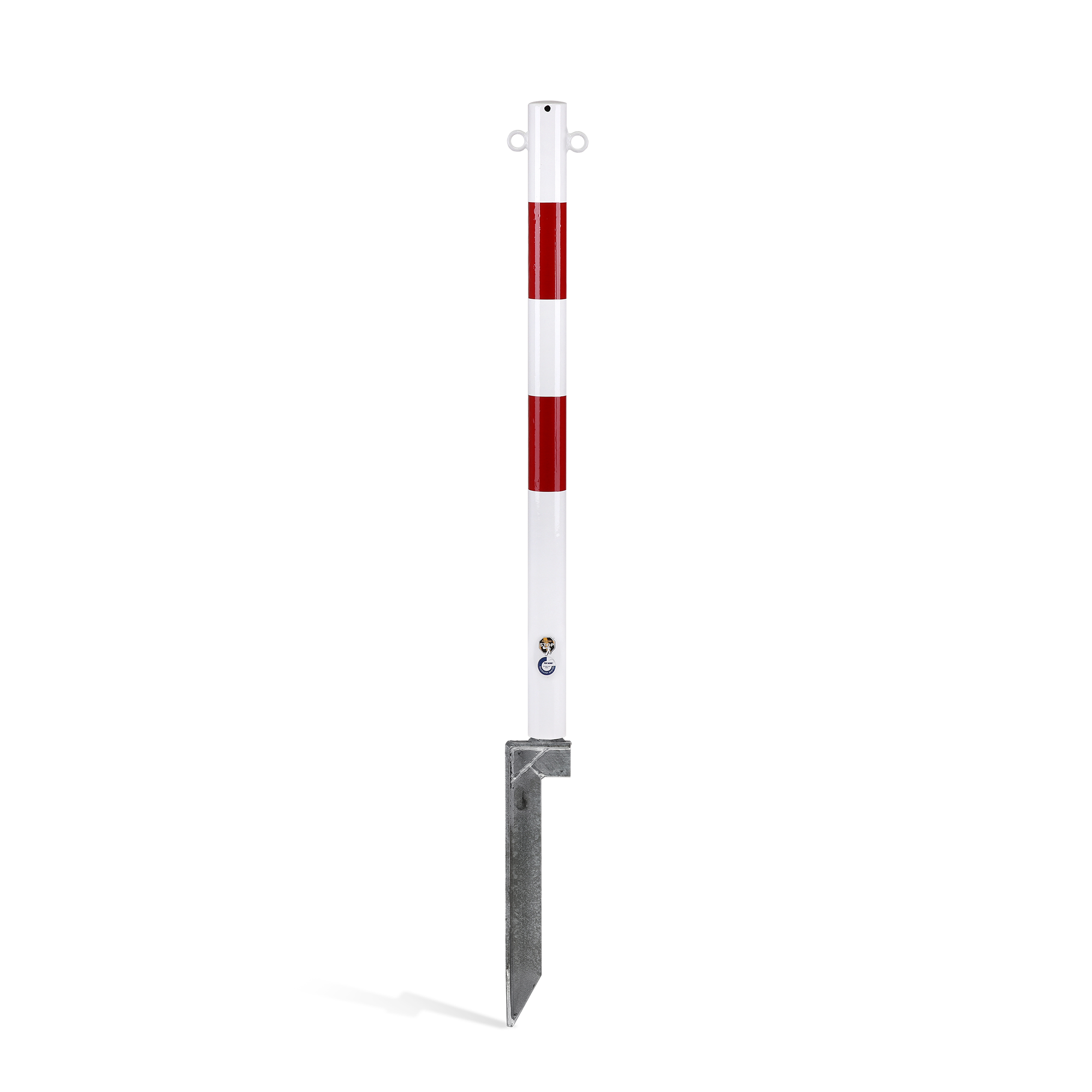

10-20 / Front view
10-20 / Front view

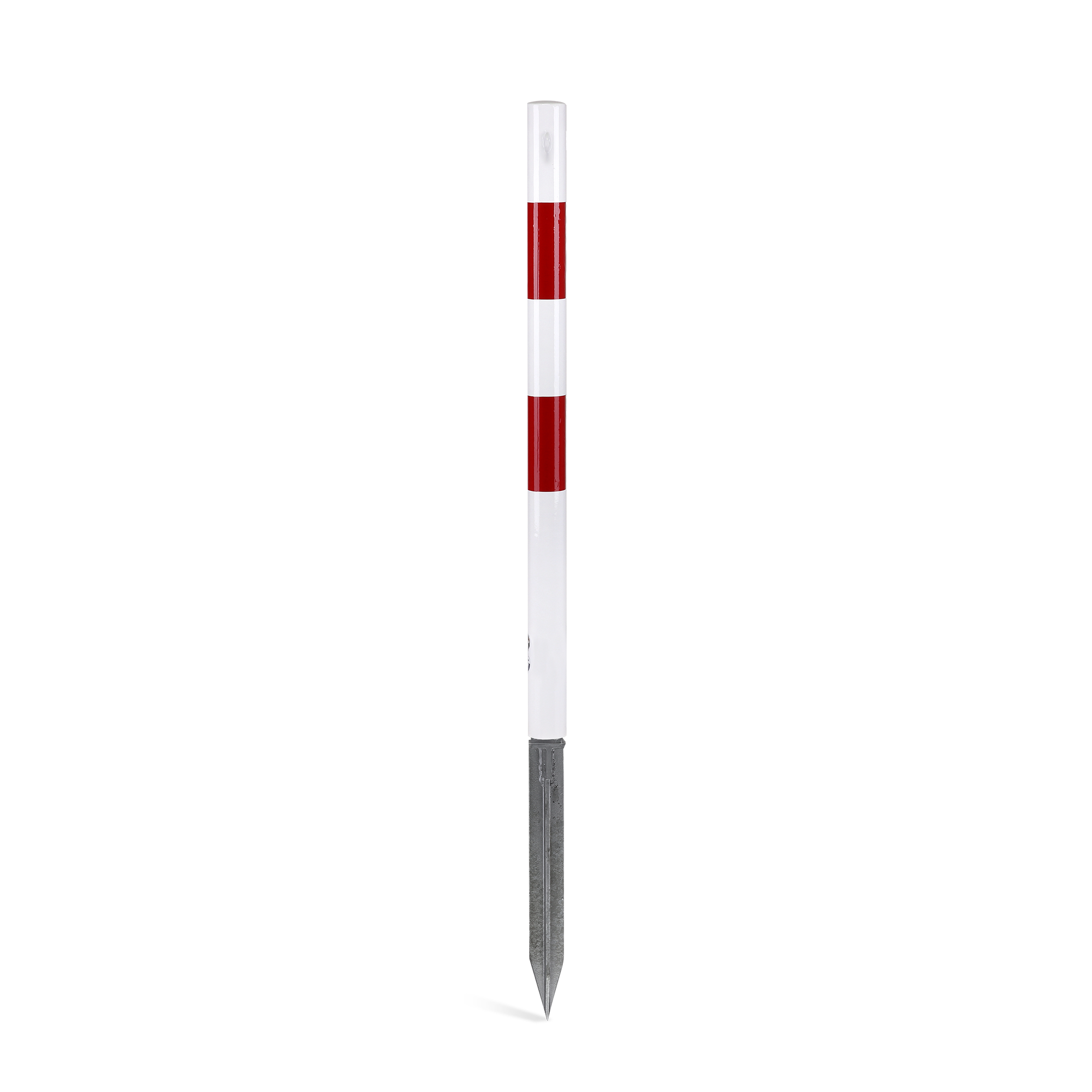

10-20 / Profile view right
10-20 / Profile view right
10-20 / Profile view right
10-20 / Profile view right
10-20 / Rear view
10-20 / Rear view
