Swingdoor „Juliet“ New
Back
Press left mouse button to rotate and right button to zoom in/out
Description
The "Juliet" swing gate can be installed free-standing or as part of our modular "Delta" and "Echo" systems. "Juliet" is made of polyethylene and can be opened up to 180° using hydraulic hinges. The robust and stable swing gate is a low-maintenance upgrade for your safety barriers. The stickers for visualization are used to quickly find the passage option within modular railings. The 800-1200 mm variants also have a self-closing mechanism, which further increases user comfort.
The mounting material is included in the delivery.
Models and Dimensions
-
DFFS-B110
d-flexx DELTA bollard Ø 110x1200 mm, black -
DFFS-SP-2
Mobile slider plate for 110 mm posts -
DFJU+TE
d-flexx JULIET endpost gate Ø 110x1200 mm -
DFJU+TM
d-flexx JULIET midpost gate Ø 110x1200 mm -
DFJU+TT
d-flexx JULIET T-post 90° Ø 110 x 1200 mm -
DFJU+TW90L
d-flexx JULIET L-cornerpost 90° Ø 110 x 1200 mm -
DFJU+TW90R
d-flexx JULIET R-cornerpost 90° Ø 110 x 1200 mm -
DFJU-DA1000-A
d-flexx JULIET swingdoor 1000 mm -
DFJU-DA1200-A
d-flexx JULIET swinggate 1200 mm -
DFJU-DA1500-A
d-flexx JULIET swinggate 1500 mm with wheel -
DFJU-DA1750-A
d-flexx JULIET swinggate 1750 mm with wheel -
DFJU-DA2000-A
d-flexx JULIET swinggate 2000 mm with wheel -

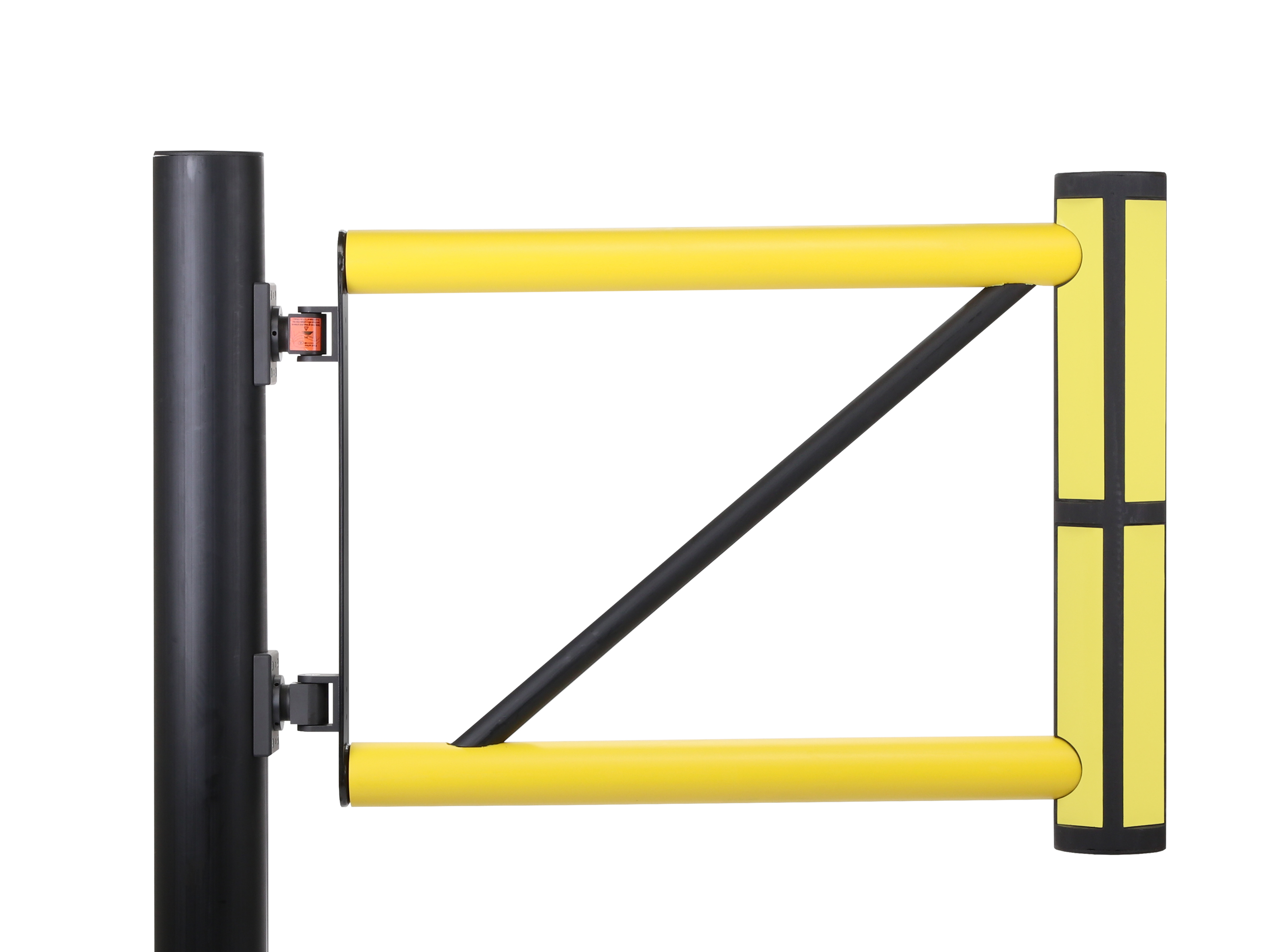

DFJU-DA800-A
d-flexx JULIET swinggate 800 mm -
DFJU-TE
d-flexx JULIET endpost gate Ø 110 x 1200 mm -
DFJU-TM
d-flexx JULIET midpost gate Ø 110 x 1200 mm -
DFJU-TT
d-flexx JULIET T-post 90º Ø 110 x 1200 mm -
DFJU-TW22.5
d-flexx DELTA JULIET midpost 22,5º ø110 x 1200mm -
DFJU-TW292.5
d-flexx DELTA JULIET midpost 292,5º ø110 x 1200mm -
DFJU-TW315
d-flexx JULIET midpost 315º ø110 x 1200mm / DELTA -
DFJU-TW337.5
d-flexx DELTA JULIET midpost 337,5º Ø 110 x 1200mm -
DFJU-TW45
d-flexx DELTA JULIET midpost 45º ø110 x 1200mm -
DFJU-TW67.5
d-flexx DELTA JULIET midpost 67,5º ø110 x 1200mm -
DFJU-TW90L
d-flexx JULIET L-cornerpost 90º ø 110 x 1200mm -
DFJU-TW90R
d-flexx JULIET R-cornerpost 90º Ø 110 x 1200mm -

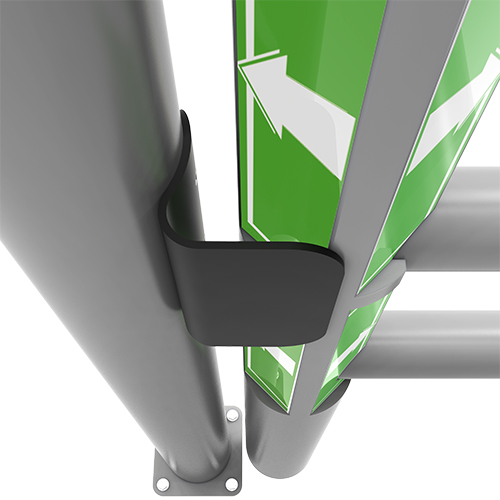

72118
d-flexx stop bracket for JULIET swing door
Modal body text goes here.
DFFS-B110 - d-flexx DELTA bollard Ø 110x1200 mm, black
d-flexx DELTA bollard Ø 110x1200 mm, black
| Material | Polyethylene |
| Width (mm) | 150 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 150 |
| Installation width (mm) | 150 |
| Diameter (mm) | 110 |
| Net weight (kg) | 7,49 |
| Width without foot plate (mm) | 110 |
| Depth without foot plate (mm) | 110 |
| Colour | black |
| Foot plate width (mm) | 150 |
| Foot plate depth (mm) | 150 |
| Foot plate height (mm) | 10 |
| Foot plate colour | black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | pre-assembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M10 x 70 mm |
| Tested to withstand force (Joule) | 1.500 J |
| Vehicle weight equivalent (kg) | 2.000 kg |
| Vehicle equivalent speed (km/h) | 4,4 km/h |
| Equivalent angle of impact | 90° |
| Deformation under maximal force (mm) | 250 |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 18,5 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFFS-SP-2 - Mobile slider plate for 110 mm posts
Mobile slider plate for 110 mm posts
| Material | Steel |
| Surface |
|
| Material thickness (mm) | 18 |
| Colour | black |
| Width (mm) | 255 |
| Height (mm) | 18 |
| Depth/Length (mm) | 165 |
| Net weight (kg) | 2,04 |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | pre-assembled |
| Number of mounting holes | 4 |
| Deformation under maximal force (mm) | see post |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU+TE - d-flexx JULIET endpost gate Ø 110x1200 mm
d-flexx JULIET endpost gate Ø 110x1200 mm
| Material | Polyethylene |
| Width (mm) | 225 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 225 |
| Installation width (mm) | 174 |
| Diameter (mm) | 110/200 |
| Net weight (kg) | 11,72 |
| Width without foot plate (mm) | 200 |
| Depth without foot plate (mm) | 200 |
| Colour | yellow - black |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | partly disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M10 x 70 mm |
| Deformation under maximal force (mm) | 250 |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU+TM - d-flexx JULIET midpost gate Ø 110x1200 mm
d-flexx JULIET midpost gate Ø 110x1200 mm
| Material | Polyethylene |
| Width (mm) | 619 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 225 |
| Installation width (mm) | 174 |
| Diameter (mm) | 110/200 |
| Net weight (kg) | 16,86 |
| Width without foot plate (mm) | 619 |
| Depth without foot plate (mm) | 200 |
| Colour | yellow - black |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | partly disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M10 x 70 mm |
| Deformation under maximal force (mm) | 250 |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU+TT - d-flexx JULIET T-post 90° Ø 110 x 1200 mm
d-flexx JULIET T-post 90° Ø 110 x 1200 mm
| Material | Polyethylene |
| Width (mm) | 1000 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 225 |
| Installation width (mm) | 110 |
| Diameter (mm) | 110/200 |
| Net weight (kg) | 16,7 |
| Width without foot plate (mm) | 1000 |
| Depth without foot plate (mm) | 200 |
| Colour | yellow - black |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | partly disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M10 x 70 mm |
| Deformation under maximal force (mm) | 250 |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU+TW90L - d-flexx JULIET L-cornerpost 90° Ø 110 x 1200 mm
d-flexx JULIET L-cornerpost 90° Ø 110 x 1200 mm
| Material | Polyethylene |
| Width (mm) | 619 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 225 |
| Installation width (mm) | 174 |
| Diameter (mm) | 100/200 |
| Net weight (kg) | 16,86 |
| Width without foot plate (mm) | 619 |
| Depth without foot plate (mm) | 200 |
| Colour | yellow - black |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | partly disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M10 x 70 mm |
| Deformation under maximal force (mm) | 250 |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU+TW90R - d-flexx JULIET R-cornerpost 90° Ø 110 x 1200 mm
d-flexx JULIET R-cornerpost 90° Ø 110 x 1200 mm
| Material | Polyethylene |
| Width (mm) | 619 |
| Height (mm) | 1200 |
| Depth/Length (mm) | 225 |
| Installation width (mm) | 174 |
| Diameter (mm) | 100/200 |
| Net weight (kg) | 16,86 |
| Width without foot plate (mm) | 619 |
| Depth without foot plate (mm) | 200 |
| Colour | yellow - black |
| Foot plate width (mm) | 225 |
| Foot plate depth (mm) | 225 |
| Foot plate height (mm) | 10 |
| Foot plate colour | black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | bolting |
| Delivery is | partly disassembled |
| Number of mounting holes | 4 |
| Fixing included | Concrete screw anchors M10 x 70 mm |
| Deformation under maximal force (mm) | 250 |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU-DA1000-A - d-flexx JULIET swingdoor 1000 mm
d-flexx JULIET swingdoor 1000 mm
| Material | Polyethylene |
| Width (mm) | 1063 |
| Height (mm) | 662 |
| Depth/Length (mm) | 110 |
| Installation width (mm) | 1173 |
| Net weight (kg) | 8,01 |
| Gross weight (kg) | 8,44 |
| Colour | yellow - black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | screw together |
| Delivery is | partly disassembled |
| Deformation under maximal force (mm) | see post |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU-DA1200-A - d-flexx JULIET swinggate 1200 mm
d-flexx JULIET swinggate 1200 mm
| Material | Polyethylene |
| Width (mm) | 1263 |
| Height (mm) | 662 |
| Depth/Length (mm) | 110 |
| Installation width (mm) | 1373 |
| Net weight (kg) | 8,48 |
| Gross weight (kg) | 8,88 |
| Colour | yellow - black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | screw together |
| Delivery is | partly disassembled |
| Deformation under maximal force (mm) | see post |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU-DA1500-A - d-flexx JULIET swinggate 1500 mm with wheel
d-flexx JULIET swinggate 1500 mm with wheel
| Material | Polyethylene |
| Width (mm) | 1563 |
| Height (mm) | 1191 |
| Depth/Length (mm) | 110 |
| Installation width (mm) | 1673 |
| Net weight (kg) | 12,59 |
| Colour | yellow - black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | screw together |
| Delivery is | partly disassembled |
| Deformation under maximal force (mm) | see post |
| Chemical Resistance | high-ISO/TR 10358 |
| Temperature Range | -10° up to +50° |
| CO2 / m³ | 20 kg |
| Recyclability | 100% |
| Warranty | 5 years |
| Brand | d-flexx |
| Eclass 10.1 Nr. | 22520390 |
| Eclass 11.1 Nr. | 22520390 |
| ETIM Class Code | EC004073 |
DFJU-DA1750-A - d-flexx JULIET swinggate 1750 mm with wheel
d-flexx JULIET swinggate 1750 mm with wheel
| Material | Polyethylene |
| Width (mm) | 1813 |
| Height (mm) | 1191 |
| Depth/Length (mm) | 110 |
| Installation width (mm) | 1923 |
| Net weight (kg) | 15,11 |
| Colour | yellow - black |
| Area of application | indoor and outdoor use |
| Mounting location | paved ground |
| Mounting | screw together |
| Delivery is | partly disassembled |
