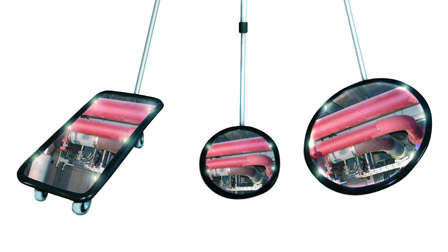

IS-Inspection Mirror

Your Safety – our functional guarantee of 5 years

The inspection mirror is ideal for maintenance and control of vehicles and machines. Areas that are difficult to access can be inspected and controlled easier. The mirror is easy to handle because of its very low weight and the attached wheels.

Material

The TÜV-certified inspection mirror is made of impact resistant acrylic. The mirror is fixed with silicon in a stable frame. The silicon avoids the penetration of water. Therefore the mirror can be used outside as well. The ball-bearing wheels made of steel are surrounded by soft Polyurethane and offer a high rolling comfort. The telescopic arm is made of anodized aluminium with a solid soft handle for excellent grip. The telescopic handle can be extended from 40 – 110 cm. The handle can be folded under the mirror for minimum storage.

Fixing

The inspection mirror is equipped with a 3 times extendable aluminium telescopic arm (40 – 110 cm).

Models and dimensions

Art. No.Mirror sizesMaterialWeight
IS 20 X 40 with wheels20 x 40 cm Acryl 1,6 kg
IS 25 roundø 25 cm Acryl 1,0 kg
IS 35 round with wheels ø 35 cm Acryl 1,4 kg
Art. No.Mirror sizesMaterialWeight
IS-L 20 X 40 with wheels and lighting 20 x 40 cm Acryl 1,6 kg
IS-L 25 round with lightingø 25 cm Acryl 1,0 kg
IS-L 35 round with wheels and lighting ø 35 cm Acryl 1,4 kg

Product video

Assembly video

IS-Inspection Mirror with lamps
