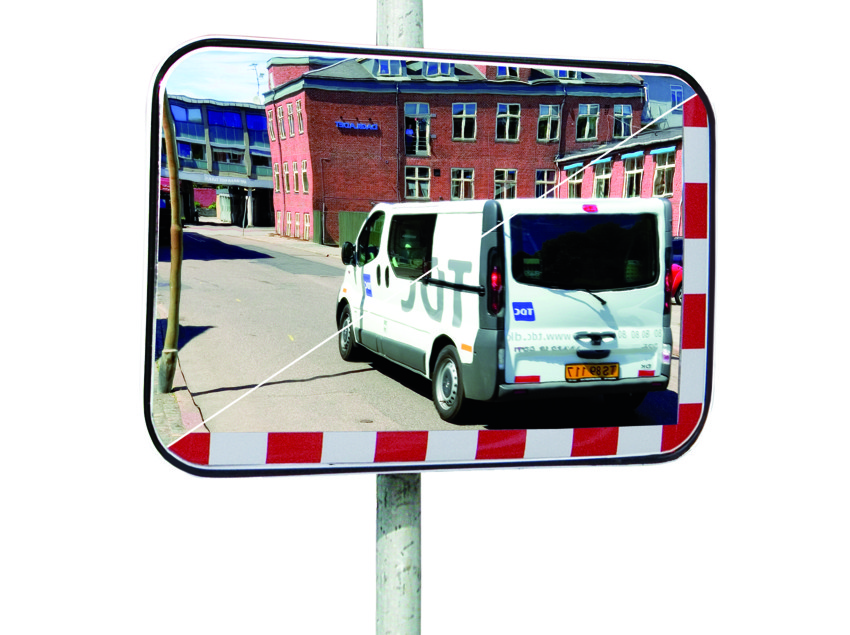

Multi-use Mirror UNI-SIG

Your Safety – our functional guarantee of 2 years

The economical UNI-SIG Mirror helps to increase the safety on roads, industrial sites, underground parkings, stores and private driveways. Due to the reflex foil on the mirror plate that increases the visibility, the risk of accidents gets minimized especially in bad weather conditions or darkness.

Material

The UNI-SIG mirror is made from Acrylic material (70 % more impact resistant than glass) and is equipped with reflex foil. Due to the robust material the mirror is suitable for long term outdoor use.

Fixing

Uni-Sig is delivered complete with attachment fittings for post mounting (Ø50-85 mm) or wall mounting. The fittings are made of strong electroplated galvanized steel that can be adjusted in two directions. Moreover the mirror is wind load-tested up to force 12 (hurricane > 117 km/h).

Models and dimensions

With reflectors

Article No.SizeMaterialWeightViewing distance
US Typ1 40 x 6040 x 60 cmAcrylic4,3 kg5 - 7m
US Typ1 60 x 8060 x 80 cmAcrylic5,9 kg9 - 15 m
US Typ1 80 x 10080 x 100 cmAcrylic9 kg15 - 22 m



Without reflectors

Article No.SizeMaterialWeightViewing distance
US TM-I 50ø 50 cmAcrylic3,8 kg5 - 7m
US TM-I 60ø 60 cmAcrylic4 kg9 - 15 m
US TM-I 40 x 6040 x 60 cmAcrylic4 kg5 - 7m
US TM-I 60 x 8060 x 80 cmAcrylic5,6 kg9 - 15 m
US TM-I 80 x 10080 x 100 cmAcrylic9,1 kg15 - 22 m

Assembly instructions & Videos

Video – assembly of the bracket :
