Crash Stop steel safety barrier Ø 48 mm

Description

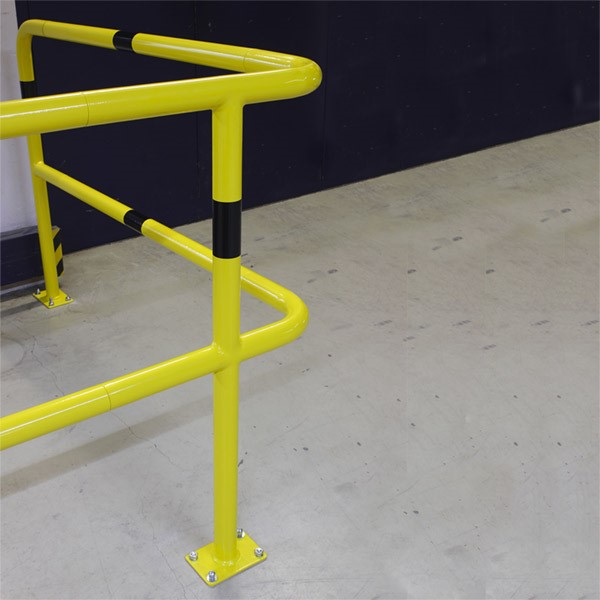

The safety barrier steel (2,9 mm wall thickness) with a pipe diameter of 48 mm is a good working solution to separate drive- and walkways. The yellow/black coloring ensures a high visibilty. With the different parts, incl. The unique variable post with a rotation angle of 270°, it is possible to create barriers in every conceivable angle. The single parts of this modular safety barrier do not have to get connected with screws, they get plugged. For mounting the system, there are just floor anchors needed (available on request).





Models and dimensions

Components steel safety barrier Ø 48 mm:

Art. No. Description Measures Diameter Weight
E-SG End post safety rail galvanised and yellow coated (similar to RAL 1023) with black foil, mounting plate 150 x 100 x 6 mm, 4 mounting holes Ø 10 mm Height 1000 mm x Length 250 mm 48,3 mm 5,4 kg
M-SG Middle post safety rail galvanised and yellow coated (similar to RAL 1023) with black foil, mounting plate 150 x 100 x 6 mm, 4 mounting holes Ø 10 mm Height 1000 mm x Length 500 mm 48,3 mm 7,4 kg
W-SG Corner post safety rail  galvanised and yellow coated (similar to RAL 1023) with black foil, mounting plate 150 x 100 x 6 mm, 4 mounting holes Ø 10 mm Height 1000 mm x 250/500 mm 48,3 mm 7,2 kg
VE-SG Variable corner post safety rail  galvanised and yellow coated (similar to RAL 1023) with black foil, mounting plate 150 x 100 x 6 mm, 4 mounting holes Ø 10 mm Height 1000 mm x 250 mm x 250 mm 60 mm 12,5 kg
RH-SG 50 Tubular safety rail galvanised and yellow coated (similar to RAL 1023) with black foil Length 500 mm 48,3 mm 1,6 kg
RH-SG 100 Tubular safety rail galvanised and yellow coated (similar to RAL 1023) with black foil Length 1000 mm 48,3 mm 3,2 kg
RH-SG 150 Tubular safety rail galvanised and yellow coated (similar to RAL 1023) with black foil Length 1500 mm 48,3 mm 4,8 kg
