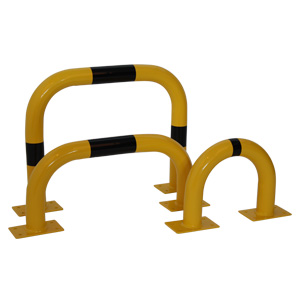

Hoop protection guard – Steel

Description

The steel impact protection products are made of high quality steel and enable an effective protection of inventory, machines and buildings – indoors and outdoors. Due to the yellow painting in combination with the black warning marks a high visibility is given to call attention on hazard areas. The beams and posts are made in diameter Ø 76 mm. The hoop guards are deformed by the newest bending technology – no welds! The bollards are available in diameter Ø 76 mm, 88,9 mm and 159 mm. The ground fixing is made by floor anchors that are available separately.

Models and dimensions

Article No. Size (Length, Width, Height) Diameter Size Base Plate Weight
Hoop protection guards
30-10 Height 350 mm, Width 375 mm 76 mm 120 x 195 mm 7,0 KG
30-20 Height 350 mm, Width 750 mm 76 mm 120 x 195 mm 8,5 KG
30-30 Height 350 mm, Width 1000 mm 76 mm 120 x 195 mm 10,0 KG
30-40 Height 600 mm, Width 750 mm 76 mm 120 x 195 mm 11,5 KG
30-50 Height 600 mm, Width 1000 mm 76 mm 120 x 195 mm 13,0 KG
30-60 Height 1200 mm, Width 750 mm 76 mm 120 x 195 mm 18,5 KG
30-70 Height 1200 mm, Width 1000 mm 76 mm 120 x 195 mm 20,0 KG
Hoop protection guards with underride guard
30-20-U    Height 350 mm, Width 750 mm   76 mm   120 x 195 mm   11,4 kg
30-30-U  Height 350 mm, Width 1000 mm   76 mm  120 x 195 mm  13,0 kg
30-40-U Height 600 mm, Width 750 mm   76 mm  120 x 195 mm   18,0 kg
30-50-U Height 600 mm, Width 1000 mm   76 mm  120 x 195 mm   24,0 kg
