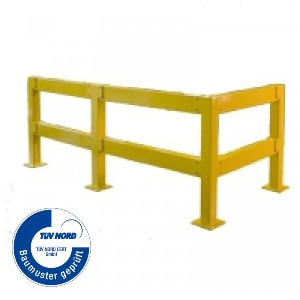

Safety Railing

Description

Galvanized and powder coated for outdoor use. TÜV certified (German safety and standards institution). These products are used for an optimal protection of plant and equipment, roads and machinery. Available in different dimensions and versions. Similar colour to RAL 1023 (traffic yellow). Posts: 10 x 10 cm with base plate 20 x 20 cm, available as end, middle and corner posts with height 100 cm or 50 cm. Beams: 80 x 140 mm in 100, 120, 135 and 150 cm length.

Custom-made solutions



Fixing material available on request.

Special construction available on request.



Models and dimensions

Components steel safety barrier, powder coated yellow (similar RAL 1023) for indoor use - Material:Steel

Art. No.DescriptionMeasuresWeight
B-50Beam for safety railing 140 x 80 mm, powder coatedLength 500 mm6,3 kg
B-75Beam for safety railing 140 x 80 mm, powder coated Length  750 mm9,5 kg
B-100Beam for safety railing 140 x 80 mm, powder coated Length  1000 mm11,0 kg
B-120Beam for safety railing 140 x 80 mm, powder coated Length  1200 mm11,2 kg
B-135Beam for safety railing 140 x 80 mm, powder coated Length  1350 mm13,8 kg
B-150Beam for safety railing 140 x 80 mm, powder coated Length 1500 mm14,2 kg
B-200Beam for safety railing 140 x 80 mm, powder coated Length 2000 mm22,0 kg
PE-100End post for safty railing  1000 mm, powder coated200 x 200 mm14,5 kg
PE-50End post for safty railing 500 mm, powder coated 200 x 200 mm8,5 kg
PM-100Middel post for safety railing 1000 mm, powder coated200 x 200 mm15,7 kg
PM-50Middel post for safety railing 500 mm, powder coated 200 x 200 mm9,8 kg
PW-100Corner post for safety railing 1000 mm, powder coated 200 x 200 mm15,7 kg
PW-50Corner post for safety railing 500 mm, powder coated 200 x 200 mm10,0 kg
P-100Single post for safety railing 1000 mm, powder coated Height 1000 mm12,6 KG
PW-XL-120Corner post XL Ø 159 mm for safety rails,  with black warning stripe, base plate 240 x 240 x 6 mm, 4 mounting holes Ø 12.5 mm, indoor useHeight 1200 mm28,09 kg

Components steel safety barrier, galvanized and powder coated yellow (similar RAL 1023) for outdoor and indoor use- Material:Steel

Article NoDescriptionMeasuresWeight
B+100Beam for Safety Railling 1000 mm, galvanized and powder coatedLength 1000 mm11,0 kg
B+120Beam for Safety Railling 1200 mm, galvanized and powder coatedLength 1200 mm13,5 kg
B+135Beam for Safety Railling 1350 mm, galvanized and powder coatedLength 1350 mm13,8 kg
B+150Beam for Safety Railling 1500 mm, galvanized and powder coatedLength 1500 mm14,2 kg
PE+100Endpost for Safety Railling 1000 mm, galvanized and powder coatedt200 x 200 mm13,0 kg
PE+50Endpost for Safety Railling 500 mm, galvanized and powder coatedt200 x 200 mm8,0 kg
PM+100Centre Post for Safety Railling 1000 mm, galvanized and powder coated200 x 200 mm15 kg
PM+50Centre Post for Safety Railling 500 mm, galvanized and powder coated200 x 200 mm9,8 kg
PW+100Corner Post for Safety Railling 1000 mm, galvanized and powder coated200 x 200 mm16,5 kg
PW+50Corner Post for Safety Railling 500 mm, galvanized and powder coated200 x 200 mm10,0 kg
P+100Single post for safety railings 1000 mm, galvanised and powder coated (similar to RAL 1023), base plate 200 x 200 x 3 mm, 4 mounting holes Ø 10 mm for outdoor use.Height 1000 mm12,6 KG
PW-XL+120Corner post XL Ø 159 mm for safety rails, height 1200 mm, 28.09 Kg -galvanised and coated yellow (similar to RAL 1023) with black warning stripe, base plate 240 x 240 x 6 mm, 4 mounting holes Ø 12.5 mm, outdoor useHeight 1200 mm28,09 kg
WSG+Wall bracket for safety rails 110 x 120 x 60 mm, 1.54 kg - galvanised and yellow coated (similar to RAL 1023), mounting plate 110 x 120 x 6 mm, 2 mounting holes Ø 12.5 mm, without fixing materials, indoor and outdoor useLength 110 mm, Width 120 mm, Height 60 mm1,54 kg

Magnetic retractable barrier for safety barrier and others

Article NoDescriptionMeasuresMeasuresMeasuresWeight
MGB-GSRetractable barrier 50 mm wide, yellow/black magnetic end with yellow/black acrylic holder, without label, with magnetic fixing, yellow/black diagonal stripes, belt length 4600 mm, 3 fixation magnets each with 90 N holding force, holder 118 x 143 x 85 mm - Material:PolyethyleneLength 118 mm, Width 143 mm, Height 85 mmGurtbandWidth / Width of belt / Largeur de bande 50 mm, GurtLength / Belt length / Longueur de la bande 4600 mm-1 kg
MGB-RWRetractable barrier 50 mm wide, red/white magnetic end with red/black acrylic holder, without label, with magnetic fixing, red/white diagonal stripes, belt length 4600 mm, 3 fixation magnets each with 90 N holding force, holder 118 x 143 x 85 mm - Material:PolyethyleneLength 118 mm, Width 143 mm, Height 85 mmGurtbandWidth / Width of belt / Largeur de bande 50 mm, GurtLength / Belt length / Longueur de la bande 4600 mm-1 kg
TOMA+ZIHPot magnet with pins and internal thread M5, with hook, total height 48 mm, pot height 8 mm, Ø total 32 mm, Ø pin 10 mm, weight approx. 52 g, tolerance +/-0.1 mm, material magnet NdFeB (alloy from neodymium, iron, boron), magnetisation / level N38, coating NiCuNi (nickel), adhesive force approx. 30 kg, max. operation temperature 80⁰C- Material:MetallHeight 48 mm32 mm-52 g
